1,000-gallon black storage tank built for safe potable water storage. Manufactured by Snyder from virgin linear polyethylene (HDPE) rated to handle liquids up to 8.3 pounds per gallon. Dual FDA and NSF 61 certified — one of the few tanks approved for both potable water and food-grade liquid storage.

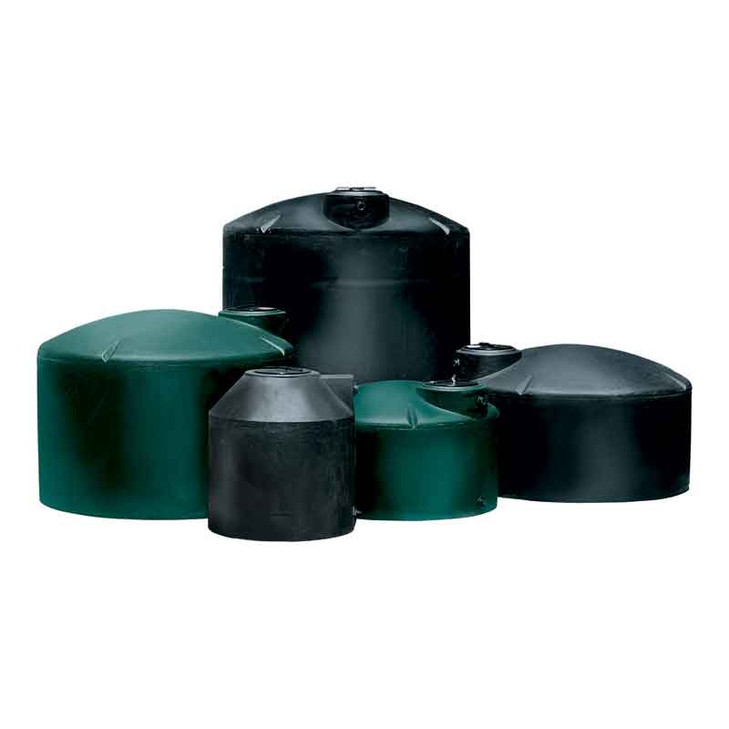

The 1000 Gallon Black Vertical Water Storage Tank is designed for farms, ranches, small businesses, and residential properties needing reliable mid-range liquid storage. The 1,000-gallon capacity hits the sweet spot for safe potable water storage — large enough to be genuinely useful, compact enough to install without heavy equipment or specialized foundations.
Constructed from virgin linear polyethylene (HDPE) using a single-piece rotational molding process that eliminates seams, weld lines, and potential leak points. Rated for liquids at 1.0 specific gravity (8.3 pounds per gallon), this tank is optimized for water storage with wall thickness calibrated for standard water weight. UV-resistant black pigmentation provides maximum outdoor durability and inhibits algae growth in stored liquids. Maximum operating temperature is 120° F / 48° C, with UV stabilizers compounded directly into the resin for outdoor service life.
This tank measures 65 inches tall with a 72-inch diameter, requiring 28.3 square feet of level ground. Empty weight is 160 pounds. At full capacity with a 1.0 SG liquid, expect approximately 8,500 pounds on the foundation. Requires a reinforced concrete pad designed for the full loaded weight, with at least 6 inches of compacted gravel sub-base. Place on a firm, level surface free of rocks or sharp objects that could damage the tank bottom. Ensure adequate ventilation if stored chemicals produce vapors.
Factory-installed fittings include a 2" PP Stainless Steel Bolted Fitting outlet and a 1-1/2" PP Female NPT Bulkhead Fitting inlet, both with NPT threading for direct connection to standard schedule 40 or schedule 80 PVC, polypropylene, or stainless steel plumbing. The 18" Threaded Vented Manway lid opening provides ample access for interior inspection, cleaning, and installation of float switches, level sensors, or submersible pumps. Use schedule 80 PVC or stainless steel bulkhead fittings on the 2" NPT connections. Install a full-port ball valve and consider a Y-strainer to protect downstream equipment.
Snyder Industries has been a leader in polyethylene tank manufacturing for over 60 years. Their Lincoln, Nebraska facility produces tanks using advanced rotational molding processes with rigorous quality control at every step. Backed by a 3-year manufacturer warranty from Snyder against defects in materials and workmanship under normal use conditions. FDA approved for contact with potable water and food-grade liquids. NSF/ANSI 61 certified for potable water system components. Every tank is inspected before it leaves the production floor — and we inspect it again before it ships from our facility.
- 1,000-gallon capacity — sized for safe potable water storage
- Constructed from virgin linear polyethylene (HDPE) with 1.0 specific gravity rating — handles liquids up to 8.3 lbs/gal
- 65" tall x 72" diameter — compact vertical footprint
- 160 lbs empty, approximately 8,500 lbs when full at rated specific gravity
- 2" PP Stainless Steel Bolted Fitting NPT outlet fitting — factory installed and leak-tested
- 1-1/2" PP Female NPT Bulkhead Fitting NPT inlet fitting included
- 18" Threaded Vented Manway lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- NSF/ANSI 61 certified for drinking water system components
- 3 Year Warranty from Snyder against manufacturing defects
- UV-resistant black pigmentation provides maximum outdoor durability and inhibits algae growth in stored liquids
- Rated for continuous service up to 120° F / 48° C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Snyder — a leading name in rotomolded polyethylene tanks
- Place on a firm, level surface free of rocks or sharp objects that could damage the tank bottom. Ensure adequate ventilation if stored chemicals produce vapors
- Ships via LTL freight — allow 2-3 weeks for delivery. Lift gate and residential delivery available at additional cost
This is an atmospheric water storage tank. Not designed to be pressurized. For pressurized applications, consult OneSource Plastics at 866-418-1777.
