Polyethylene Resin Selection: HDPE vs XLPE vs Modified Polyolefin Decision Tree

The plastic tank market gives you three resin families to choose from: high-density polyethylene (HDPE), cross-linked polyethylene (XLPE), and proprietary modified polyolefin formulations. The marketing language flattens them into "polyethylene" so the buyer focuses on capacity and price. The engineering reality is that picking the wrong resin family for your service multiplies replacement cost 3-5x over a 20-year capital horizon. This guide walks the decision tree.

The decision is determined by four axes: chemistry, specific gravity rating, service temperature, and warranty exposure. We cite ASTM D1693 (ESCR test method), ASTM D1998 (tank design specification), ASTM D2837 (hydrostatic design basis), and reference real Norwesco, Snyder, Chem-Tainer, Enduraplas, and Bushman SKUs from the OneSource Plastics catalog. No fabricated chemistry compatibility claims; the chemical compatibility database is published separately at /chemical-compatibility/.

What "HDPE" Actually Means in a Tank Spec

"HDPE" on a tank data plate is shorthand for high-density polyethylene resin, typically MDPE or HDPE in the density range 0.940-0.965 g/cc, formulated with UV stabilizer (carbon black for darkest tanks, hindered amine light stabilizers for white and natural tanks). The ASTM cell classification on the resin TDS will look something like PE445530E (per ASTM D3350).

• Density: 0.940-0.965 g/cc. Higher density = more crystalline = higher modulus = stiffer wall.
• Melt index: typically 0.3-2.0 g/10min for tank-grade resin. Lower MI = higher molecular weight = better ESCR.
• ESCR (ASTM D1693, condition B): tank-grade HDPE typically 600-1000+ hours F50.
• Design hoop stress (ASTM D1998 Section 6.4.1): 600 psi at 73F.
• Maximum SG rating: typically 1.5 SG for standard HDPE tanks. Some heavy-wall HDPE rated to 1.7 SG.
• Maximum service temperature: 100-120F continuous; intermittent excursions to 140F acceptable per most manufacturer warranties.

HDPE is the workhorse of the tank market. Norwesco's vertical water storage line, the Bushman residential potable line, and the Enduraplas TLV-series all default to HDPE formulations. SKU examples: N-41464 (100 gal vertical black water), EP-TLV02100BK (2,100 gal vertical black HDPE), BM-WW-1500-GL-NAT (1,500 gal natural-white HDPE).

What "XLPE" Actually Means

Cross-linked polyethylene starts as an HDPE base and gets additional thermal or peroxide-initiated cross-linking during the rotational molding process. The chemical bonds between polymer chains form a three-dimensional network rather than separate chains. Practical implications:

• ESCR: effectively unlimited under standard ASTM D1693 conditions. The cross-link network resists crack propagation.
• Maximum SG rating: 1.9 SG is the standard XLPE rating; some manufacturers specify up to 2.0 SG.
• Maximum service temperature: XLPE retains structural properties to 140F continuous; intermittent excursions higher.
• Chemistry compatibility: significantly broader than HDPE. Sodium hypochlorite 12.5%, sulfuric acid 50%, sodium hydroxide 50% all show 3-5x service life on XLPE vs HDPE.
• Cost premium: typically 30-60% over equivalent HDPE tank.
• Repair limitations: XLPE cannot be re-melted or thermally welded. Patch repairs require mechanical fasteners or epoxy.

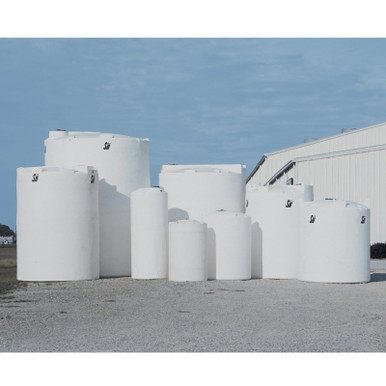

Snyder Industries pioneered industrial XLPE chemical tanks. The Snyder XLPE catalog includes 1,550 gallon double-wall (SII-5490000N42), 5,000 and 6,000 gallon vertical XLPE for caustic and bleach service. Norwesco offers XLPE in select chemical-rated SKUs; Chem-Tainer specializes in cone-bottom XLPE for chemistry mixing.

What "Modified Polyolefin" or "Premium Polyethylene" Means

Manufacturer-proprietary blends that bridge HDPE and XLPE performance. These typically use:

• Higher molecular weight HDPE base (lower melt index)
• Reactive modifiers that create some intermediate cross-link density
• Enhanced UV and antioxidant package
• Sometimes nucleating agents that improve crystalline structure

Marketing names vary by manufacturer. The technical claim is improved ESCR vs standard HDPE without the full cost or repair limitation of true XLPE. Verify by reading the resin TDS, not the marketing brochure: ESCR rating in hours F50, max SG, max temperature.

Bushman Equator Industries promotes a "Premium Polyethylene" line for residential potable; some Enduraplas SKUs reference enhanced HDPE formulations for hauling and hot-water-truck service. The decision criterion is whether the resin TDS shows materially better numbers than standard HDPE at a price point below XLPE.

Decision Tree: Pick the Right Resin Family

The flowchart, in operating order:

Step 1: Is the chemistry on the HDPE-incompatible list?

HDPE-incompatible (or marginally compatible) chemistry includes: sodium hypochlorite above 5% concentration, sulfuric acid above 50%, hydrofluoric acid at any concentration, ferric chloride, hydrogen peroxide above 35%, organic solvents (especially aromatics like toluene). For any of these, default to XLPE.

The OneSource chemical compatibility database (/chemical-compatibility/) lists 309 chemicals with HDPE/XLPE ratings sourced from Enduraplas and Snyder published charts. Cross-reference your specific chemistry and concentration before specifying.

Step 2: Is your fluid SG above 1.5?

If yes, HDPE is out (max rating 1.5 SG on most product). XLPE rated 1.9 SG covers fluids up to roughly:

• Sulfuric acid 93%: SG 1.84 — fits XLPE
• Sodium hydroxide 50%: SG 1.53 — fits XLPE comfortably
• Brine saturated: SG 1.2 — fits HDPE
• Ferric chloride 40%: SG 1.42 — fits HDPE on SG basis but chemistry pushes to XLPE
• Liquid lime slurry: SG 1.3-1.5 — fits HDPE on SG basis

Step 3: Does service temperature exceed 100F continuous?

HDPE warranty exclusions typically cap continuous operation at 100F (some at 120F). For sustained 100-140F service, XLPE retains structural margin. Common cases: hot-water-supply tanks downstream of solar thermal, exothermic process tanks (hypochlorite generation, neutralization), outdoor tanks in hot climates with dark color absorbing solar.

Step 4: Does the duty cycle generate sustained tensile stress at the wall?

Standard static storage applies hydrostatic pressure that drops to zero when empty. Cyclic fill-drain service (multiple cycles per day) sustains the wall at fatigue-relevant stress. ESCR matters more for cyclic service than for static. XLPE is the safe default for cyclic chemistry.

Step 5: Is the application potable water?

NSF/ANSI 61 certification is the requirement. Both HDPE and XLPE are available in NSF 61 listings; XLPE is rare for potable because the chemistry/temperature drivers don't apply. Pick HDPE NSF 61 for potable: SKU examples Norwesco N-41527 (300 gal natural-white) and similar potable-rated SKUs from Bushman.

Step 6: Is repair / modification needed in service?

HDPE can be thermally welded, hot-air patched, or hot-plate fusion repaired. XLPE cannot. If the tank is likely to need additional fittings drilled or patches in service, HDPE wins on repairability. Most chemistry tanks should never be drilled in service (warranty void), so this rarely tilts the decision.

Side-by-Side Resin Comparison

Property	Standard HDPE	Premium Polyolefin	XLPE
Density (g/cc)	0.940-0.955	0.945-0.960	0.945-0.960 base
ESCR (D1693 cond B, F50)	600-1000 hr	1500-3000 hr	unlimited (cross-linked)
Max SG rating	1.5	1.5-1.7	1.9
Max continuous temp	100-120F	120-130F	140F
Sodium hypochlorite 12.5% life	2-4 yr	3-6 yr	7-12 yr
Sulfuric acid 93% rating	not recommended	not recommended	approved (1.9 SG)
NaOH 50% life	10-15 yr	12-18 yr	15-25 yr
Diesel / petroleum	approved	approved	approved
DEF (urea 32.5%)	approved (NSF 61)	approved	approved (rare)
Field-weldable / repairable	yes (hot-plate, extrusion)	limited	no (mechanical only)
Cost vs HDPE baseline	1.0x	1.1-1.3x	1.3-1.6x
Typical warranty	3 years	3-5 years	5 years

Worked Examples Across Five Common Service Cases

Case 1: 2,500-gallon agricultural water storage, outdoor, southern US

Service: water, full UV, 15-35C cyclic, low chemistry stress. Standard HDPE black tank with UV stabilization. Expected life 15-25 years. SKU: EP-TLV02100BK (2,100 gal vertical black, $1,858.99 list) or N-41467 (1,500 gal black, similar tier). XLPE adds cost without service-life benefit because chemistry stress is absent.

Case 2: 1,500-gallon sodium hypochlorite 12.5% feed tank, pretreatment

Service: oxidative chemistry, indoor, 18-25C, cyclic dosing. HDPE life 2-4 years; XLPE life 7-12 years. The XLPE premium of $2,000-4,000 over HDPE pays back inside one replacement cycle. Specify XLPE.

Case 3: 300-gallon NSF 61 potable water, indoor mechanical room

Service: potable water, climate-controlled, no UV. NSF 61 HDPE is the answer. Norwesco N-41527 natural-white 300-gallon class is the typical SKU. XLPE NSF 61 exists but the premium isn't justified by the service.

Case 4: 1,000-gallon underground multi-use storage

Service: underground, 12-15C constant, no UV. HDPE ribbed-wall underground (Norwesco N-41734 or N-41820 IAPMO-approved) is the standard. XLPE is rarely available in underground configurations because the buried environment is benign and the cost premium isn't earned.

Case 5: 1,550-gallon double-wall caustic 50% NaOH, outdoor

Service: aggressive chemistry, requires secondary containment, high SG (1.53). Snyder XLPE double-wall (SII-5490000N42, $9,299.99 list) is the engineered answer. The double-wall provides containment without separate berm; XLPE handles the SG and chemistry; outdoor rating is part of the manufacturer formulation. Single-wall HDPE in this service would fail inside 3-5 years.

Common Resin-Selection Mistakes

Mistake 1: Assuming all "polyethylene" is equivalent

The data plate says polyethylene; the resin TDS says PE445530E or PE445550E or cross-linked. The TDS is what determines service life. Always request the resin TDS for chemistry tanks and read the ESCR + max temperature lines.

Mistake 2: Over-specifying XLPE for benign service

Outdoor agricultural water, indoor potable, underground cisterns, septic — none of these need XLPE. Standard HDPE delivers 20-30+ year life under those conditions. The XLPE premium is wasted capital.

Mistake 3: Under-specifying for chemistry edge cases

Sodium hypochlorite degradation accelerates with temperature, with concentration, and with UV. A 12.5% bleach feed tank in a hot Phoenix outdoor location on standard HDPE will fail at 12-18 months, not the 2-4 years quoted under nominal indoor conditions. Specify XLPE plus white or light color to reflect heat for outdoor hypochlorite.

Mistake 4: Confusing UV color with chemistry rating

Black tanks resist UV better but absorb solar heat. White and natural tanks reflect heat but show UV chalking faster. Color is independent of chemistry rating; pick color for thermal management, pick resin for chemistry compatibility.

Mistake 5: Skipping the warranty exclusions

Manufacturer warranty terms exclude chemistry outside published compatibility list, exceeded SG, exceeded max temperature, UV exposure on non-UV-rated tanks. Reading the exclusions tells you whether your application is inside or outside the warranty envelope, which is the cleanest service-life predictor available.

Decision Quick-Reference

Service	Resin Pick	Reason
Outdoor water (residential / agricultural)	HDPE	No chemistry stress; UV-stabilized standard product is sufficient
Indoor potable water	HDPE NSF 61	NSF certification matters more than resin family; HDPE NSF 61 is widely available
Underground storage (water, septic, multi-use)	HDPE ribbed-wall	Buried environment is benign; XLPE rarely available in underground configurations
DEF (urea 32.5%)	HDPE NSF 61	DEF is mild; NSF 61 prevents contamination; standard product works
Sodium hypochlorite 12.5%	XLPE	3-5x service life vs HDPE; pays back in one replacement cycle
Sodium hydroxide 50%	XLPE	SG 1.53 above HDPE rating; XLPE 1.9 SG covers it
Sulfuric acid 93%	XLPE	SG 1.84 + chemistry both push past HDPE limits
Brine (saturated)	HDPE	SG 1.2 within HDPE rating; chemistry compatible
Diesel / used motor oil	HDPE double-wall	Petroleum is HDPE-compatible; SPCC drives double-wall (e.g., SII-5740102N95703)
Hot water (above 120F continuous)	XLPE or specialty FRP	HDPE thermal limit exceeded; XLPE retains margin to 140F
