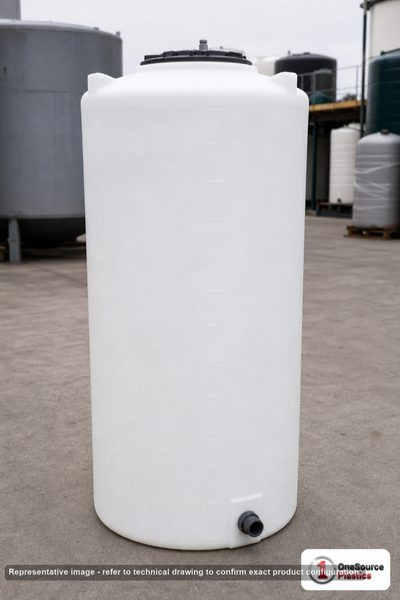

Tank Foundation Guide: Gravel, Concrete, and What Your Tank Actually Needs
Tank Foundation Guide: Gravel, Concrete, and What Your Tank Actually Needs
The foundation under your tank is more important than the tank itself. A premium tank on a bad foundation will fail before a basic tank on a good foundation. This guide covers what to put under your tank, how to build it, and the mistakes that cause the most expensive failures.
Understanding the technical fundamentals behind polyethylene tank construction, ratings, and specifications helps you make better purchasing decisions and avoid costly mistakes. This guide explains what the numbers actually mean and how they affect real-world performance.
Why Foundations Matter
A full 1,000-gallon tank at 1.5 SG weighs over 12,500 pounds — concentrated on a footprint roughly 5 feet in diameter. That is 640 pounds per square foot. A full 5,000-gallon tank exceeds 62,000 pounds. This weight must be distributed evenly across the tank bottom. An uneven foundation creates stress concentrations that fatigue the polyethylene over thousands of fill cycles, eventually causing cracks, bulging, or catastrophic failure.
Gravel Pad Foundations
Compacted gravel is the most common tank foundation material. It is inexpensive, drains well, and provides a firm, level surface when properly installed. For a gravel pad: excavate to a depth of 4-6 inches below grade. Install a geotextile fabric layer to prevent soil mixing with gravel. Fill with 3/4-inch clean crushed stone (not round river rock — it doesn't compact). Compact in 2-inch lifts with a plate compactor. Level to within 1/4 inch across the full diameter. Extend the pad at least 6 inches beyond the tank edge on all sides.
Concrete Slab Foundations
Concrete is required for large tanks (3,000+ gallons), chemical storage where spill containment is mandated, and any installation where regulatory compliance requires it. Minimum 4-inch thickness for tanks under 3,000 gallons, 6 inches for larger tanks. Use 4,000 PSI concrete with fiber mesh or #4 rebar on 18-inch centers. Pour on a 4-inch compacted gravel base. Broom finish the surface — a smooth finish can trap water under the tank. Level to within 1/8 inch across the diameter.
Common Foundation Mistakes
Setting a tank on bare dirt (it erodes and settles unevenly). Using sand (it shifts and creates point loads). Placing a tank on a wooden deck or platform not rated for the weight. Failing to check level before filling. Allowing water to pool around the base. Using round river rock instead of crushed stone (it never compacts properly). Ignoring the weight of the liquid — an empty tank sits fine on almost anything, but 10,000 pounds of water exposes every foundation flaw.
Related Products
Key Takeaways
- Always verify your liquid's specific gravity before selecting a tank — exceeding the rated SG is the most common cause of premature tank failure
- Polyethylene tanks are chemically resistant to most substances but NOT all — always check the compatibility chart for your specific chemical
- Proper installation is more important than the tank itself — a premium tank on a bad foundation will fail before a basic tank on a good foundation
- UV stabilizers extend life but don't eliminate UV damage — shade structures are cheap insurance for tanks in full-sun locations
- Temperature matters — polyethylene softens above 120°F and becomes brittle below -40°F. Plan for your climate extremes.
Questions about tank specifications? Call (866) 418-1777 — we speak fluent tank and can translate technical specs into practical guidance for your application.
Understanding Polyethylene Tank Construction
Every polyethylene tank in our catalog is manufactured through rotational molding — a process that creates a seamless, one-piece structure from powdered HDPE resin. The mold rotates on two axes simultaneously while heated, distributing molten resin evenly across all interior surfaces. The result is a tank with no seams, no weld lines, and no potential leak points. This seamless construction is the primary advantage of rotomolded tanks over welded or fabricated alternatives — joints are where tanks fail, and rotomolded tanks have no joints.
The resin itself is not generic plastic. It is a specially formulated compound that includes UV stabilizers (to prevent sun degradation), antioxidants (to prevent thermal degradation during processing and service), and pigments. For potable water applications, the resin meets FDA 21 CFR 177.1520 requirements for food-contact materials. These additives are compounded directly into the resin — not applied as surface coatings — which means the protection extends through the full wall thickness and lasts the life of the tank.
