290-gallon natural white storage tank built for heavy-duty industrial chemical containment. Manufactured by Snyder from virgin linear polyethylene (HDPE) rated to handle liquids up to 15.8 pounds per gallon. Dual FDA and NSF 61 certified — one of the few tanks approved for both potable water and food-grade liquid storage.
The 290 Gallon Heavy Duty Vertical Storage Tank is designed for farms, ranches, small businesses, and residential properties needing reliable mid-range liquid storage. The 290-gallon capacity hits the sweet spot for heavy-duty industrial chemical containment — large enough to be genuinely useful, compact enough to install without heavy equipment or specialized foundations.
Constructed from virgin linear polyethylene (HDPE) using a single-piece rotational molding process that eliminates seams, weld lines, and potential leak points. The 1.9 specific gravity rating means this tank is built with significantly heavier wall sections than a standard water tank — necessary to safely contain liquids weighing up to 15.8 pounds per gallon. That extra wall thickness is not optional when you are storing aggressive industrial chemicals. Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler. Maximum operating temperature is 120° F / 48° C, with UV stabilizers compounded directly into the resin for outdoor service life.

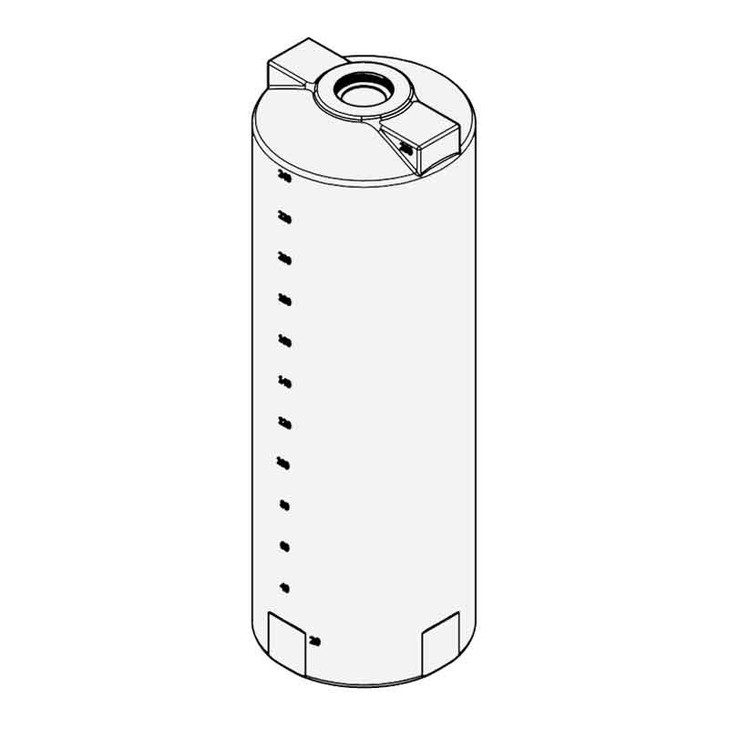

This tank measures 72 inches tall with a 36-inch diameter, requiring 7.1 square feet of level ground. Empty weight is 80 pounds. At full capacity with a 1.9 SG liquid, expect approximately 4,675 pounds on the foundation. Requires a reinforced concrete pad designed for the full loaded weight, with at least 6 inches of compacted gravel sub-base. Place on a firm, level surface free of rocks or sharp objects that could damage the tank bottom. Ensure adequate ventilation if stored chemicals produce vapors.
Comes equipped with a 2" PP Female NPT Bulkhead Fitting NPT outlet fitting installed at the factory. No inlet fitting is included — drill and install a bulkhead fitting at your preferred height for your specific plumbing layout. The 18" Threaded Vented Manway lid opening provides ample access for interior inspection, cleaning, and installation of float switches, level sensors, or submersible pumps. We recommend schedule 80 PVC or polypropylene fittings on the 2" NPT outlet with a ball valve for positive shutoff.
Snyder Industries has been a leader in polyethylene tank manufacturing for over 60 years. Their Lincoln, Nebraska facility produces tanks using advanced rotational molding processes with rigorous quality control at every step. Backed by a 3-year manufacturer warranty from Snyder against defects in materials and workmanship under normal use conditions. FDA approved for contact with potable water and food-grade liquids. NSF/ANSI 61 certified for potable water system components. Every tank is inspected before it leaves the production floor — and we inspect it again before it ships from our facility.
- 290-gallon capacity — sized for heavy-duty industrial chemical containment
- Constructed from virgin linear polyethylene (HDPE) with 1.9 specific gravity rating — handles liquids up to 15.8 lbs/gal
- 72" tall x 36" diameter — compact vertical footprint
- 80 lbs empty, approximately 4,675 lbs when full at rated specific gravity
- 2" PP Female NPT Bulkhead Fitting NPT outlet fitting — factory installed and leak-tested
- 18" Threaded Vented Manway lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- NSF/ANSI 61 certified for drinking water system components
- 3 Year Warranty from Snyder against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120° F / 48° C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Snyder — a leading name in rotomolded polyethylene tanks
- Place on a firm, level surface free of rocks or sharp objects that could damage the tank bottom. Ensure adequate ventilation if stored chemicals produce vapors
- Ships via LTL freight on a pallet — residential delivery with lift gate available
