Biodiesel Production and Storage: Tank Selection and Installation Guide
Biodiesel Production and Storage
Small-scale biodiesel production converts waste vegetable oil into fuel using a transesterification reaction. The process requires storage for feedstock oil, methanol, catalyst (sodium hydroxide or potassium hydroxide), wash water, and finished biodiesel. Polyethylene tanks work well for most steps, but material compatibility must be verified for each chemical in the process.
Why Tank Selection Matters for Biodiesel Production and Storage
Not every polyethylene tank works for every application. The wrong tank can mean chemical incompatibility, premature failure, regulatory violations, or simply wasted money on features you don't need. This guide walks you through the specific requirements for biodiesel production and storage and matches you with the right tank from our catalog.
Key Requirements
- Chemical Compatibility — Polyethylene is compatible with biodiesel, vegetable oil, and most wash solutions. Methanol requires HDPE specifically.
- Drainage — The glycerin byproduct settles to the bottom after the reaction. Cone-bottom tanks allow clean separation.
- Multiple Tanks — A complete biodiesel setup needs 4-6 tanks: feedstock, reactor, wash, settling, finished fuel, and glycerin collection.
- Ventilation — Methanol vapor is flammable and toxic. Process tanks must be vented to a safe location.
Recommended Tank Types
Cone Bottom Tanks
Reaction and settling tanks for biodiesel processing. Cone bottoms allow glycerin drainage without disturbing the fuel layer.
Shop Cone Bottom Tanks

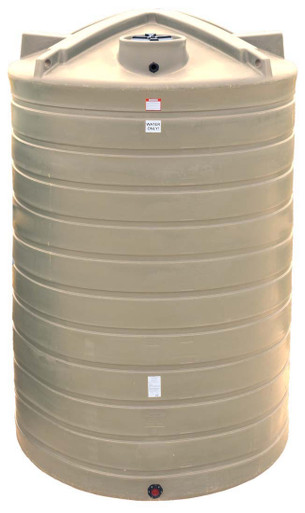

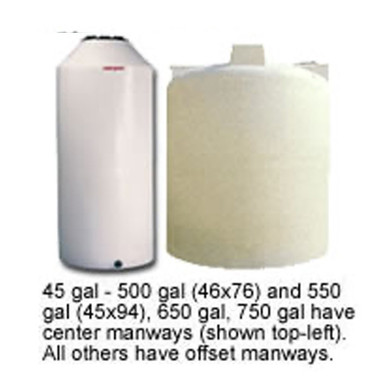

Vertical Chemical Storage
Feedstock oil storage and finished biodiesel holding tanks.
Shop Vertical Chemical Storage
Installation Considerations for Biodiesel Production and Storage
Fire Safety
Methanol is extremely flammable with an invisible flame. Store methanol in a dedicated area away from ignition sources, with proper grounding to prevent static discharge. Never heat methanol in an open container. Use a closed mixing system with proper venting.
Waste Management
Glycerin byproduct from biodiesel production contains methanol and catalyst residue. It cannot be dumped down a drain or on the ground. Glycerin can be sold, composted (after neutralization), or used as a boiler fuel, but it must be handled as a regulated waste until purified.
Sizing Your Tank
Tank sizing for biodiesel production and storage depends on your usage rate, refill frequency, and peak demand. The general formula is:
Required Capacity = Daily Usage × Days Between Refills × 1.2 Safety Factor
The 1.2 safety factor accounts for peak usage days, delivery delays, and the fact that you should never run a tank completely dry (the sediment at the bottom can clog fittings and pumps). If your application has seasonal peaks, size for peak demand rather than average demand.
Maintenance Specific to Biodiesel Production and Storage
Standard polyethylene tank maintenance applies: quarterly visual inspection, fitting checks, foundation verification, and vent maintenance. For biodiesel production and storage specifically, pay extra attention to:
- Chemical compatibility: If you change chemicals or suppliers, verify the new formulation is compatible with polyethylene and within the tank's specific gravity rating before adding it to the tank.
- Residue buildup: Some liquids leave residue on tank walls over time. Annual interior inspection and cleaning prevents buildup from affecting liquid quality or reducing effective capacity.
- Fitting condition: Applications with frequent connect/disconnect cycles wear fittings faster. Replace threaded fittings at the first sign of thread damage — a cross-threaded or stripped fitting is a leak waiting to happen.
- Secondary containment: If required by your local regulations, inspect containment berms, dikes, or trays during each tank inspection. Secondary containment only works if it's intact.
Frequently Asked Questions
What size tank do I need for biodiesel production and storage?
Start with your daily usage rate and multiply by the number of days between refills, then add 20% for safety margin. For example, if you use 50 gallons per day and refill weekly, you need: 50 × 7 × 1.2 = 420 gallons minimum. Round up to the next standard size — in this case, 500 gallons.
Do I need a chemical-rated tank or a water-only tank?
If you are storing anything other than clean water, choose a chemical-rated tank (SG 1.5 or higher). The thicker walls and higher material rating provide safety margin for chemical exposure, and you won't need to replace the tank if you switch liquids later. Water-only tanks save money but limit your future options.
What permits do I need?
Permit requirements depend on your location, the tank size, and what you are storing. Water storage typically requires no permits below 5,000 gallons. Chemical storage often requires permits, secondary containment, and fire marshal review. Agricultural exemptions may apply for farm chemical storage. Always check with your local building department and fire authority before installation.
Can I install the tank myself?
For tanks under 500 gallons, DIY installation is straightforward if you follow proper site preparation and plumbing practices. For larger tanks, we recommend professional installation — the weight involved creates safety risks, and improper placement can void the warranty. Either way, a proper foundation is non-negotiable.
How do I handle delivery and placement?
Small tanks (under 200 gallons) ship via UPS/FedEx ground. Mid-size tanks (200-1000 gallons) ship LTL on a pallet — you'll need a forklift or request liftgate delivery. Large tanks (1000+ gallons) ship via flatbed and require equipment for unloading. Call us to coordinate delivery logistics for your specific site conditions.
Need expert guidance on tank selection for biodiesel production and storage? Call (866) 418-1777 — we'll help you size, select, and plan your installation.
