20000 Gallon Vertical Liquid Storage Tank

Where it goes

Nearly fourteen feet across and just over twenty feet tall, this tank is bought by people who would otherwise be looking at a bolted steel or a fiberglass tank: dairies and feedlots, fertilizer and crop protection dealers, food and process plants, municipalities and rural fire districts, and farms that store a season of water at a time. Full of water the floor carries 166800 lb of liquid plus the tank over a circle 165 inches across, so the pad is a designed foundation: level, continuous, carrying the whole floor with nothing past the edge, worked out with our concrete pad sizing guide and your engineer. Twenty feet of height means a fixed ladder or platform for the manway and a wind and tie-down conversation with your engineer. For a fire reserve, the fire water reservoir design guide covers sizing discipline and freeze protection; for rainwater and reuse, the industrial water reuse topology guide shows where a tank this size sits in the train. The complete buyers guide to this tank goes deeper, and the tank sizing calculator and tank sizing guide settle the volume first.

Openings and fittings

1. Outlet. A 3 inch 316 stainless steel female NPT bolted fitting, factory installed low in the side wall. Your 3 inch valve threads straight in. Support the valve and the first run of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 22 inch threaded vented manway on top, 242 inches up: fill point, vent and a wide opening for a pump drop, a float or a cleaning crew's gear.

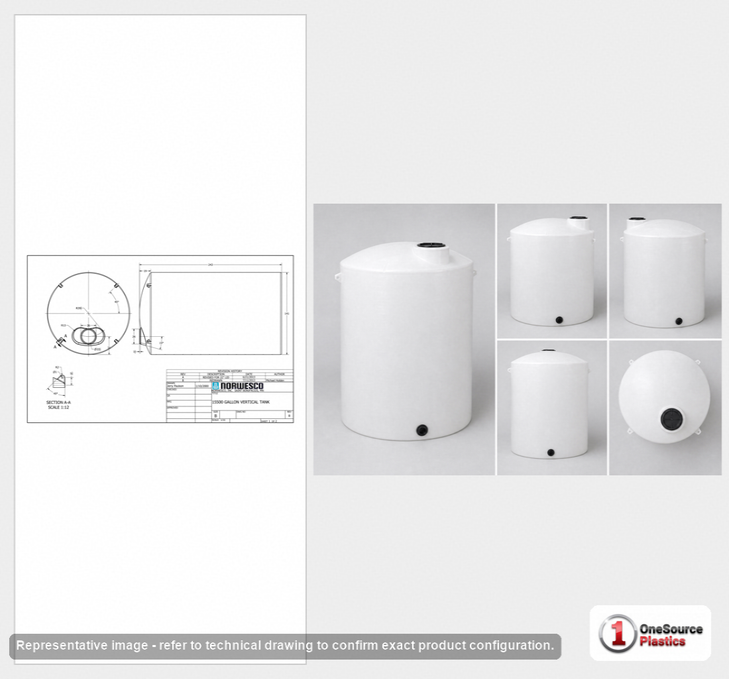

3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and manway position for your layout.
4. Liquid. Water and most liquid fertilizers sit inside the 1.5 specific gravity rating. For heavier liquids Norwesco makes a 1.9 rated version of this shell, listed below. For anything other than water or a common fertilizer, tell us what it is so we can check it against both the polyethylene and the stainless fitting.

Sizes nearby

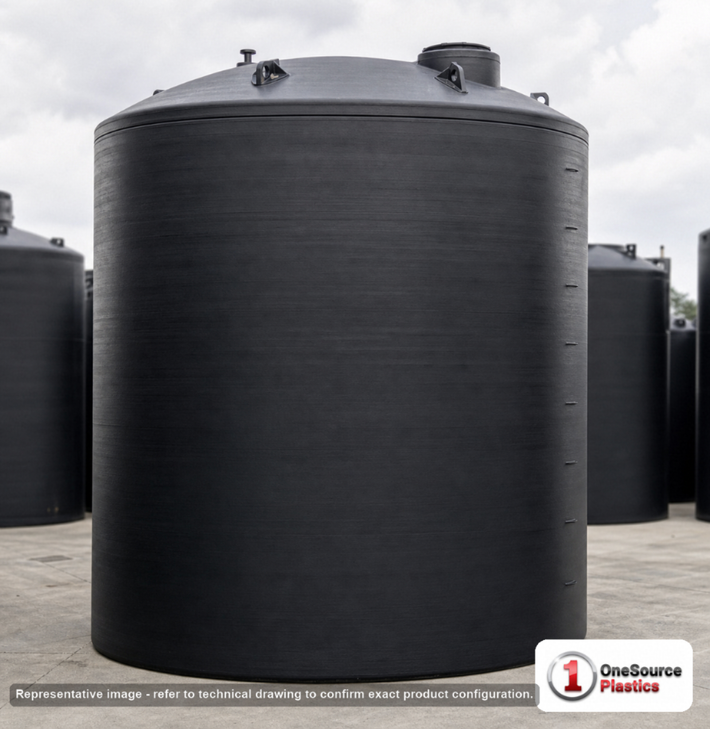

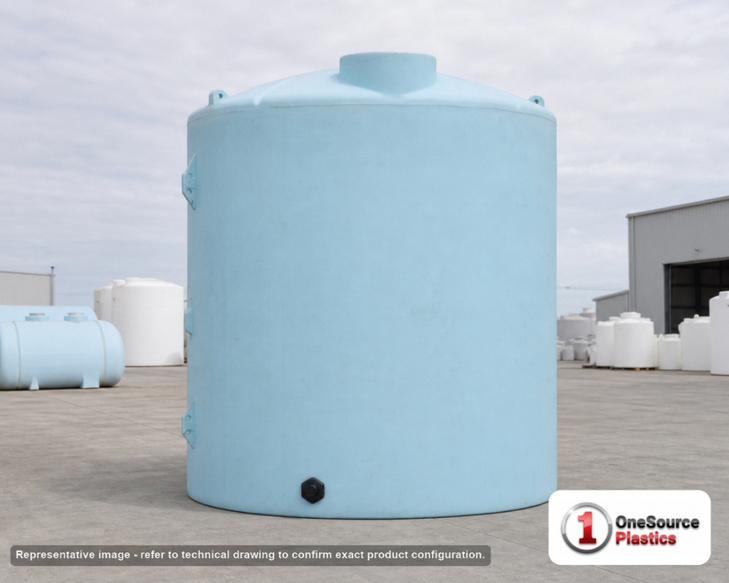

Same shell in black, which keeps light and algae out of stored water: the 20000 gallon black vertical tank 44344. Same shell rated for liquids up to 1.9 specific gravity: the 20000 gallon blue heavy duty vertical tank 43827 and the 20000 gallon black heavy duty vertical tank 44334. The next size down, narrower and about as tall: the 15500 gallon black heavy duty vertical tank 43943B. Beyond twenty thousand gallons the answer is two tanks manifolded together, and we are glad to lay that out with you. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships as oversize freight (Norwesco's freight class is OVS) from the nearest of Norwesco's Albertville, Alabama, St. Bonifacius, Minnesota and Washington Court House, Ohio plants, 242 by 165 by 165 inches lying down on the truck and 5016 lb. It travels on an open trailer and needs lifting equipment rated for the weight, a crew with straps, and room to stand a twenty foot tank up beside its pad; most sites bring in a crane or a telehandler for the lift. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check the part number against 43825 on the bill of lading, look over the shell and the stainless fitting for transit damage before you sign, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
