Tank Discharge Metering Selection: Turbine Versus Coriolis Mass-Flow Versus Magnetic Flow Meter Versus Positive-Displacement, Accuracy Bands, Chemistry Compatibility, Pressure-Drop Cost, Maintenance Burden, and Total-Cost Decision Framework
The polyethylene tank discharge line carries the chemistry from storage into the downstream process, the truck loadout connection, the dispensing cabinet, or the metered transfer to a customer. The flow meter installed in the discharge line measures the quantity moved during each transfer event and produces the operational record that feeds inventory accounting, custody-transfer billing, batch-record consumption logs, and regulatory inventory filings. Meter selection is therefore a decision with multi-decade operational consequences: the wrong meter creates persistent measurement uncertainty, the right meter delivers reliable data with minimal maintenance burden. Four principal meter technologies cover the polyethylene tank discharge space: turbine flow meters, Coriolis mass-flow meters, magnetic flow meters, and positive-displacement meters. Each has a different physical principle, a different accuracy envelope, a different chemistry compatibility profile, a different pressure-drop cost, and a different lifetime maintenance pattern. This article walks the four technologies, the selection-criteria framework, and the procurement implications.
The discussion is grounded in API MPMS Chapter 5 flow measurement practice, AGA reports on natural-gas measurement (parallel principles for liquid metering), and field experience across the 5-brand polyethylene tank catalog (Norwesco, Snyder, Chem-Tainer, Enduraplas, Bushman). List pricing on each tank product page; LTL freight quoted to your ZIP via the freight estimator or by phone at 866-418-1777.
1. Turbine Flow Meter Principles and Application Envelope
The turbine flow meter is a long-established technology widely used on tank discharge lines. Understanding the principles, the strengths, and the limitations is the foundation of meter selection:
- The turbine-rotor physical principle. A rotor with helical blades is suspended in the flow path on bearings. The flowing liquid drives the rotor at an angular velocity proportional to the volumetric flow rate. A pickoff sensor (magnetic, optical, or RF) detects the blade passages and converts them to an electrical pulse train. The pulse rate is proportional to flow; pulse count integrates to volume.
- The K-factor calibration. Each turbine meter has a K-factor (pulses per unit volume) that is established by calibration against a master meter or a gravimetric standard. The K-factor varies slightly with viscosity and Reynolds number; calibration covers the operating envelope of the application. Field K-factor verification is performed periodically against a prover or a calibrated reference vessel.
- The accuracy and linearity envelope. A turbine meter typically achieves 0.5 to 1.0 percent accuracy across a 10:1 turndown ratio. Higher-accuracy turbines achieve 0.25 percent over a more limited range. The accuracy is best in the middle of the flow range; it degrades at very low flows where rotor friction is significant and at very high flows where mechanical wear becomes severe.
- The viscosity sensitivity. Turbine meters are most accurate at low to moderate viscosity (water-like, dilute aqueous chemistry). High-viscosity service (polymers, syrups, heavy oils) requires special-design viscosity-compensated turbines or moves to a different meter technology. Variable-viscosity service (chemistry that changes with temperature) introduces compensation complexity.
- The flow-conditioning requirement. Turbine meters require a uniform velocity profile entering the rotor. The standard practice specifies 10 pipe diameters of straight pipe upstream and 5 diameters downstream, or a flow conditioner installed upstream. Sites that ignore the upstream-piping requirement see degraded accuracy and elevated wear.
- The mechanical-wear lifecycle. The rotor and bearings wear over service life. Suspended solids, abrasive particles, and chemistry-attack on the bearing material accelerate wear. The K-factor drifts as the rotor ages. Periodic K-factor verification catches the drift; eventual rotor replacement restores original performance.
- Reference 1000 gallon tank for turbine application. Reference N-40152 1000 gallon Norwesco vertical as a typical mid-volume tank where a turbine meter is well suited. Discharge flows in the 10 to 50 GPM range, water-like chemistry, and moderate accuracy requirement (1 percent typical) align with the turbine sweet spot.
The turbine is the workhorse meter for typical tank discharge applications: aqueous chemistry, moderate accuracy, modest investment. The mechanical wear and the chemistry sensitivity are the principal limitations.
2. Coriolis Mass-Flow Meter Principles and Application Envelope
The Coriolis mass-flow meter is the high-accuracy, no-moving-parts option for tank discharge metering. The technology is sophisticated and the cost is significant; the application envelope is correspondingly demanding:
- The Coriolis-tube physical principle. One or two flow tubes (U-shaped or straight, depending on design) are mechanically vibrated at a controlled frequency. The flowing liquid through the tubes creates a Coriolis force that distorts the tube vibration pattern. The distortion is measured by sensors at multiple positions along the tube. The distortion is directly proportional to the mass flow rate; tube vibration frequency relates to the liquid density.
- The mass-flow direct measurement. Coriolis meters measure mass flow directly. Volumetric flow is calculated from mass flow divided by density (also measured by the same sensor). This dual-output capability eliminates the temperature and pressure compensation that volumetric meters require for custody-transfer applications.
- The accuracy envelope. Coriolis meters achieve 0.1 to 0.25 percent of mass flow accuracy across a 100:1 or wider turndown ratio. The accuracy is essentially independent of viscosity, Reynolds number, or flow profile. The accuracy is the highest of any meter technology in routine industrial use.
- The pressure-drop cost. Coriolis meters introduce 5 to 15 PSI pressure drop at full flow depending on the model and pipe size. The pressure drop costs energy on continuous-flow applications and may require re-sizing pumps for retrofit installations. The pressure-drop cost should be evaluated against the accuracy benefit.
- The chemistry compatibility. The wetted parts of a Coriolis meter are the flow tubes (typically 316L stainless steel, sometimes Hastelloy or other exotic alloys for severe chemistry) and the flange seals. The wetted-parts material is selected for the application chemistry. Most aqueous and benign-chemistry applications use 316L; aggressive chemistries may require alloy upgrades.
- The installation orientation flexibility. Most Coriolis meters can be installed in any orientation (horizontal, vertical, inclined). The orientation insensitivity simplifies installation in space-constrained sites. Bubble-prone applications may benefit from vertical-flow-up orientation to keep the tubes liquid-full.
- Reference 5000 gallon tank for Coriolis application. Reference N-40164 5000 gallon Norwesco vertical as a tank where Coriolis metering is well suited. Custody-transfer accuracy, hazardous chemistry, or critical batch-record applications justify the Coriolis investment on a 5000 gallon tank.
The Coriolis meter is the premium option: highest accuracy, no moving parts, mass-and-density measurement. The cost (10x to 30x a turbine of equivalent size) is the principal barrier; applications that justify the cost see the meter perform reliably for 15 to 30 years.
3. Magnetic Flow Meter Principles and Application Envelope
The magnetic flow meter (magmeter) is the choice for conductive liquids where neither moving parts nor pressure drop are acceptable:
- The Faraday-induction physical principle. A magnetic field is applied across the flow tube perpendicular to the flow direction. As the conductive liquid flows through the field, an electric voltage is induced perpendicular to both the field and the flow per Faraday's law of electromagnetic induction. The voltage is measured by electrodes mounted in the tube wall and is directly proportional to the volumetric flow rate.
- The conductivity requirement. Magmeters require the liquid to have a minimum electrical conductivity, typically 5 microsiemens per centimeter or higher. Most aqueous chemistries, even dilute ones, exceed this threshold. Pure water (deionized or distilled), most hydrocarbons, and most organic solvents fall below the threshold and cannot be metered with magmeters.
- The accuracy envelope. Magmeters achieve 0.2 to 0.5 percent accuracy across a 50:1 turndown ratio. The accuracy is essentially independent of viscosity, density, or temperature within the operating envelope. Modern pulsed-DC magmeters achieve excellent zero stability and long calibration intervals.
- The zero pressure-drop advantage. The magmeter flow tube has the same internal diameter as the connecting piping. There are no internal obstructions; the pressure drop is essentially zero (slightly above the equivalent length of straight pipe). This is a significant advantage over turbine and Coriolis meters in pressure-limited applications.
- The chemistry compatibility through liner selection. The flow-tube wetted surface is a non-conductive liner (PTFE, polyurethane, hard rubber, ceramic) selected for the application chemistry. PTFE liners cover most chemistry classes including strong acids and hydroxides; ceramic liners handle abrasive slurries; hard rubber liners suit mining and water-treatment applications. The electrodes are typically 316L stainless or Hastelloy.
- The installation requirement for full-pipe operation. Magmeters require the flow tube to be liquid-full at all times. Air gaps cause the induced voltage to drop and accuracy to collapse. Installation in horizontal pipe with the electrodes at 9 and 3 o'clock prevents air entrapment; vertical-flow-up orientation guarantees full-pipe operation.
- Reference 2500 gallon tank for magmeter application. Reference N-41524 2500 gallon Norwesco vertical as a typical tank where a magmeter is well suited for water and aqueous chemistry service. The combination of moderate accuracy, zero pressure-drop, and no moving parts produces a low-maintenance metering installation.
The magmeter is the workhorse for aqueous and conductive-chemistry tank discharge metering. The conductivity threshold limits applicability; for liquids above the threshold the magmeter is often the most operationally favorable choice.
4. Positive-Displacement Meter Principles and Application Envelope
The positive-displacement (PD) meter measures volume by counting discrete chamber displacements. The technology is mature and produces accurate readings across a wide viscosity range:
- The chamber-displacement physical principle. A mechanical chamber of known volume fills and empties as the liquid flows through. Chamber-emptying events are counted by a mechanical or electronic register. Each event represents a known volume increment; the total count integrates to volume. Common chamber designs include rotary-vane, oval-gear, nutating-disc, and reciprocating-piston.
- The viscosity-tolerant accuracy. PD meters maintain accuracy across a wider viscosity range than turbine meters. Heavy oils, syrups, and polymer solutions can be metered with PD meters where turbines would lose accuracy. The accuracy is typically 0.2 to 0.5 percent across a 10:1 to 50:1 turndown.
- The mechanical-wear lifecycle. The chamber walls and the moving elements wear over service life. The wear opens internal clearances and allows liquid to bypass the chamber count, biasing the reading low. Periodic calibration verification and component replacement maintain accuracy.
- The pressure-drop cost. PD meters typically introduce 3 to 10 PSI pressure drop at full flow. The drop is moderate compared to Coriolis but significantly higher than magmeter. The pressure cost is acceptable in most gravity-and-pump applications.
- The contamination sensitivity. Suspended solids, particulate, and grit can jam the chamber or score the chamber walls. PD meters in solids-bearing service require strainer protection upstream. Clean liquid service is the favorable application; raw-water or slurry service is generally unsuitable.
- The custody-transfer history. PD meters have a long history in custody-transfer applications (motor-fuel dispensing, lubricant transfer, food-grade ingredient billing). The legal-metrology approval base is well-established; many jurisdictions accept PD meters for trade-billing applications without additional approval.
- The dispensing-application advantage. PD meters are well-suited to small-volume dispensing where each draw is measured for billing. Vehicle-fuel pumps, small-batch chemical dispensing, and lubricant cabinets often use PD meters. The accuracy at small volumes (a few gallons) is excellent; turbine meters are less accurate in this range.
The PD meter occupies the niche of viscosity-tolerant, custody-transfer-approved metering. It is mature, well-understood, and reliable in its application envelope.
5. Accuracy Band Comparison Across the Four Technologies
The accuracy bands of the four meter technologies overlap but are distinguishable. The application accuracy requirement drives the technology selection:
- Inventory-tracking accuracy class. Inventory tracking for internal accounting typically requires 1 to 2 percent accuracy. Turbine meters comfortably meet this requirement at moderate cost. PD meters and magmeters also meet it. Coriolis is overkill for pure inventory tracking; the accuracy investment does not produce inventory-management benefit.
- Custody-transfer accuracy class. Custody-transfer between supplier and customer typically requires 0.25 to 0.5 percent accuracy with traceability to national standards. Coriolis and high-accuracy turbine meters meet this requirement; PD meters meet it in some applications. Magmeters are at the edge of the accuracy band; specific implementations are accepted for water-service custody transfer but not generally for chemical custody transfer.
- Batch-record accuracy class. Pharmaceutical and food-grade batch-record accuracy typically requires 0.5 percent or better with documented calibration traceability. Coriolis is the dominant choice in this class; high-accuracy turbines are accepted in some applications; magmeters are accepted for water and CIP service.
- Process-control accuracy class. Continuous-process flow control typically requires 1 percent repeatability rather than absolute accuracy. Repeatability is the consistency of repeated measurements under the same conditions; absolute accuracy includes the calibration alignment to a true value. All four technologies achieve 1 percent repeatability under stable conditions; the absolute-accuracy differences are less important.
- Regulatory-reporting accuracy class. Some regulatory regimes (EPA emissions reporting, state hazardous-chemistry inventory) specify accuracy requirements that must be met by the metering. The regulatory specification should be checked against meter accuracy; failure to meet the specification can trigger enforcement.
- The accuracy-claim verification. Manufacturer accuracy claims are typically based on factory calibration with reference fluid. Field accuracy may degrade due to installation effects, fluid property differences, or component wear. Periodic field verification (prover, master meter, gravimetric standard) confirms the field performance against the manufacturer claim.
The accuracy-band analysis directly informs the technology selection. Sites that map their applications to the appropriate band avoid both under-investment (insufficient accuracy) and over-investment (paying for accuracy that produces no operational benefit).
6. Chemistry Compatibility Matrix
Chemistry compatibility is determined by the wetted-parts materials. Each technology has materials options; the application chemistry constrains the choice:
- Aqueous chemistry (water, dilute acid, dilute base). All four technologies handle aqueous chemistry with standard materials. Turbine: 316 stainless rotor, ceramic bearing. Coriolis: 316L tubes. Magmeter: PTFE liner, 316L electrodes. PD: stainless or aluminum chamber. The technology selection is driven by accuracy, cost, and operations rather than chemistry.
- Strong oxidizer chemistry (concentrated nitric acid, hypochlorite at strength, peroxide). Materials selection becomes more constrained. Coriolis with Hastelloy or alloy tubes; magmeter with PTFE liner and Hastelloy electrodes; turbine with corrosion-resistant rotor and bearing. PD meters are generally less suitable due to the wetted parts and seals.
- Hydrocarbon chemistry (diesel, motor oil, lubricant). Magmeters require minimum conductivity that hydrocarbons do not provide; magmeters are excluded. Turbine, Coriolis, and PD all serve. PD has the historical advantage in fuel and lubricant custody transfer; Coriolis is increasingly common in larger installations.
- High-temperature chemistry (above 200°F continuous). The high-temperature service constrains the seal and gasket materials in all four technologies. Specific high-temperature variants exist for each. The compatibility verification is done against the specific manufacturer specification rather than generic materials.
- Slurry and abrasive chemistry. Turbines and PD meters are excluded by the abrasive solids attacking the moving parts. Magmeters with ceramic or hard-rubber liners are the workhorse for slurry service. Coriolis with appropriate tube materials can serve some slurry applications.
- Pure water (deionized, distilled, ultrapure). Magmeters are excluded by the conductivity requirement. Turbine, Coriolis, and PD all serve. Coriolis is preferred in pharmaceutical pure-water service for its accuracy and no-moving-parts attribute.
The chemistry-compatibility matrix is the first filter on technology selection. After applying the chemistry filter the remaining candidates are evaluated on accuracy, cost, and operations.
7. Maintenance Burden and Total Cost of Ownership
The lifetime cost of a metering installation includes the purchase, the installation, the calibration, the maintenance, and the eventual replacement. The technology choice strongly affects the lifetime cost profile:
- The turbine maintenance burden. Turbines require periodic K-factor verification (annual is typical), bearing replacement (every 3 to 5 years on continuous service), and rotor replacement after significant wear. Maintenance cost over a 15-year service life is comparable to 0.5 to 1.0 times the original purchase cost.
- The Coriolis maintenance burden. Coriolis meters have no moving parts to wear. Calibration verification is performed periodically (annual to bi-annual is typical); the verification can often be performed in-place without flow interruption using the meter's self-diagnostics. Maintenance cost over a 15-year service life is often less than 0.2 times the purchase cost.
- The magmeter maintenance burden. Magmeters have no moving parts. The principal maintenance items are electrode cleaning (when fouling deposits accumulate) and liner inspection. Calibration is verified periodically; the verification is non-intrusive in most installations. Maintenance cost over a 15-year service life is typically 0.1 to 0.3 times the purchase cost.
- The PD maintenance burden. PD meters wear progressively from chamber-element friction. Periodic calibration verification, eventual chamber rebuilding, and seal replacement are all required. Maintenance cost over a 15-year service life can equal or exceed the original purchase cost.
- The total-cost-of-ownership comparison. Adding purchase plus 15-year maintenance: Coriolis is typically 1.2x its purchase cost; magmeter is 1.2x to 1.4x; turbine is 1.5x to 2.0x; PD is 1.8x to 2.5x. The relative ranking on TCO often differs from the relative ranking on purchase cost; the TCO ranking should drive the decision rather than the purchase price alone.
- The replacement-versus-rebuild decision. At end of useful life, technologies differ in replace-vs-rebuild economics. Turbines are often replaced rather than rebuilt; Coriolis has very long service life (20+ years typical); magmeters are often replaced when liner damage or electrode failure occurs; PD meters are commonly rebuilt multiple times across a single installation.
- Reference 100 gallon tank for small-scale TCO. Reference N-44800 100 gallon Norwesco doorway tank as a small-scale application where the TCO calculation may favor a simpler turbine or PD meter. The cost of a Coriolis is hard to justify on a small tank with low-stakes metering.
The TCO analysis transforms the metering decision from purchase-price comparison to lifetime-economics comparison. Many sites buy the wrong meter because they evaluate purchase cost in isolation; the maintenance and replacement costs over service life often dominate the lifetime economics.
8. Procurement Implications and Tank Selection
The metering selection has procurement implications at the tank-specification stage:
- Discharge fitting size and placement for meter installation. The tank discharge fitting size should be specified to match the planned meter. Common meter sizes are 1, 1.5, 2, 3, and 4 inch; the discharge fitting size should match. Discharge placement should support straight-pipe runs upstream of the meter for flow conditioning.
- Discharge piping support for meter weight. Coriolis meters and large magmeters are heavy. The tank discharge piping must support the meter weight without imposing stress on the tank fitting. Pipe-stand support, expansion joints, and isolation valves are specified along with the meter.
- Pressure rating compatibility. The meter pressure rating must exceed the operating pressure including any surge or relief conditions. Polyethylene tanks are typically low-pressure (atmospheric to a few PSI hydrostatic); meter pressure ratings are normally well above this requirement.
- Electrical-classification consideration. If the chemistry is hazardous-classified, the meter electronics must meet the electrical-classification requirements (Class I Division 1 or Division 2, intrinsically safe, explosion-proof). The classification flows from the chemistry hazard through the area-classification analysis.
- Calibration-port provisions. Some installations include a calibration-tap fitting upstream or downstream of the meter for in-place calibration verification. The tap is specified at procurement and designed into the piping.
- Strainer protection for solids-sensitive meters. Turbine and PD meters benefit from strainer protection upstream. The strainer adds pressure drop and a maintenance task (periodic cleaning) but extends the meter service life. The strainer specification matches the meter.
The procurement-stage decisions enable or constrain the metering selection over the tank service life. Sites that integrate tank specification with metering plan produce installations that perform their metering function with minimal field rework.
9. The Discharge Metering Engineering Conclusion
The discharge meter is the operational interface between the polyethylene tank and the downstream accounting, billing, and process-record systems. Four meter technologies cover the application space: turbine for moderate-accuracy, moderate-cost service; Coriolis for high-accuracy, demanding chemistry; magmeter for conductive aqueous service with no pressure drop; PD for viscosity-tolerant or custody-transfer service. The selection follows from the accuracy-band requirement, the chemistry compatibility, the pressure-drop tolerance, and the lifetime-cost analysis. Procurement-stage decisions on discharge fitting size, piping support, and pressure rating enable the metering installation to perform across the tank service life. Sites that match the meter to the application produce metering installations that deliver decades of reliable measurement; sites that pick the wrong meter pay the cost in maintenance burden, accuracy drift, and eventual replacement.
OneSource Plastics ships polyethylene tanks across the 5-brand catalog (Norwesco, Snyder, Chem-Tainer, Enduraplas, Bushman) with discharge-fitting and accessory configurations matched to common metering installations. Tank specification for any specific application is performed by the customer site engineer with reference to the chemistry, the accuracy requirement, and the metering technology selection. List pricing on each product page; LTL freight to your ZIP via the freight estimator or by phone at 866-418-1777.

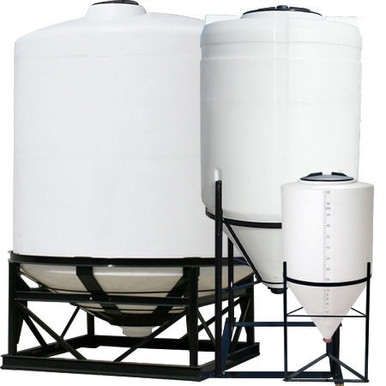

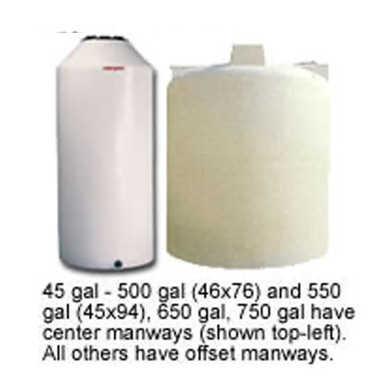

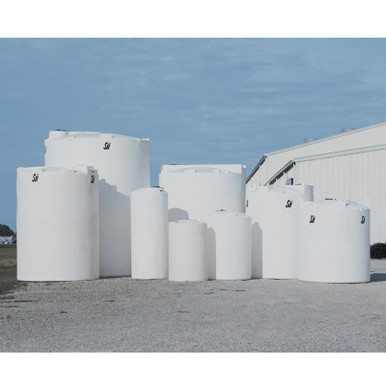

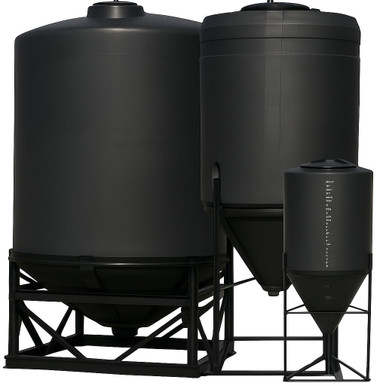

Recommended Tanks for This Guide
