1250 Gallon Vertical Liquid Storage Tank

Where it fits

Buy this shape when you want more than a thousand gallons without a bigger pad: a water reserve beside a shop or a packing shed, a rainwater store on the gable end of a barn, a supply tank along a fence line. Check the height first. At 114 inches the top of the tank is nine and a half feet up, which clears most barn and shop ceilings but not a standard eave, and the manway is up there with it, so plan a ladder or a fill line plumbed to the top and fit the float switch or level gauge before the tank goes into service. The 60 inch base needs a flat, level, continuous surface; because it carries 15638 lb at full rating, a concrete pad is the right foundation. Our concrete pad sizing guide covers how to size the slab. A tank this tall should be strapped or anchored where wind is a factor, especially while it is empty. The complete buyers guide to this tank goes deeper.

What goes in it

Water, rainwater, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles are the normal loads. Keep the contents below 120 F and below 1.5 times the weight of water. Heavier liquids belong in the heavy duty version of this same shell, rated to 1.9 specific gravity, which Norwesco makes in blue and in black. For a rural fire reserve, the fire-water reservoir design guide explains where a polyethylene tank sits in a private fire protection stack. For grey water and rainwater collection, the industrial water reuse topology guide covers arranging several tanks by water quality. Size the volume with the tank sizing calculator or the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Your valve, camlock or hose adapter threads straight into it. Turn the tank so the outlet faces the pipe run before the first fill, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hose or a pump, to drop a float in and to get a brush inside. The vent lets air out as you fill and in as you draw down; never plug it.

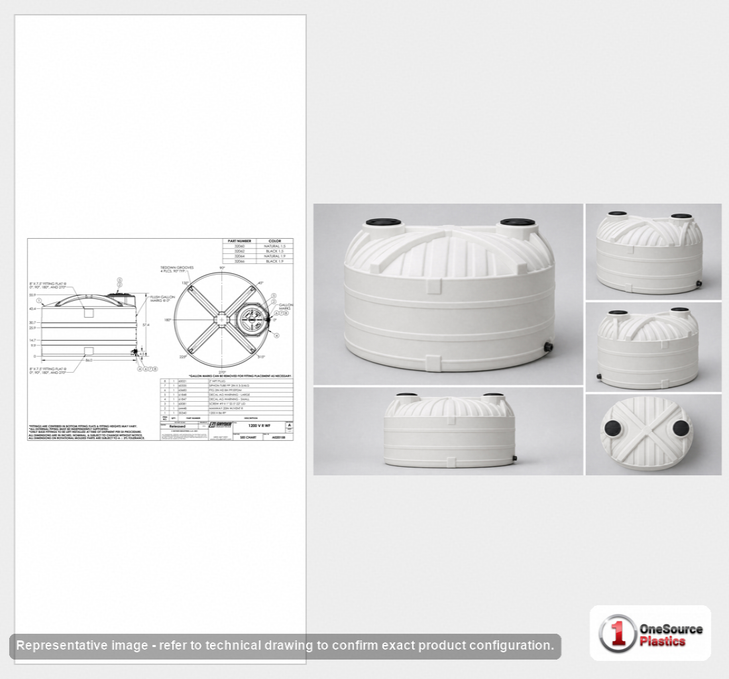

3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position for pipe planning.

The same shell in other versions, and sizes nearby

Same shell in black, for water that will stand a long time: the 1250 gallon black vertical tank, 44356B; the colour swatches above the price switch between them. For denser liquids, the 1250 gallon heavy duty tank, N-44358 and the 1250 gallon black heavy duty tank, 44358B are the same shell with a heavier wall. A step down, wide and low, is the 1100 gallon black heavy duty tank, 42330; a step up is the 1295 gallon vertical tank, N-44968, a wide shell for sites with height limits.

Shipping and receiving

The tank ships by LTL freight, lying down on the trailer at 114 by 60 by 60 inches with a ship weight of 255 lb, from Norwesco's Fairfield, Texas plant. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Two or three people can stand it up at delivery. At the tailgate, check the part number against 44356 on the bill of lading, look over the full length of the shell for transit damage before signing, and fill it with water the first time so any problem shows up with something harmless inside.

Questions before you order? Call 866-418-1777.
