At 8.25 inches tall, the 14W is a tank you install under things - under a bed platform, under a dinette, under the floor of a van where headroom is measured in fractions. The 24 x 15.5 inch footprint spreads 11 gallons out low and wide, keeping the weight of the water down at floor level where it belongs.
This is the Water / Waste Holding Tank series, Ronco's dual-role molding: specify fresh-water fittings and you get a potable tank in FDA-compliant polyethylene; specify waste fittings and the identical shell serves as a gray tank for the shower or galley drain. Either way it starts life as the same 8 lb blank - light enough to hold overhead with one hand while you check clearances. Full, plan for about 92 lb of water at 8.34 lb per gallon.
Taller bay? The RV water tanks category has the same capacity in cube form, and the RV holding tanks cover the waste side in every size class. Marine builders use these same moldings - see boat tanks.
Rotomolded in Tustin, California, continuously since 1974. Fittings are installed per order, spin-weld or threaded, at the locations you mark - print the drawing below or place them on the click-to-place planner. OneSource Plastics is an authorized Ronco Plastics dealer.

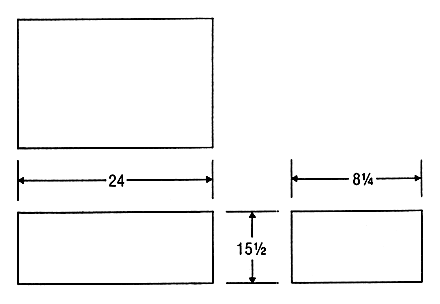

Technical drawing: download the Ronco Plastics 14W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
