Under eight inches tall. The 72W closes out the slice at 35 x 19 x 7.75 inches, putting 19 gallons into one of the thinnest profiles Ronco molds. This is the tank for the layer nobody sees: between a van floor and its plywood deck, beneath a berth flat, in the shallow tray over a trailer's axles. It is cataloged for RV and marine service alike because thin, wide voids are universal.
The Water / Waste Holding Tank series designation means the shell commits at order time. Fresh-water fittings: a potable tank in FDA-compliant polyethylene. Waste fittings: a 19 gallon gray tank that disappears under the shower pan feeding it. Same molding, your call.
It weighs 16 lb empty - solid for its size - and about 158 lb full at 8.34 lb per gallon of water, spread flat across nearly three feet: an easy load to secure well when it bears on the floor structure beneath. Thicker and narrower siblings are in the RV water tanks category, waste-dedicated geometry under RV holding tanks, and the marine placements at boat tanks.
Rotomolded in Tustin, California, where Ronco has made every one of these tanks since 1974. Fittings are installed per order - spin-weld or threaded, to your marks: print the drawing below or use the click-to-place fitting planner. OneSource Plastics is an authorized Ronco Plastics dealer.

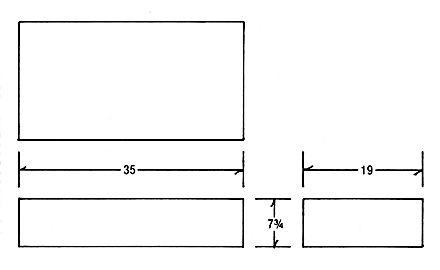

Technical drawing: download the Ronco Plastics 72W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
