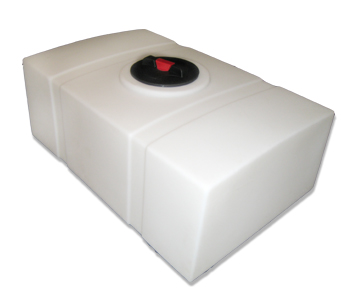

Sixteen inches tall. The AD9407 is the auto-detail tank you buy when the water has to ride under a tonneau cover, beneath shelving in a van, or below the bed rail where it cannot block the mirror line: 60 gallons stretched across a 42 x 28 inch footprint, standing just 16 inches.
It is light-duty spec, and at this size that is usually the right call - a 33 lb molding carrying about 500 lb of water when full, the mass spread low and wide so the vehicle barely feels it in corners. Service is utility wash water, no potable rating. The low flat shape also makes it a natural gravity-feed reservoir over a transfer pump.
Ronco Plastics rotomolds the AD9407 in Tustin, California - a single-material, one-piece shell from a company at it since 1974 - and installs your fittings at the plant, spin-weld or threaded, at the marks you give them. Print the drawing below and mark your fitting locations, keeping the outlet at the low corner of your install. If your route needs more water, the 100-gallon AD9401LD at 38.5 x 26.5 x 25 inches is the next step, and the 100-gallon AD9410LD slim at 47 x 16 x 33 inches keeps a 16-inch dimension - turned vertical. The full family: Ronco Plastics tanks.
OneSource Plastics is an authorized Ronco Plastics dealer.
Technical drawing: download the Ronco Plastics AD9407 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
Freight
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
