Sixteen inches on every axis. The B106 is a true cube - 16 x 16 x 16 - holding 16 gallons, and the symmetry is not a party trick: a cube fits any orientation, so the same tank drops into a boat locker, an RV bay, or a van conversion without asking which side is up. It is a dual-role molding besides - fresh water or gray/black waste service, decided entirely by the fittings you order.
In fresh service the material is FDA-compliant polyethylene, molded seamless for potable water. Whichever role it plays, it weighs 18 lb empty and about 133 lb full at 8.34 lb per gallon - a load one shelf and two straps handle easily, provided the shelf spans the whole base.
Fittings go in at order time, the way Ronco's Tustin, California plant has worked since 1974: spin-weld or threaded, wherever you mark them. Print the drawing below and mark your fitting locations, or click them into place on the on-page fitting planner. Cousins in every proportion live in boat tanks and RV water tanks; the full catalog is on the Ronco Plastics hub. OneSource Plastics is an authorized Ronco Plastics dealer.

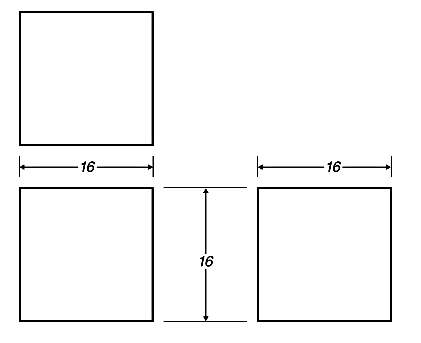

Technical drawing: download the Ronco Plastics B106 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
