The Ronco Plastics B305 is a 40-gallon dual-purpose molding stretched long and shallow - 54" x 20" x 9" - to ride under floors and berths where headroom is the scarce commodity. Marine or RV, fresh or waste: the tank is finished by its fittings, becoming either a potable water tank in FDA-grade polyethylene or a gray or black waste holding tank in the same heavy shell. It ships at 92 lb, and a full water load runs about 334 lb, laid flat and low where a hull or chassis carries weight best.
The fitting order deserves the same attention as the tank choice. Ronco spin-welds or threads each fitting at your marked position, and on a 54" tank installed with any pitch at all, the outlet must chase the true low corner or gallons will strand. Print the drawing below, mark it against your actual installation angle, and run the layout through the on-page fitting planner before you order.
Built by Ronco Plastics in Tustin, California, where these moldings have been made since 1974, the B305 belongs to the long-format group in our boat tanks range - and does equal duty among the RV holding tanks when ordered for the waste side. OneSource Plastics is an authorized Ronco Plastics dealer.

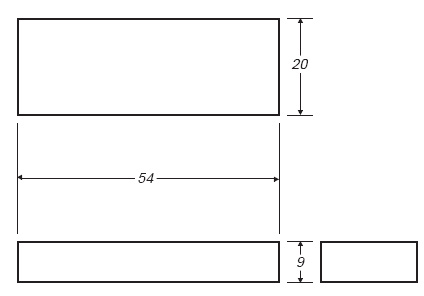

Technical drawing: download the Ronco Plastics B305 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
