Thirty-four gallons, nine and a half inches tall: the Ronco Plastics B381 is a 34 x 26 x 9.5 inch B-series molding for underfloor installs that still want real capacity. It ships at a modest 35 lb, so one person can maneuver it into a crawl-height bay. The dual-role shell is finished as either a potable fresh water tank in food-grade polyethylene or a gray or black waste holding tank; your fitting order decides.
Filled, plan on about 284 lb at 8.34 lb per gallon. In a shallow tank that load sits directly on the mounting surface, which is exactly where you want it.
Every fitting is installed per order, spin-welded or threaded to the positions you mark. Print the drawing below, plot fill, vent, and drain where they suit your rig, and use the fitting planner on this page to submit the layout. Ronco has run this made-to-order shop in Tustin, California since 1974.
See related RV water tanks, RV holding tanks, and marine tanks. OneSource Plastics is an authorized Ronco Plastics dealer.

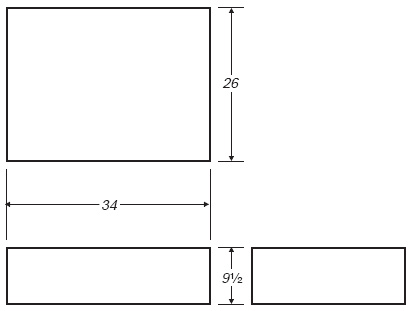

Technical drawing: download the Ronco Plastics B381 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
