The Ronco Plastics B487 is a wide, shallow 97 gallon molding built for the space under things: under a deck, under a coach floor, under a garage-bay platform. Its long, flat proportions distribute nearly half a ton of water where a compact tank would concentrate it.
Specifically, about 809 lb at 8.34 lb per gallon when full, riding on a 136 lb shell. Spread across the tank's broad footprint that load is manageable, but the supporting structure must be continuous; a shallow tank spanning a void will oil-can where a supported one will not.
The B487 is a dual-role B-series molding. Fresh water fittings make it a potable tank, its polyethylene food-contact grade; waste fittings make it a high-capacity gray or black holding tank. Ronco installs each fitting per order, spin-welded or threaded to your marks, and on a shallow tank those marks matter: print the dimensioned drawing below, plot your penetrations where they clear internal structure, and finalize them in the on-page fitting planner.
Molded in Tustin, California by Ronco Plastics, established 1974. The RV water tanks and RV holding tanks pages hold the rest of the underfloor family, and the freight cost estimator prices delivery to your ZIP. OneSource Plastics is an authorized Ronco Plastics dealer.

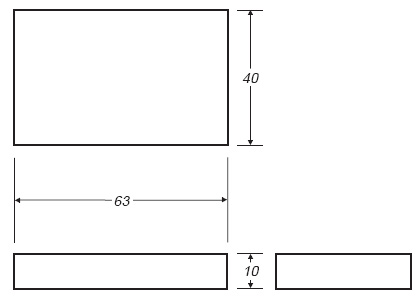

Technical drawing: download the Ronco Plastics B487 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
