Filled to the top, the B548 weighs almost exactly 100 lb - 12 gallons of water in a 24 x 13.5 x 10 inch molding that ships at just 17 lb. That round number is a useful design fact: it is the weight one person still handles in an emergency, the load any sound locker floor takes, and enough fresh water for a long weekend or enough holding capacity to make a small cruiser legal and comfortable.
The B548 is a B-series dual-role blank. Ordered as a fresh tank it comes with supply fittings in FDA-approved potable polyethylene; ordered as a holding tank the same molding gets waste fittings. The fittings are the fork in the road, and Ronco installs them per order - spin-welded or threaded, at the positions you mark. Print the drawing below, mark it against the actual locker, and enter the layout in the on-page fitting planner.
The proportions are conservative: no long spans, no tall unsupported walls, a shape that takes decades of slosh without complaint. Molded in Tustin, California by Ronco, in continuous operation since 1974.
Bracket the size in our boat tank category or under RV holding tanks; the maker's complete line is on the Ronco Plastics hub. OneSource Plastics is an authorized Ronco Plastics dealer.

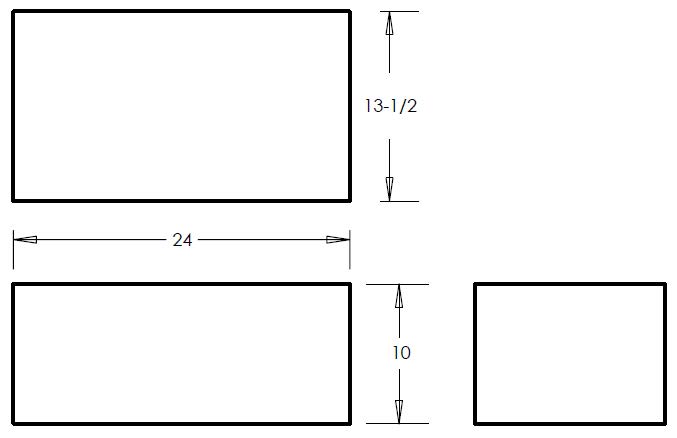

Technical drawing: download the Ronco Plastics B548 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
