The 48W is a heavy-wall 52 gallon tank in a 40 x 24 x 14 inch envelope - and the 72 lb empty weight is the spec to read twice. That is not packaging; that is polyethylene, molded thick for tanks that spend their lives full, pressurized by slosh, and racked by road or sea motion. Buy this shell when the duty cycle is constant rather than occasional.
As with everything in the Water / Waste Holding Tank series, 52 gallons has no fixed job. Fresh-water fittings make it a potable tank in FDA-compliant resin - a main supply for a coach or cruiser. Waste fittings make it a large gray or black holding tank that stretches the interval between dump stops to something civilized.
Full, it holds about 434 lb of water at 8.34 lb per gallon; with the tank's own weight on top of that, mounting is a through-bolted, frame-bearing job. The same footprint in light-duty potable trim exists as the RV48W; the surrounding size range is in the RV water tanks category and RV holding tanks.
Rotomolded in Tustin, California since 1974. Fittings are installed per order - spin-weld or threaded, exactly where you mark: print the drawing below or use the click-to-place fitting planner. OneSource Plastics is an authorized Ronco Plastics dealer.

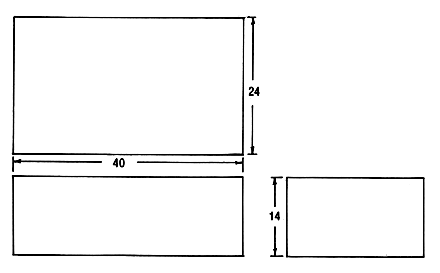

Technical drawing: download the Ronco Plastics 48W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
