The Ronco Plastics B493 is the heavyweight of the 25 gallon class: a long, low molding carrying 106 lb of polyethylene, which is more tank mass than some tanks twice its capacity. That wall thickness buys abuse tolerance, stiffness over a long unsupported span, and a service life measured in decades rather than seasons.
It remains a true dual-role B-series shell. Fresh water fittings make it a potable tank in food-contact polyethylene; waste fittings make it a gray or black holding tank with armor to spare. Ronco installs each fitting per order, spin-welded or threaded to your marks, so the long body gets its ports exactly where the hose runs want them.
The water itself adds about 208 lb at 8.34 lb per gallon on top of that heavy shell, so support the molding continuously along its length rather than at the ends alone. Print the dimensioned drawing below, then finalize positions in the on-page fitting planner.
Molded in Tustin, California by Ronco Plastics, tank builders since 1974. Compare the lighter 25 gallon water tank and 25 gallon holding tank, or survey the whole boat tank line; freight is a ZIP away in the freight cost estimator. OneSource Plastics is an authorized Ronco Plastics dealer.

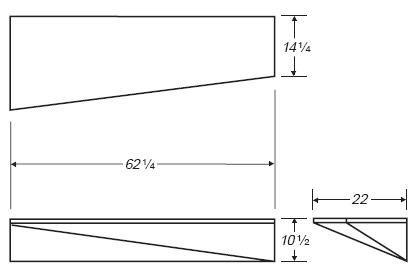

Technical drawing: download the Ronco Plastics B493 dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
