Tank Fitting Torque Specifications: Plastic-Threaded Connection Best Practices

The single most common warranty claim on rotomolded HDPE tanks is not wall failure or seam separation - it is bulkhead and threaded fitting leak. The cause in roughly 80% of cases is field over-tightening. The cause in the remaining 20% is field under-tightening, wrong gasket material, missed dry-thread engagement, or installer torquing on the wrong wrench point. None of these are tank defects. All of them are recoverable on the install bench with a $30 torque wrench, an EPDM gasket sized to fit, and three minutes of attention to thread geometry.

This guide gives the actual torque numbers for plastic-threaded connections from 1/2-inch through 6-inch on rotomolded HDPE tank walls, the gasket selection logic, and the failure modes that cost the customer 1-2 weeks of downtime when they go wrong. The numbers come from manufacturer install specs (Banjo, Hayward, Spears, Asahi-America), industry standards (ASTM F412 plastic-piping definitions, ASME B1.20.1 NPT thread spec, NSF/ANSI 14 plastic-pipe certification), and field experience installing thousands of bulkheads on Norwesco, Snyder, Chem-Tainer, Enduraplas, and Bushman tanks.

Why Plastic Thread Torque Is Different From Metal Thread Torque

A steel NPT fitting on a steel tank has the same elastic modulus on both sides of the joint. Compression of the threads creates an elastic preload that resists vibration and thermal cycling. Plastic NPT on plastic tank wall has a wholly different mechanical character:

• HDPE creep: polyethylene under sustained compressive load relaxes (creeps) by 5-15% over 30-90 days. A connection torqued to spec on day 1 will be at 85-95% of spec by day 90, and the gasket compression will have dropped accordingly.
• Thread stripping: over-torque does not stretch plastic threads the way it stretches steel - it shears them. Once stripped, the joint cannot be re-made without bushing or fitting replacement.
• Tank-wall flex: rotomolded walls are 0.20-0.45 inches thick and locally flexible. Excess clamp load on a 4-inch bulkhead pulls the wall inward up to 0.10 inches, which can crack the wall over thermal-cycling fatigue.
• Differential expansion: HDPE thermal expansion coefficient is 1.1 x 10^-4 in/in/F vs steel at 6.5 x 10^-6 in/in/F - 17x higher. A summer-day 100F installation cooled to a winter 30F night sees enough differential contraction in metal-to-plastic joints to produce leaks even at correct torque.

The right approach: use plastic-on-plastic threads when possible, EPDM or Viton gaskets sized to actual flange surface, controlled torque (never "tight is right"), and a re-torque cycle after first 30 days of service.

Torque Specifications by Connection Type and Size

Threaded Bulkhead Fittings (most common)

Standard installation: bulkhead inserts through tank wall, gasket seats against outside (wet-side) wall, locknut tightens against inside (dry-side) of wall. Torque is applied to the locknut, NOT the bulkhead body.

Manufacturer-specific overrides: Banjo polypropylene bulkheads spec 25 ft-lb max on 2-inch regardless of tank wall thickness. Hayward NSF-rated PVC bulkheads spec 12-18 ft-lb on 2-inch with EPDM and 8-12 ft-lb with Viton (Viton compresses less). Always defer to the fitting manufacturer's printed torque value when present; the table above is the conservative envelope.

NPT Threaded Pipe Fittings (no bulkhead)

Direct-threaded NPT fittings into a tank molded-in threaded boss. Standard ASME B1.20.1 NPT engagement: 4.5 turns past hand-tight on 1/2 inch through 1-inch; 3 turns past hand-tight on 1-1/2 inch through 4 inch. Final torque depends on whether thread sealant is paste, tape, or pre-applied dry-fit.

NPT count-the-turns method is more reliable than torque measurement on plastic-on-plastic threads because thread engagement length varies by manufacturer's tolerance. Where a torque wrench is required (fitting documentation calls for one), follow these values:

• 1/2-inch poly NPT: 8-12 ft-lb final
• 1-inch poly NPT: 15-25 ft-lb final
• 2-inch poly NPT: 30-45 ft-lb final
• 3-inch poly NPT: 50-70 ft-lb final
• 4-inch poly NPT: 70-95 ft-lb final

Cam-Lock and Quick-Disconnect Fittings

Cam-lock fittings use lever-actuated cams that pull the male adapter into the female coupler against an EPDM gasket. No torque value applies - cam closure is binary, either fully closed (lever flush against body) or not. Three failure modes:

• Gasket damage: EPDM gaskets harden and crack after 2-5 years; replace as routine maintenance, not on failure.
• Lever fatigue: stainless cam levers fatigue at the pivot pin after 1,000-3,000 cycles; replace cam-lock body when pivot wear is visible.
• Foreign object on gasket: grit or debris on the gasket face creates pinhole leak; clean both faces with a clean rag before each connection.

Flange Connections (3-inch and Larger)

Bolted flange faces (Class 150 or Class 300) on plastic-to-plastic or plastic-to-metal interface. Always star-pattern torque in 3 passes:

1. Pass 1: 30% of final torque, star pattern.
2. Pass 2: 60% of final torque, star pattern.
3. Pass 3: 100% of final torque, star pattern.
4. Re-torque after 24 hours: 100% torque again to compensate for gasket creep.
5. Re-torque after 30 days: 100% torque again. After 30-day re-torque, the joint is stable.

Gasket Selection: Match the Chemistry

Default gasket choice: EPDM for water and most oxidizer chemistry, Viton FKM for hydrocarbons and acids, PTFE envelope for everything when budget allows or chemistry is borderline. Never reuse a gasket - they cost $2-12 each, downtime from a leak costs hundreds.

The 30-Day Re-Torque Rule

HDPE compresses under load. EPDM gaskets relax. Both phenomena reach approximately 90% of long-term equilibrium within 30 days at install temperature. The single highest-leverage maintenance action on any new tank install is a 30-day re-torque pass on every threaded fitting and bolted flange. Cost: 30 minutes of labor. Benefit: 80%+ reduction in year-1 leak warranty claims.

Industry rule of thumb: budget the re-torque visit into the install quote. If the customer balks, give them written instructions and a torque wrench loan. The 5-minute conversation is cheaper than a Year 2 leak callback.

Common Failure Modes

Failure 1: Cracked tank wall around bulkhead

Cause: over-torque on locknut. The locknut compresses the tank wall by 0.05-0.15 inches; over-torque can compress 0.20+ inches and crack the wall. Visible as star-pattern crack radiating from bulkhead OD. Fix: drain tank, cut out 6-inch radius of cracked wall, weld in HDPE patch (extrusion welding), install new bulkhead at correct torque.

Failure 2: Stripped female threads in molded-in boss

Cause: over-torque on male NPT fitting. Polyethylene threads shear before they yield. Once stripped, the boss is dead; common workaround is install a threaded-insert bushing or convert to bulkhead.

Failure 3: Gasket extrusion on flange face

Cause: under-sized gasket OD; over-torque pushed the gasket OUT of the flange face. The leak is at the gasket gap. Fix: remove flange, install correct-OD gasket, re-torque to spec, 30-day re-torque.

Failure 4: Re-installation leak after winter

Cause: differential thermal contraction in metal-to-plastic joint. A steel pipe nipple in a plastic NPT boss contracts faster than the HDPE; the joint loosens by 30-60 in-lb over a 70F temperature swing. Fix: swap steel-to-plastic with plastic-to-plastic, OR install with PTFE paste (not just tape) to seal the gap that opens at low temp, OR re-torque seasonally.

Failure 5: Cam-lock won't latch

Cause: gasket is hard, cracked, or has debris. The lever cannot pull the male adapter far enough to engage the latch detent. Fix: replace gasket; clean both faces; never force the lever.

Failure 6: Pipe nipple cross-threads on first installation

Cause: misaligned start. NPT threads taper - the first 2 turns must be perpendicular to the boss face. Cross-threads at start = guaranteed leak. Prevention: hand-thread the first 2 turns counter-clockwise (sounds wrong - it works) until you feel the thread fall into engagement, THEN reverse direction and tighten. Counter-clockwise pre-engagement aligns the thread without forcing the first turn.

Field Installation Checklist

1. Inspect threads: visual on both male and female threads. Reject any visible cross-thread, gouge, or contamination.
2. Clean faces: wipe gasket face on both sides with clean lint-free rag. No oil, no grit.
3. Verify gasket: correct material (chemistry-matched), correct OD/ID for flange, no cracks or compression set.
4. Apply sealant: 3-4 wraps PTFE tape clockwise on male NPT, OR thin coat of compatible thread paste. Never both at once on plastic threads (over-builds the joint).
5. Hand-tight engagement: count turns. NPT 1/2 to 1 inch = 4 turns hand-tight; larger sizes = 3 turns.
6. Apply final torque: use a calibrated torque wrench. Bulkhead wrench for the locknut on bulkheads.
7. Visual inspection: gasket fully seated, no extrusion, threads not visible above flange face.
8. Pressure test: water-fill to operating level, 24-hour observation. Mark fluid level on tank wall.
9. 30-day re-torque: calendar-schedule. Re-apply final torque on every threaded fitting. Document in maintenance log.

Internal Resources

• Form Factor Selection Guide
• Chemical Compatibility Library
• Sodium Hypochlorite Compatibility
• Sulfuric Acid Compatibility
• Sodium Hydroxide Compatibility
• DEF Compatibility
• Tank Sizing Calculator
• Freight Cost Estimator

Source Citations

• ASME B1.20.1-2013 - Pipe Threads, General Purpose, Inch (NPT)
• ASTM F412-23 - Standard Terminology Relating to Plastic Piping Systems
• ASTM D1599-18 - Standard Test Method for Resistance to Short-Time Hydraulic Failure
• NSF/ANSI 14 - Plastics Piping System Components and Related Materials
• NSF/ANSI 61 - Drinking Water System Components - Health Effects
• Banjo Polypropylene Bulkhead Fitting Installation Guide (manufacturer spec)
• Hayward Industrial PVC and CPVC Bulkhead Installation Guide (manufacturer spec)
• Spears PVC and CPVC Fitting Installation Manual (manufacturer spec)
• Asahi-America Polypropylene Fitting Installation Manual (manufacturer spec)
• Loctite Thread-Sealant Application Guide (Henkel)

Recommended Tanks for This Guide

Live pricing, updated automatically · estimate freight to your ZIP.

Snyder Industries 90 Gallon HDLPE Chemical Feed Station Tank with Stand in White

$2,799.32

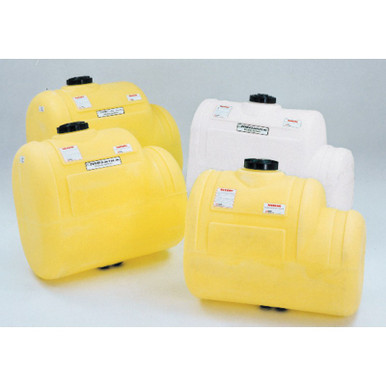

Snyder Industries 250 Gallon XLPE Chemical Feed Station Tank

$2,643.13

Snyder Industries 535 Gallon Plastic Horizontal Leg Tank

$1,388.08

Chem-Tainer 1150 Gallon Vertical Storage Tank

$2,700.00

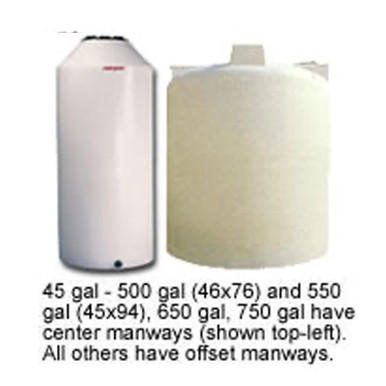

Chem-Tainer 2000 Gallon Plastic Vertical Liquid Storage Tank

$4,105.46

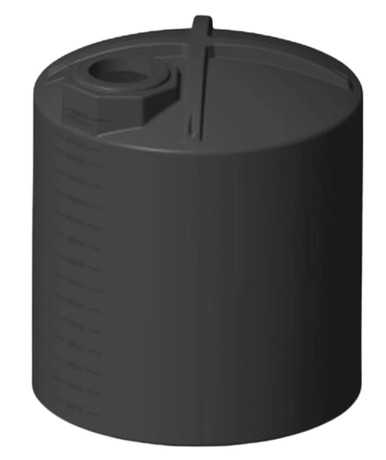

Bushman 3000 Gallon Black Vertical Water Storage Tank
