Tank Stress + Strain Engineering: Burst Pressure Math vs Operating Pressure Buffers
Every plastic storage tank fails predictably under one of two pressure regimes: hydrostatic head from the contained fluid acting on the bottom course (the dominant failure mode for benign service), or internal pressure from rapid fill, vent blockage, vapor expansion, or chemistry off-gassing (the dominant failure mode for everything else). Specifying a tank correctly means working backward from the burst pressure of the chosen wall section through the safety factor required by ASTM D1998, ASME Boiler and Pressure Vessel Code (BPVC) Section X, or API 650 to land on a maximum operating pressure that the system will never exceed in normal or upset condition. This pillar walks the actual stress-strain math, with the equations, the polyethylene material constants, and the common error patterns that cause real-world tank failures.
The reference codes used in this guide are ASTM D1998 (Standard Specification for Polyethylene Upright Storage Tanks), ASTM D638 (Standard Test Method for Tensile Properties of Plastics), ASTM D790 (Flexural Properties of Unreinforced and Reinforced Plastics), ASTM D1693 (Environmental Stress Cracking of Polyethylene), ASTM F412 (Standard Terminology for Plastic Piping Systems), ASME BPVC Section X (Fiber-Reinforced Plastic Pressure Vessels), ASME BPVC Section VIII Div 1 (Rules for Construction of Pressure Vessels — atmospheric tanks operate below this code), API 650 (Welded Tanks for Oil Storage, Section 5.6 Shell Design), and the manufacturer engineering manuals from Norwesco, Snyder Industries, and Chem-Tainer. Polyethylene rotomolded atmospheric tanks per ASTM D1998 are explicitly NOT pressure vessels — they are atmospheric vessels rated for hydrostatic head only, and any internal pressure above 0.5 psi is outside the design envelope.
Step 1 — The Two Pressure Loads
Hydrostatic head
The pressure at any point inside a vertical tank is the height of fluid above that point times the specific gravity of the fluid. Equation:
P_psi = h_ft × 0.433 × SG
For a 10-foot-tall water tank (SG = 1.0), the pressure at the bottom is 10 × 0.433 × 1.0 = 4.33 psi. For a 1.5 SG sulfuric acid tank (50% concentration) at the same height, the pressure at the bottom is 6.5 psi. This is the steady-state load the bottom course of the tank must contain.
Internal pressure (vapor space)
If the vent is undersized, blocked, or omitted, the tank can pressurize from rapid fill displacing air, from vapor expansion under solar heat gain, or from chemistry off-gassing. Polyethylene tanks per ASTM D1998 are atmospheric — design pressure is essentially 0 psig, with field guidance suggesting maximum 0.5 psi (about 14 inches water column) before structural risk. Steel API 650 tanks are also atmospheric (15 psig maximum); above that, ASME BPVC Section VIII Div 1 takes over.
Step 2 — Hoop Stress Math (The Cylinder Equation)
The stress in the wall of a thin-walled cylindrical tank is the classic hoop-stress equation:
sigma_hoop = (P × D) / (2 × t)
where:
- sigma_hoop = circumferential stress in psi
- P = internal pressure in psi (hydrostatic head at the depth of interest)
- D = tank inside diameter in inches
- t = wall thickness in inches
The axial stress (along the tank height) is half the hoop stress for a thin-wall cylinder under internal pressure. For a flat-bottom upright tank, the axial stress is dominated by the weight of the contents above the section of interest plus any structural loading from a roof or top equipment.

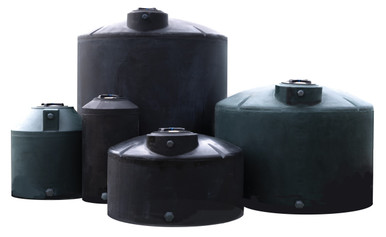

Worked example: 1,500-gallon vertical tank
Tank dimensions (typical Norwesco N-43162 1,500-gallon): inside diameter 64 inches, height 76 inches, base wall thickness approximately 0.350 inch on the bottom course.
Hydrostatic head at the bottom (water, SG = 1.0): P = 76/12 × 0.433 × 1.0 = 2.74 psi
Hoop stress at bottom: sigma = (2.74 × 64) / (2 × 0.350) = 250 psi
Polyethylene (HDPE) yield stress per ASTM D638 is approximately 3,200-4,000 psi; ultimate tensile is 4,400-5,500 psi. The 250 psi operating stress is well below yield with a safety factor of 13-16x. ASTM D1998 Section 6.2 requires minimum 2.0 design factor on yield for the bottom course; the 13x safety margin reflects the fact that polyethylene tanks are designed for long-term creep and chemistry attack, not just short-term mechanical strength.
Worked example: same tank with 1.5 SG chemistry (sulfuric acid 50%)
Hydrostatic head at the bottom: P = 76/12 × 0.433 × 1.5 = 4.11 psi
Hoop stress at bottom: sigma = (4.11 × 64) / (2 × 0.350) = 376 psi
Still below yield with a 9-11x safety factor. But this 1,500-gallon tank specification is for SG ≤ 1.5 service per Norwesco data sheet. Above 1.5 SG, the manufacturer specifies a thicker-wall version with the bottom course built up to 0.500 inch or higher. Always verify SG rating before chemistry conversion.
Step 3 — The Long-Term Creep Problem (Polyethylene Specific)
Polyethylene exhibits time-dependent deformation (creep) under sustained load. The short-term tensile strength of HDPE is approximately 4,400 psi, but the long-term hydrostatic design stress (HDB) per ASTM D2837 (the polyethylene pipe-pressure standard) is much lower — about 1,250-1,600 psi for PE 4710 grade at 73 F over a 50-year design life. ASTM D1998 incorporates this through its design-stress methodology: the maximum allowable hoop stress for the bottom course at 73 F is 600 psi, dropping to about 100 psi at 140 F (the upper limit of normal service).
| Service Temperature | HDPE Allowable Hoop Stress (psi) | XLPE Allowable Hoop Stress (psi) | Notes |
|---|---|---|---|
| 73 F (room temp) | 600 | 800 | ASTM D1998 baseline |
| 100 F | 450 | 650 | Outdoor summer typical |
| 120 F | 280 | 450 | Heat-traced or hot-process |
| 140 F | 100 | 300 | Upper limit HDPE; XLPE preferred above 120 F |
| 160 F | Not rated | 150 | XLPE only; absolute upper limit polyethylene |
The temperature derate is the single most-overlooked spec parameter on tank conversions. A polyethylene tank rated for 1.9 SG sulfuric at 73 F is rated for only 1.2 SG at 120 F. Heat-tracing the same tank for freeze protection drops it from 1.9 SG to 1.2 SG service even though the heat trace is purely defensive. Always re-derate when changing service temperature.
Step 4 — Burst Pressure of an Atmospheric Polyethylene Tank
An atmospheric polyethylene tank does not have a published burst-pressure rating because it is not designed as a pressure vessel. Field-test data and manufacturer engineering files indicate burst occurs at internal pressures in the range of 4-12 psi, depending on tank diameter, age, and chemistry exposure. The failure mode is typically:
- Top dome bulges outward as internal pressure rises
- Stress concentrates at the top-to-side weld line (the rotomolded knit-line)
- Crack initiates at the knit-line and propagates circumferentially
- Top blows off in a sudden pressure release
Approximate field burst-pressure formula for a polyethylene rotomolded vertical tank with hemispherical top:
P_burst_psi = (4 × t × sigma_ult) / D
where sigma_ult is approximately 4,000 psi for HDPE at 73 F and 5,000 psi for XLPE. For the 1,500-gallon tank above (D = 64 inches, t = 0.350 inch on bottom, top dome thickness about 0.250 inch):
P_burst = (4 × 0.250 × 4,000) / 64 = 62.5 psi (theoretical)
But the knit-line strength is approximately 50-70 percent of base material, dropping the practical burst pressure to about 30-44 psi. And under chemistry attack, that further drops 30-50 percent over the service life. Field burst pressures of 4-12 psi reported in manufacturer engineering files reflect 5-10 years of chemistry exposure and UV degradation, not new-tank conditions.
Step 5 — Vacuum Collapse (The Underestimated Failure Mode)
Vacuum collapse occurs when the tank is drawn faster than the vent can replace air, creating internal pressure below atmospheric. Polyethylene tanks fail at vacuum levels much lower than internal-pressure failures because the tank wall is in compression and buckling governs.
The Euler buckling equation for a thin-walled cylindrical shell under external (or vacuum) pressure is:
P_critical = (2.6 × E × (t/D)^2.5) / (L/D)
where:
- P_critical = critical buckling pressure in psi
- E = Young's modulus, approximately 110,000 psi for HDPE at 73 F per ASTM D790
- t = wall thickness in inches
- D = inside diameter in inches
- L = unsupported length (usually tank height) in inches
For the same 1,500-gallon tank: P_critical = (2.6 × 110,000 × (0.350/64)^2.5) / (76/64) = approximately 0.5 psi (about 14 inches water column)
That is the theoretical buckling pressure. With manufacturing imperfections and the typical 50 percent knockdown factor for thin-wall cylinder buckling, real-world vacuum collapse occurs at approximately 0.25 psi (about 7 inches water column) — equivalent to drawing a tank with no vent at a rate that exceeds the leak path through the manway.
The implication: a tank without functioning vent capacity is a 30-second vacuum-collapse failure waiting to happen the first time someone runs the discharge pump. Vacuum failures are almost always catastrophic and cannot be repaired — the tank must be replaced.
Step 6 — Operating Pressure Buffer (The Safety Factor Specification)
Working backward: if the burst pressure is 4-12 psi (lower end of field data) and the vacuum-collapse pressure is 0.25 psi, what is the safe operating pressure window?
| Pressure Regime | Maximum (psig) | Maximum (in. WC) | Source / Code |
|---|---|---|---|
| Atmospheric design pressure | 0.0 | 0 | ASTM D1998 atmospheric definition |
| Field operating pressure max | +0.5 | +14 | Industry rule of thumb, ASTM D1998 spirit |
| Field operating vacuum max | -0.1 | -3 | 2x safety factor on buckling |
| Pressure-vacuum vent set-point (PVRV) | +0.25 / -0.05 | +7 / -1.5 | API 2000 typical setting |
| Field burst pressure (degraded tank) | 4-12 | 110-330 | Manufacturer engineering data |
| Field vacuum collapse pressure | -0.25 | -7 | Calculated + 50% knockdown |
The take-away: polyethylene atmospheric tanks have a tiny operating window — about 16 inches of water column total span between vent-saturation pressure and vacuum-collapse pressure. The atmospheric vent must be sized to keep the tank inside this window during normal fill, draw, and thermal cycling. ASTM D1998 Section 8.2 vent sizing and NFPA 30 Section 21.4.3 emergency vent sizing exist specifically to enforce this buffer.
Step 7 — Steel and FRP Tank Stress (Brief Comparison)
API 650 steel tanks
API 650 Section 5.6 specifies the 1-foot method for shell design. Required wall thickness is calculated separately for product (P) and hydrostatic test (T) loading:
t_design = (2.6 × D × (H - 1) × G) / (S_d × E) + CA
where D is tank diameter in feet, H is design liquid height in feet, G is specific gravity, S_d is design allowable stress (typically 23,200 psi for A36 steel), E is joint efficiency (1.0 for full radiograph), and CA is corrosion allowance (typically 0.0625 inch).
For a 50-foot diameter, 30-foot tall water tank (G=1.0): t_design = (2.6 × 50 × 29 × 1.0) / (23,200 × 1.0) + 0.0625 = 0.225 inch (bottom course)
FRP per ASME BPVC Section X
FRP tanks are designed with explicit safety factors of 5 (short-term) and 10 (long-term creep). The design hoop stress for filament-wound FRP at 73 F is typically 1,500-2,500 psi depending on resin system and fiber orientation.
Step 8 — Real-World Failure Modes Tied to Stress-Strain
Failure mode 1 — Bottom course bulge from over-SG service
A polyethylene tank rated for 1.5 SG service is filled with 1.9 SG ferric chloride. Hoop stress jumps 27 percent. Allowable stress at 73 F is 600 psi; the tank now sees 750 psi. Within 6-12 months the bottom course visibly bulges and the lower bulkheads weep at the gasket. Always derate for chemistry SG.
Failure mode 2 — Top dome blow-off from blocked vent
A 4-inch atmospheric vent is iced over in winter or screened with insect guard that fouled with debris. A truck offloads at 100 GPM. Internal pressure climbs to 2-3 psi. The top dome bulges, knit-line cracks, top blows off. Vent must be sized for maximum fill rate AND inspected quarterly.
Failure mode 3 — Vacuum collapse from pump-down
A 5,000-gallon tank is drawn at 200 GPM through a 3-inch suction pipe. The 4-inch vent is closed for routine maintenance and not reopened. Internal pressure drops to -0.3 psi within 90 seconds. Tank shell buckles inward, side wall folds, contents discharge through the breach. Always tag vent isolation as a safety-critical lock-out point.
Failure mode 4 — Environmental stress cracking (ESC) from chemistry
Surfactants, certain organic solvents, and concentrated bleach attack polyethylene through ESC even at low stress. The tank does not fail in tension; it cracks at stress concentrations (around bulkhead penetrations, near tie-down lugs). ASTM D1693 governs ESC testing. Specify XLPE for ESC-prone chemistries; XLPE has 3-5x ESC resistance over HDPE.
Failure mode 5 — Cold-temperature brittle fracture
HDPE ductile-to-brittle transition occurs at -40 F to -70 F depending on grade. A tank in unprotected outdoor service in zone 6+ winter can drop into the brittle regime. Hydraulic shock from a closing valve produces a sudden stress spike that fractures the tank. Specify cold-weather HDPE grades or XLPE for any tank in unheated outdoor service below 0 F design ambient.
Step 9 — Specifying for Pressure Excursions
Three engineering controls handle expected pressure excursions:
- Atmospheric vent: sized per NFPA 30 21.4.3 wetted-surface formula or per ASTM D1998 8.2 fill-rate method. First line of defense, normal operation.
- Pressure-vacuum relief vent (PVRV): spring-loaded vent set at +0.25 / -0.05 psig per API 2000. Second line of defense, abnormal operation.
- Emergency vent: oversized relief device for fire-exposure pressurization per NFPA 30. Third line of defense, fire emergency.
For chemistry tanks where vapor recovery is required (low-emission service), substitute a closed-vent system tied to a vapor-control device, but always retain the emergency vent for fire-condition relief.
Common Stress-Strain Spec Mistakes
Mistake 1 — Using nominal capacity instead of actual fill
Tanks are rated for nominal capacity, but real-world fills can exceed nominal by 5-10 percent if the level switch fails or the operator overrides. Spec the wall thickness based on full-to-the-overflow fill, not nominal.
Mistake 2 — Ignoring temperature derate
Polyethylene allowable stress drops 50-80 percent from 73 F to 140 F. A tank rated for 1.9 SG service at room temperature is rated for only 1.2 SG at 120 F.
Mistake 3 — Spec to short-term tensile instead of long-term hydrostatic
HDPE short-term tensile is 4,400 psi; 50-year hydrostatic design stress is 1,250-1,600 psi. Always use the long-term value (ASTM D2837 HDB) for tank design.
Mistake 4 — No vacuum relief device
Atmospheric vents can fail closed; vacuum collapse is the consequence. Either use a PVRV or oversize the atmospheric vent by 2x for vacuum-tolerance margin.
Mistake 5 — Treating polyethylene as a pressure vessel
Atmospheric polyethylene tanks are not ASME BPVC Section VIII vessels. Operating above 0.5 psi is outside the design envelope and voids the manufacturer warranty. For pressurized service, specify FRP per ASME Section X or steel per ASME Section VIII.
Mistake 6 — Skipping the long-term creep check
A tank that passes the initial hydrostatic test can creep to failure over 5-10 years. Specify wall thickness based on 50-year HDB, not initial hydrostatic.
Mistake 7 — Mixing chemistry without re-derating
Switching a tank from water (1.0 SG) to fertilizer slurry (1.4 SG) or chemistry (1.5+ SG) increases hoop stress proportionally. Always rerun the math when switching service.
