3000 Gallon 15 Degree Cone Bottom Tank: Complete Buyer's Guide
Three thousand gallons of batch processing with a 15-degree cone that drains the whole vessel without a single pump cycle. At ten feet tall and over nineteen tons when full, this is bulk chemical-mixing infrastructure — the kind of tank a process line is built around, not the kind you move once it lands.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
A 15-degree cone is a different animal from the steep inductor cones. The shallow slope on the 3000 Gallon 15 Degree Cone Bottom Tank is not about aggressive funneling — at this scale a steep cone would put the outlet absurdly high off the ground. Instead, 15 degrees buys gravity-assisted complete drainage across a very wide 91-inch base while keeping overall height to a workable 120 inches. The tank empties itself between batches; you do not pump the heel out.
This is bulk process equipment. Three thousand gallons of solution at the 1.5 specific-gravity rating weighs roughly 37,991 pounds — over nineteen tons — on top of a 461-pound shell. That number governs everything downstream: the stand, the pad, the rigging to set it. It is sized for batch chemical processing, mixing, and metering at production volume, where a flat-bottom tank would trap an expensive heel of product on its floor after every cycle.
The fittings are scaled to match. A 3-inch NPT outlet at the cone tip moves bulk solution at a real flow rate without throttling the drain, and a 16-inch lid provides access for charging, mounting large-scale agitation, and interior inspection. Translucent white walls let an operator gauge the level in a tank too large to open casually, and Norwesco's seamless one-piece rotational mold means there is no weld seam anywhere across a vessel this size for aggressive chemistry to find.
This is dedicated chemical-handling infrastructure rated to 1.5 specific gravity — built to process agricultural and industrial solutions, not to store drinking water — and it carries Norwesco's 3-year manufacturing warranty.

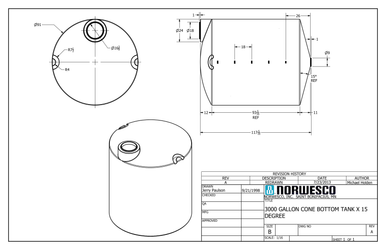

Technical Drawing
Official Norwesco technical drawing — 3000 Gallon 15 Degree Cone Bottom Tank
Key Features and Specifications
- 3,000-gallon capacity — sized for full-drain mixing and batch processing
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 120" tall x 91" diameter — compact vertical footprint
- 461 lbs empty, approximately 37,991 lbs when full at rated specific gravity
- 3" NPT outlet fitting — factory installed and leak-tested
- 16" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Must be installed on the manufacturer-supplied or compatible stand rated for the full loaded weight. Never rest a cone bottom tank directly on its apex
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
Installing a 3,000-gallon cone-bottom tank is a rigging-and-engineering project, not a delivery. Nineteen tons funneling through one cone demands a purpose-built stand and a foundation designed by someone who has run the numbers.
Stand and Foundation
This tank must sit in an engineered cone-bottom stand rated for the full loaded weight of roughly 37,991 pounds, and that stand must sit on a reinforced concrete foundation poured for the point loads at each leg. Do not improvise either one. The 15-degree cone keeps the outlet relatively low, but the stand still elevates the tank enough to plumb the 3-inch drain, so the foundation carries the entire mass through a handful of concentrated bearing points. Level the pad within an inch across the full footprint and verify every stand leg shares the load before the first fill. The cone tip is the drain outlet and is never a structural support.
Plumbing the 3-Inch Outlet
Plumb the 3-inch NPT tip outlet to your process piping with a full-bore valve and allowance for thermal expansion — a ten-foot column of solution moves the fittings measurably as temperature swings. Keep the drain run short and full-bore so the shallow cone's gravity drain is not bottlenecked. Flexible or expansion-jointed connections at the tank protect the boss from the loads a rigid bulk pipe would transmit.
Agitation and Ventilation
At 3,000 gallons, agitation is engineered, not improvised: a mixer must be mounted to bridge the lid or a dedicated nozzle, sized for the batch, and supported independently so its load is not carried by the tank wall. Provide ventilation appropriate to the chemistry and process volume, fit a pressure/vacuum relief vent rated for the product, and integrate the tank into the facility's spill containment. This is professional installation territory.
Maintenance and Long-Term Care
A bulk process tank is a capital asset; its maintenance is a scheduled program, not a casual walk-around. The priorities are structural integrity at scale, the cone's complete drainage, and disciplined decontamination between campaigns.
Scheduled Inspection
- Foundation and stand: Inspect the engineered stand and concrete foundation for settling, cracking, or corrosion. At nineteen tons, a foundation that shifts under one leg is the most serious failure mode the system has — it loads the cone unevenly and can split it.
- Cone and outlet: Confirm the 15-degree cone is draining completely to the 3-inch tip; a settled heel signals either a fouled outlet or a stand that has gone out of level.
- Wall survey: Survey the full height of the wall for bulging, crazing, or stress whitening, paying attention to the lower third where hydrostatic load is greatest. A bulge low on the wall is an urgent finding at this volume.
- Fittings and agitator: Check the 3-inch outlet boss, the lid, and the agitator mount for leaks and load transfer to the tank wall.
Decontamination Between Campaigns
Before switching products, execute a full decontamination of the tank, cone, outlet, and agitator per the chemical manufacturer's procedure. A 3,000-gallon vessel holds a meaningful residual volume in the cone and piping, and cross-contamination at production scale spoils an entire downstream batch. This is process infrastructure and is never converted to potable service.
Long-Term Care
Out of direct sun and within its ratings, the seamless poly shell delivers many years of service. The watch items over time are the foundation (concrete fatigue under sustained dead load), the process valves and agitator seals, and the wall's lower hydrostatic zone. A documented inspection log is the asset-management tool that keeps a tank this valuable in service.
Alternatives and Comparisons
The 3000 Gallon 15 Degree Cone Bottom Tank competes with both flat-bottom bulk storage and other cone angles, and the decision is driven by whether you process or merely store.
Cone vs. flat-bottom at bulk scale: A 3,000-gallon flat-bottom vertical tank stores solution cheaper and lower, but it traps a heel on its floor that must be pumped or scraped out between batches. If you are batching and need a clean, complete drain every cycle, the cone pays for its added height and stand. If the tank just parks a finished product, flat-bottom wins on cost.
Why 15 degrees at this size: The shallow 15-degree cone is the right angle for a large-diameter tank — it drains completely by gravity while keeping the outlet at a reasonable working height. A steep cone on a 91-inch base would stand impractically tall. For bulk process volumes, the gentle cone is the engineered choice.
Other 3000-Gallon Options
Frequently Asked Questions
How long will the 3000 Gallon 15 Degree Cone Bottom Tank last?
Within its ratings, on an engineered stand and foundation, and out of direct sun, the seamless poly shell delivers many years of bulk service. At this scale the life-limiting risks are structural, not material: a foundation that fatigues or settles under nineteen tons of sustained load, and the lower wall's hydrostatic zone. A documented inspection program covering the foundation, cone drainage, and lower-wall condition is what carries a tank this valuable through a long service life.
What chemicals can I store in this tank?
This is bulk chemical-process equipment rated to 1.5 specific gravity, built to batch, mix, and meter agricultural and industrial solutions within that density — liquid fertilizers, surfactants, and water-based process and cleaning chemistries. It is not for drinking water and never for fuels, solvents, or flammables. At production volume the consequences of an incompatible chemistry are large, so verify every product against a polyethylene compatibility chart before it goes in.
What kind of foundation does a 3000-gallon tank need?
An engineered one. A full 3,000-gallon charge at 1.5 specific gravity is roughly 37,991 pounds, all of it transferred through the cone into a stand and then into the foundation at concentrated leg loads. This requires a reinforced concrete pad designed for those point loads, level within an inch across the footprint, and a cone-bottom stand rated for the full weight. This is not a gravel-pad installation — have the foundation engineered for the load.
Does this tank come with a warranty?
Yes — Norwesco's 3-year warranty covers material and workmanship defects in the shell when the tank is used within its ratings, including molding flaws across a vessel this size. It does not cover chemical attack from an incompatible product, a cone or wall damaged by an inadequate or settling foundation, or improper installation. At this scale, retain the engineering documentation for the stand and foundation along with your invoice; it matters for any claim.
Can I install this tank underground?
No. A cone-bottom process tank is engineered for above-ground service in a stand — the tall, large-diameter shell and tapered cone are not built to resist the soil and groundwater pressure of burial, and the cone has no role underground. Burial would void the warranty and risk collapse. For below-grade bulk storage, use a purpose-built underground tank engineered with ribbed, reinforced walls for those loads.
Buying Considerations
Ordering the 3000 Gallon 15 Degree Cone Bottom Tank is the start of an engineering project. First, the support: budget and design an engineered cone-bottom stand and a reinforced concrete foundation for the roughly 37,991-pound full load before the tank ships — this cannot stand on its own or sit on a gravel pad. Second, the process integration: plan the 3-inch outlet plumbing with thermal-expansion allowance, the mounted agitation, ventilation, and spill containment as a system. Third, the freight and rigging: at 461 pounds empty and ten feet tall it ships on a dedicated oversized carrier and needs equipment and site access to offload and set — contact us to coordinate the delivery timeline and confirm your site can receive it.
