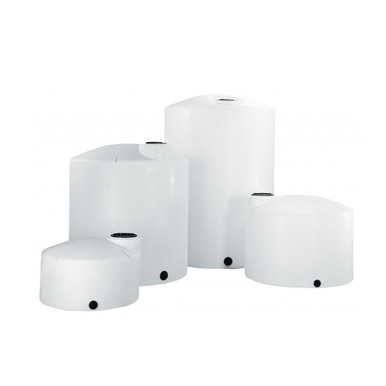

225 Gallon Vertical Liquid Storage Tank: Complete Buyer's Guide
The 225-gallon vertical pushes the slender-column concept further — 77 inches tall on a 31-inch base — for operators who need more than 200 gallons of chemical capacity but can't spare the floor for a wide tank. It carries the 1.5 specific-gravity rating and a 2-inch outlet for agricultural and treatment-chemical service.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
Two hundred twenty-five gallons in a 31-inch circle is an unusual combination, and it exists for a specific buyer: someone whose ceiling or yard has plenty of vertical room but whose floor plan is full. By standing 77 inches tall, this tank delivers a substantial chemical reserve while occupying only about 5.2 square feet — the kind of efficiency that lets you add storage to a packed chemical shed without rearranging it.
Construction is the standard Norwesco approach: a single rotomolded piece of virgin linear polyethylene with no seam, weld, or glued joint to fail, rated to a 1.5 specific gravity. That rating means the wall is built for liquids up to 12.5 pounds per gallon — the full range of dense ag chemicals, liquid fertilizers, and treatment solutions. The extra height versus a 160-gallon tank raises the liquid head another notch, so the lower wall sees more pressure; the 1.5-SG molding accounts for it, but it reinforces why a flat, level base is the first requirement.
The tank weighs 60 pounds empty — a two-person lift to stand and set. Filled with a 1.5-SG product it loads the pad with about 2,875 pounds, all bearing on the 31-inch base, so the foundation needs to be both level and capable of that concentrated weight. The translucent natural-white wall provides a tall, sensitive level indicator: on a narrow tank, each gallon moves the visible level enough to read precisely. Service tops out at 120°F, with UV stabilizers compounded into the resin for outdoor duty.
It ships with a 2-inch NPT outlet, factory-fitted and leak-tested, and an 8-inch lid for filling, venting, and inspection. The 3-year Norwesco warranty applies. Because of its size and weight it travels LTL freight on a pallet, with liftgate delivery available for sites lacking a dock or forklift.
Technical Drawing

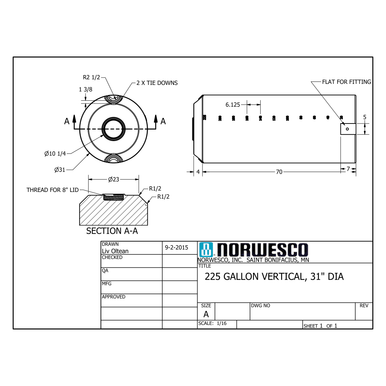

Official Norwesco technical drawing — 225 Gallon Vertical Liquid Storage Tank
Key Features and Specifications
- 225-gallon capacity — sized for agricultural chemical and fertilizer storage
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 77" tall x 31" diameter — compact vertical footprint
- 60 lbs empty, approximately 2,875 lbs when full at rated specific gravity
- 2" NPT outlet fitting — factory installed and leak-tested
- 8" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Place on a firm, level surface free of rocks or sharp objects that could damage the tank bottom. Ensure adequate ventilation if stored chemicals produce vapors
- Ships via LTL freight on a pallet — residential delivery with lift gate available
Installation and Setup Guide
At 77 inches tall and 2,875 pounds full on a small base, the 225-gallon is the most leverage-sensitive tank in the slender family — meaning a level, solid foundation isn't just good practice, it's what keeps the column from leaning and overstressing one side of the wall.
Site Preparation
Lay a flat, level base under the entire 31-inch footprint — compacted gravel at least 4 inches deep, or a concrete slab — true within a quarter inch across the diameter. With nearly 2,900 pounds bearing on a small circle, the load per square inch is significant, so any soft pocket or high spot becomes a stress riser quickly. Strip the area of rocks and debris and grade so runoff sheds away from the base rather than undermining it.
Placement and Connections
Run the 2-inch outlet to the shortest practical line to your transfer pump. The wider outlet drains the tank briskly; pair that with a properly sized vent so the wall never sees vacuum it can't relieve. Install a flexible coupling at the bulkhead — the tall column expands, contracts, and flexes through every fill cycle, and a rigid pipe will loosen or crack the 2-inch fitting over time. Use valve and fitting materials compatible with the stored chemical, not just with the tank.
Venting
The combination of a 2-inch draw and a tall slender body makes adequate venting critical — pull product faster than air can enter and the wall implodes inward. Fit the 8-inch lid with a vent matched to your maximum draw rate. If the chemistry off-gasses, step up to a chemical-rated pressure/vacuum vent so you maintain the breathing path without venting fumes into the work area.
Maintenance and Long-Term Care
The maintenance focus on the 225-gallon is the same as any tall tank but more pronounced: keep it plumb, watch the high-stress lower wall, and never let it draw against a closed vent.
Quarterly Inspection Checklist
- Verticality: Check the tank against a known vertical line. A 77-inch column shows even slight base settlement as a clear lean, and a leaning full tank loads one side of the wall far harder than design intends — correct the pad before it progresses.
- Lower-third wall: Inspect the bottom of the tank where hydrostatic pressure peaks, looking for bulging or any change in wall translucency, particularly after running a denser product.
- 2-inch outlet: Look for weeping or dried chemical residue at the fitting; tighten by hand only to avoid stripping the poly threads.
- Vent: Verify the vent path is open and matched to the fast 2-inch draw — the most common cause of a buckled tall tank.
Cleaning and Changeover
Before switching products, drain and flush following the outgoing chemical's procedure — at 225 gallons the residual volume left by a lazy rinse is more than enough to contaminate or react with the next load. The tank drains cleanly through its 2-inch bottom outlet, but settled solids concentrate in the small floor area, so clear that zone through the 8-inch lid. Confirm compatibility of the polyethylene with the incoming chemistry and handle rinsate per the chemical's label.
UV and Heat
Give the sun-facing wall a yearly check for chalking. The tall vertical face takes a lot of direct sun, so in a harsh-UV region the exposed side may dull sooner — a shade structure or a westward wall extends the tank's working life. Plan it before the surface starts to degrade rather than after.
Alternatives and Comparisons
Two hundred twenty-five gallons is a niche capacity, so the comparisons are about shape and run time:
This versus a 160-gallon: if 160 gallons cycles too fast, the 225 buys roughly 40 percent more reserve on a barely larger footprint — the better choice when refill frequency, not floor space, is the issue. Both share the slender-column logic and the 2-inch outlet.
Tall-narrow versus a squat wide tank: choose this geometry only if you genuinely have the 77 inches of height. If headroom is tight, a wider tank of similar capacity is the safer fit even though it eats more floor.
Frequently Asked Questions
How long will the 225 Gallon Vertical Liquid Storage Tank last?
With a level base and use within the 1.5-SG and 120°F ratings, fifteen to twenty years is realistic. The defining risk on a tank this tall is foundation settlement creating a chronic lean — keep it plumb and the seamless wall, with no weld seams to fail, reaches the top of that range comfortably.
What chemicals can I store in this tank?
The 1.5-SG rating handles ag chemicals, liquid fertilizers, herbicides, pesticides, and treatment and industrial solutions up to 12.5 pounds per gallon. Not for fuels, solvents, or flammables. Polyethylene tolerates most acids and bases but not certain hydrocarbons and strong oxidizers — verify the exact chemical on a compatibility chart first.
What kind of foundation does a 225-gallon tank need?
Plan for about 2,875 pounds full, concentrated on a 31-inch base — a flat, level 4-inch gravel pad or a concrete slab. The small footprint relative to the weight means high pressure per square inch on the pad, so a truly level, continuous, solid base is essential to avoid the lean that tall tanks are prone to.
Does this tank come with a warranty?
Yes — the 3-year Norwesco warranty covers factory material and workmanship defects. It excludes over-spec products, unlevel or improper installation, chemical attack from incompatible liquids, and impact damage. On a tall tank especially, document a level install for any future claim.
Can I install this tank underground?
No — it's an above-ground vertical, not built to resist soil load, and a slender tall tank is particularly vulnerable to inward soil pressure. For below-grade storage choose a purpose-built underground cistern engineered for burial.
Buying Considerations
Confirm three things before ordering: that you have 77 inches of vertical clearance plus room to reach the lid, that your product is at or below 1.5 SG, and that your pad can carry nearly 2,900 pounds on a small circle without settling. The narrow footprint is the tank's strength and its one demand — it asks for a genuinely level, solid base in return. Ships LTL on a pallet; request a liftgate if you don't have a dock or forklift.
