12000 Gallon Plastic Water Storage Tank: Complete Buyer's Guide
The 12,000-gallon water tank is heavy-infrastructure potable storage — 141 inches across and 193 inches tall, a sixteen-foot-tall black cylinder holding nearly fifty-six tons of water full. The opaque black wall keeps light and algae out of the reserve, and the FDA-compliant resin keeps it drinkable.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.1 — the tank is engineered for liquids up to 1.1× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
Twelve thousand gallons is municipal-scale water security — the reserve for a small community system, a large agricultural operation, a fire-suppression supply, or any site that must guarantee water through long interruptions. It stands sixteen feet tall on a nearly twelve-foot base, a tall large-diameter cylinder that delivers enormous capacity while keeping a footprint a site can accommodate.
Norwesco rotomolds it as one continuous seamless piece of virgin linear polyethylene — no seam or weld across its entire sixteen-foot height — with FDA-compliant resin for potable and food-grade contact. At this scale, the seamless construction is critical: there is no fabricated joint to fail under fifty-plus tons of water, and no crevice to harbor biofilm in a large public-supply reserve. The wall is rated to a 1.1 specific gravity for water, and with sixteen feet of liquid head the base region sees very high hydrostatic pressure, so the wall is heavily graduated toward the bottom.
Black is the right color for a reserve this large: completely opaque, it blocks the light algae needs, keeping a huge stored volume clearer and reducing cleaning frequency, and it resists UV strongly for long outdoor life. Empty weight is 1,909 pounds; filled with water it loads the foundation with roughly 111,997 pounds, nearly fifty-six tons across the 141-inch base. Maximum service temperature is 120°F.
Plumbing is sized for scale: a 3-inch outlet with a 2-inch reducer for high flow that adapts to your distribution plumbing. The 22-inch lid provides large fill, vent, and man-access for inspecting a tank this size, sitting sixteen feet up. Norwesco's 3-year warranty applies, and the tank ships via dedicated freight carrier — contact us for delivery timeline and site-access requirements.

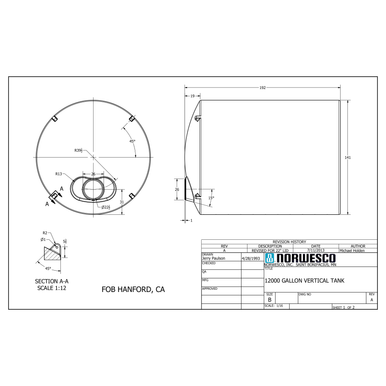

Technical Drawing
Official Norwesco technical drawing — 12000 Gallon Plastic Water Storage Tank
Key Features and Specifications
- 12,000-gallon capacity — sized for safe potable water storage
- Constructed from virgin linear polyethylene (HDPE) with 1.1 specific gravity rating — handles liquids up to 9.2 lbs/gal
- 193" tall x 141" diameter — compact vertical footprint
- 1909 lbs empty, approximately 111,997 lbs when full at rated specific gravity
- 3" fitting with 2" Reducer NPT outlet fitting — factory installed and leak-tested
- 22" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- UV-resistant black pigmentation provides maximum outdoor durability and inhibits algae growth in stored liquids
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Large tanks require professional installation. Ensure the pad is level within 1 inch across the full diameter and that all piping connections allow for thermal expansion
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
A fifty-six-ton full tank sixteen feet tall is a civil and rigging project. The foundation must be engineered, and setting an 1,900-pound, sixteen-foot shell upright requires professional equipment and planning.
Site Preparation
This tank requires a structurally engineered reinforced concrete foundation, designed by an engineer for nearly fifty-six tons concentrated on a 141-inch base with sixteen feet of liquid head bearing on the bottom. The subgrade must be engineered against settlement, and the slab poured dead level — on a sixteen-foot column even a small out-of-level condition creates large eccentric loads. Treat the foundation as the most important element of the project, and site it where drainage and access support a tank this size.
Placement and Connections
Setting this tank requires a crane and trained riggers — this is not a manual operation. Once positioned, plumb the 3-inch outlet for high-volume distribution, using the reducer where downstream plumbing requires. Use flexible connections at the bulkhead; thermal movement on a sixteen-foot column is significant and a rigid line on a fifty-ton-loaded fitting will fail. Build permanent, code-compliant platform access to reach the lid sixteen feet up — mandatory at this height.
Venting
A 3-inch outlet moves large volume, and a twelve-thousand-gallon tank exchanges an enormous air volume during fill and draw. Size the vent in the 22-inch lid generously to match peak flow — an undersized vent during a fast transfer can pull enough vacuum to catastrophically buckle the wall. A screened vent keeps insects, debris, and animals out of the public-supply reserve while the tank breathes.
Maintenance and Long-Term Care
At twelve thousand gallons, maintenance is a formal program — the consequences of a failure make documented, scheduled inspection essential, and the reserve serves people who depend on it being clean.
Quarterly Inspection Checklist
- Plumb and foundation: Verify the sixteen-foot column stands true against a surveyed vertical and that the engineered slab shows no cracking, settlement, or movement. Any base movement under fifty-six tons is a serious finding — involve the foundation engineer.
- Base region: Inspect the lower wall and wall-to-floor knuckle, which carry the maximum hydrostatic load from sixteen feet of water, for any bulge or distortion.
- Water quality: Check clarity through the 22-inch lid; in an opaque tank, any growth points to a compromised screen or seal admitting light or contaminants.
- 3-inch outlet, reducer, vent: Inspect all fittings for weeping — a large loss at this volume — and confirm the vent is clear and correctly sized.
Cleaning and Sanitizing
Sanitizing a public-scale reserve is a planned operation with applicable confined-space and fall-protection protocols for any man-access through the 22-inch lid. Drain the tank, clean the interior, then disinfect the walls and fittings with a chlorine solution — about a quarter cup of unscented household bleach per 15 gallons used — let it dwell, drain, and flush with fresh water until no chlorine odor remains. Follow any regulatory requirements that apply to your system's water quality.
UV and Weather
Black polyethylene resists UV strongly, so the sixteen-foot wall handles full sun. Inspect exposed faces yearly for chalking. A very large stored volume changes temperature slowly, moderating thermal swings; in extreme climates, manage the plumbing against freezing since exposed fittings remain vulnerable even when a huge reserve resists freezing solid.
Alternatives and Comparisons
At twelve thousand gallons, your decisions are about configuration and redundancy, not capacity steps:
One large tank versus multiple tanks: a single 12,000-gallon vessel means one foundation and fewer fittings, with the lowest per-gallon cost; multiple tanks let you take part of the system offline for cleaning or maintenance without losing the entire reserve, and contain a failure to a smaller volume. For a public or critical supply, redundancy is often worth the added foundations.
The 3-inch outlet and reducer: this tank's plumbing supports high distribution flow while adapting to existing pipework — an advantage over a smaller-outlet tank when feeding a system with real demand.
Other 12000-Gallon Options
Frequently Asked Questions
How long will the 12000 Gallon Plastic Water Storage Tank last?
With a structurally engineered foundation and normal use, fifteen to twenty years is realistic. At this scale the foundation is the dominant life factor — any settlement under fifty-plus tons is what shortens service. Black polyethylene's UV durability and the seamless, jointless wall carry it to the upper range when the base holds true and the reserve is sanitized on schedule.
What chemicals can I store in this tank?
This is a potable water tank — FDA compliant for drinking water and food-grade liquids, rated to a 1.1 specific gravity for water. It is not for aggressive chemicals, fuels, or solvents; those require a higher-specific-gravity tank verified for the chemistry. At public-supply scale, keep this tank strictly for water and follow your system's water-quality regulations.
What kind of foundation does a 12000-gallon tank need?
It requires a structurally engineered, reinforced concrete foundation designed for roughly 111,997 pounds on a 141-inch base with sixteen feet of liquid head — an engineer's calculation, not a rule of thumb. The subgrade must be engineered against settlement and the slab poured dead level. The foundation is the single most important element of the install.
Does this tank come with a warranty?
Yes — Norwesco's 3-year warranty covers factory material and workmanship defects. It excludes non-engineered or inadequate foundations, freezing damage, and impact or rigging damage. At this scale, retain full engineering and installation documentation for any claim.
Can I install this tank underground?
No — this is an above-ground industrial water tank, not engineered for burial, and a tank this size would be impractical to bury regardless. Soil pressure would deform the wall. For below-grade water storage, use a purpose-built underground cistern designed for soil load.
Buying Considerations
This is project procurement, not a simple order. The non-negotiables: a structurally engineered foundation in scope, a crane-and-rigging plan to set and stand the sixteen-foot shell, code-compliant permanent access to the lid, and freeze protection for the plumbing where winters demand it. Confirm the 3-inch outlet and reducer suit your distribution system and pump capacity. This ships by dedicated freight carrier — engage us early to coordinate delivery, site access, and the rigging your facility will require.
