11000 Gallon Plastic Water Storage Tank

A week of supply on one pad

At this size the tank is infrastructure. The buyer has counted a week's consumption and decided to hold it in one place: a livestock yard watering several hundred head, a grower feeding a block through the dry months, a remote camp or service yard where water arrives by tanker on a schedule, a plant holding process or wash water between shifts, a rural property building a real fire reserve. One vessel instead of four means one pad, one draw-off, one level to read and one connection to protect from freezing. The fire water reservoir guide for rural and remote sites covers the draft connection, sizing discipline and freeze protection; the water reuse storage guide covers grey water, rainwater and condensate at plant scale.

Everything else about this tank follows from 91,740 lb standing on a 144 inch circle. That is a foundation, not a pad: flat, level and continuous under the entire floor, built well out past the rim, drained so nothing can undermine an edge, and designed by someone who has measured the bearing capacity of your ground rather than assumed it. Our concrete pad sizing guide for above ground polyethylene tanks sets out where a slab stops being a slab and becomes a structural design, and at this capacity that line is not theoretical. The hydrostatic test guide covers the first fill: fill in stages, watch the pad for settlement and the fitting for weeps, and hold before the tank goes into service. At 167 inches the crown is nearly fourteen feet up, so the manway is a fixed ladder and platform job and the site needs overhead clearance for the delivery as well as the tank. Leave a working circle all the way round. Then size it honestly: run 11000 gallons against your measured weekly draw and the tanker or well refill interval in the tank sizing calculator, and take the reserve and freeboard allowances from the tank sizing guide. At this capacity the cost of being wrong is a second foundation.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. With fourteen feet of water above it, the outlet valve and the first length of pipe need their own support and a flexible connector; the fitting carries water, not hardware or pipe strain.
2. Inlet. None installed at the factory. The fill line usually enters through the manway or through a bulkhead fitted on site; tell us the pipe size and we will put the fitting on the same order.
3. Manway. A 22 inch threaded vented manway on top, large enough for cleaning access and a float or level sensor. The vent lets the tank breathe as the level moves; never seal it.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet position and the overall profile for the foundation design.

Sizes and colours nearby

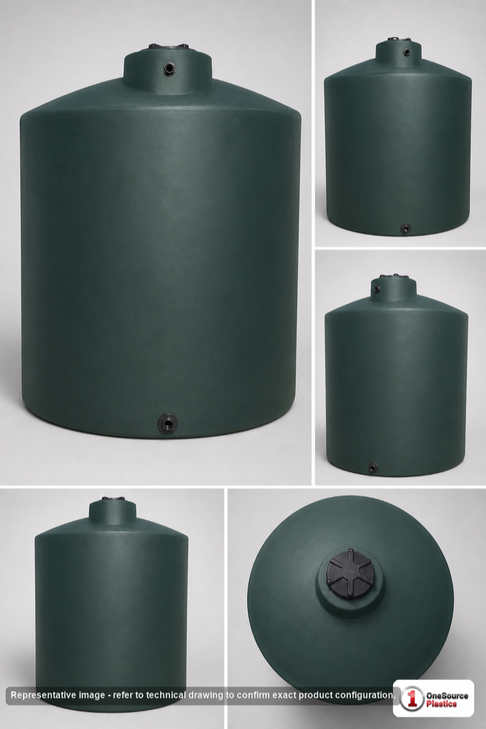

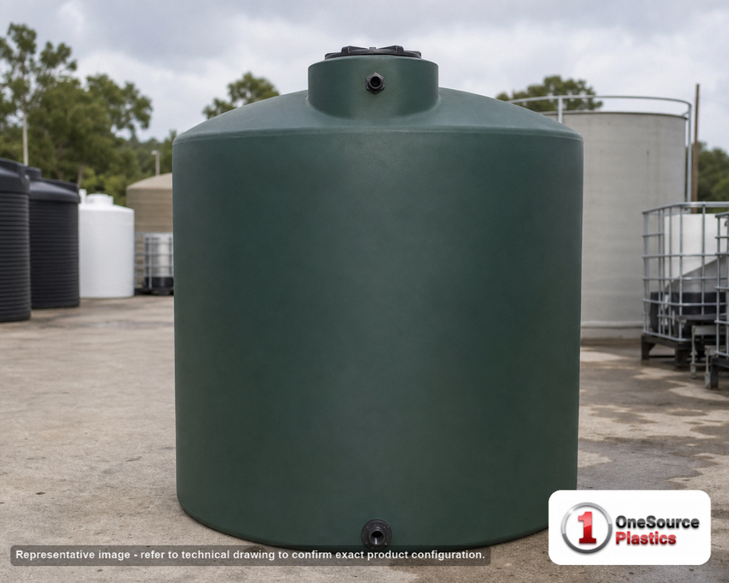

The same tank in dark green: the 11000 gallon dark green vertical water tank. One step down, the 10000 gallon dark green vertical water tank; one step up, the 12000 gallon plastic water storage tank.

Shipping and receiving

The tank ships as oversize freight from Norwesco's Albertville, Alabama plant on a dedicated trailer, 144 by 144 by 167 inches; Norwesco quotes the shipping weight at 1628 lb, lighter than the empty weight above, so plan the lift on the heavier figure. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and for a tank this size we will confirm the route and the unload with you before it ships. This is a crane or large telehandler unload with slings under the tank, never a chain round the manway. Check the part number against 44013 on the bill of lading, walk the whole shell for transit damage before signing, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
