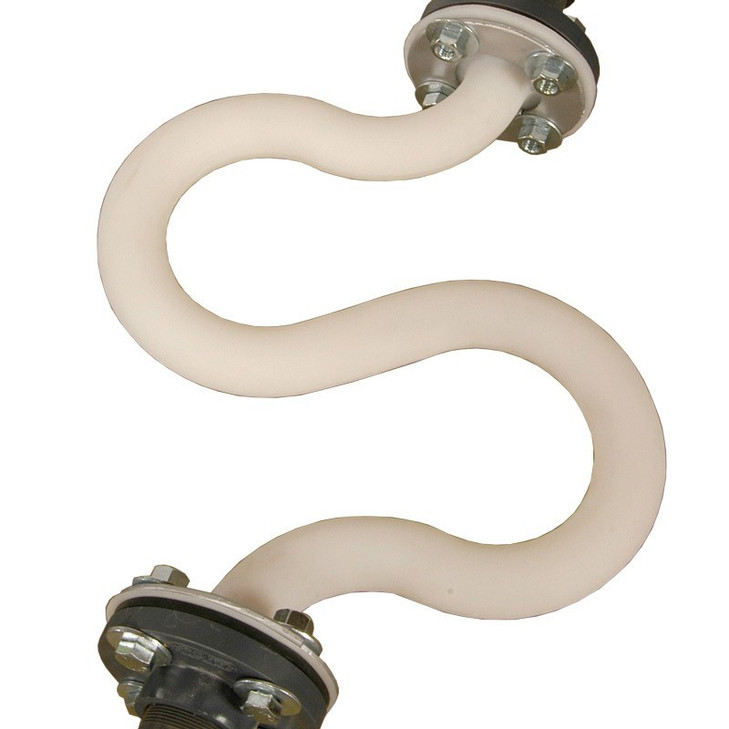

A 2 inch Flexmaster flange connector assembly in crosslinked polyethylene, for crosslinked tanks and tougher liquids
Snyder part number 5390100N99601 is the crosslinked polyethylene version of Snyder's 2 inch Flexmaster flange connector assembly. Flexmaster is Snyder's name for the part. It measures 21 inches long, 19 inches wide and 6 inches tall, weighs 2 lb, and ships by UPS in a 20 by 20 by 20 inch carton. It makes a 2 inch connection between a tank and the pipe or hose that takes liquid from it. Choose this version when the tank it goes on is crosslinked polyethylene, or when the liquid calls for a crosslinked part.
Matching it to an XLPE tank? Call 866-418-1777 with the tank part number and the chemical, or add it to your cart above.
Why the resin is the decision
The size of this part is fixed at 2 inch. The choice that matters is the material. Crosslinked polyethylene is the resin Snyder uses for many of its chemical tanks, and a connector on one of those tanks is usually specified in the same family so the whole wetted path is one material. Snyder also makes this assembly in high density linear polyethylene under its own part number, the usual pick for linear polyethylene tanks and everyday liquids. If you are not sure which resin your tank is, read the tank part number off the label or the paperwork and tell us; we will confirm the right connector with Snyder.
What to check before you buy
- The tank. No list of tanks it fits comes with this part number. Give us the tank make and part number and we confirm the fit before it ships.
- The liquid. Tell us the chemical and its strength. We check it against the material with Snyder, along with any gasket that comes with the assembly.
- The ratings. No pressure, temperature or bolt figures are listed with this part number. If your design depends on one, ask and we will get Snyder's answer in writing.
- The drawing. Snyder's drawing for 5390100N99601 is linked under Technical Drawing on this page. Check it against your tank's outlet before planning the pipe.
Installing it
Lay the pieces out on a bench and match them to the drawing first. Dry-fit, line everything up, then tighten evenly and in stages so the joint seats flat. Hang the valve and pipe from their own support, not from the connector. Run a water test before the first chemical fill, and check the joint again after the first full cycle.
Shipping
It ships by UPS (NMFC 95190) at 2 lb from the nearest of Snyder's plants in Lincoln, Nebraska, Marked Tree, Arkansas, Merced, California and Philippi, West Virginia. Order it with the tank and both arrive together.
Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5390100N99601.
See this tank
Product video. Watch the Snyder Industries 2 Inch Flexmaster XLPE Flange Connector Assembly video (66 seconds) with dimensions, fittings and shipping notes.
