A 3 inch PVC U-vent assembly for the Snyder NexGen D2 cistern

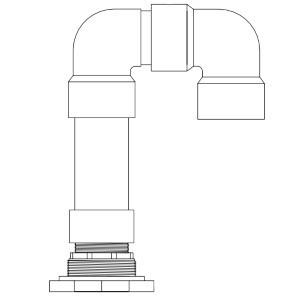

Snyder part number 34701333 (our SKU SII-34701333) is a 3 inch cistern U-vent assembly in PVC, named by Snyder for its NexGen D2 tank. The assembly is about 6 inches long, 3 inches wide and 4 inches tall, and it weighs 4 lb. A U-vent rises from the top of the tank, turns over through a half bend and points its open end at the ground, so the tank can breathe while rain, snow and runoff fall past the opening instead of into it. No screen, thread form, pressure rating or fit list for other tanks comes with this part, so if your cistern is not a NexGen D2, tell us the model and the opening before you order.
Replacing a vent, or adding one to a new cistern? Call 866-418-1777 with the tank model and the opening size, or get freight to your ZIP and add it to your cart above.
Why a buried cistern needs a vent
Every time a cistern fills, the air inside has to go somewhere, and every time a pump draws it down, air has to come back in. On an underground rainwater tank the vent is often the only opening above grade, so it is also the one place surface water and leaves can reach the stored water. The turned-down end is the guard. Set it above the finished grade and above any water that pools after a storm, and keep mulch, snow piles and mowers clear of it.
What to check before you buy
- The tank. The name ties this assembly to the NexGen D2. On any other cistern, confirm with us that the vent opening is 3 inch before you order.
- The material. PVC is rigid. It does not flex to take up a misaligned riser, so line the pipe up straight before you glue or tighten anything.
- The drawing. The drawing for 34701333 is linked under Technical Drawing on this page. Check it against your riser before you cut pipe.
Shipping and receiving
This part ships by UPS under NMFC 95190, in a 20 by 20 by 20 inch carton at 4 lb. Snyder ships it from Lincoln, Nebraska; Marked Tree, Arkansas; Merced, California; or Philippi, West Virginia. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight. Order it with the cistern so the vent is on site the day the tank goes in. When the carton arrives, check the part number against 34701333 and look the bend over for cracks before the backfill goes in.
Questions about the fit? Call 866-418-1777 with the riser measurement and the tank model.
Freight and documents
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 34701333.
See this tank
Product video. Watch the Snyder Industries 3 CISTERN U VENT ASSEMBLY NexGen D2 tank video (56 seconds) with dimensions, fittings and shipping notes.
