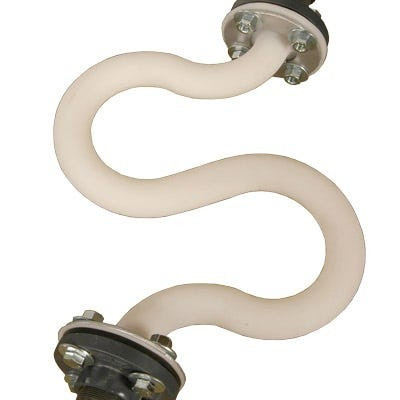

A 3 inch Flexmaster XLPE flange connector assembly from Snyder
Snyder Industries part number 5390000N99601 is the 3 inch Flexmaster flange connector assembly that Snyder names as its XLPE version, XLPE being crosslinked polyethylene. Flexmaster is Snyder's product name for the part. It puts a 3 inch flanged connection where you need one, so a flanged valve, pump or pipe bolts up to it instead of threading on. The assembly is 3 inches long and weighs about 2 lb, and it ships by UPS. Snyder's drawing for the part is linked on this page under Technical Drawing; use it to check the flange against what it will meet.
Fitting it to an XLPE tank? Call 866-418-1777 with the tank part number and the liquid, or add it to your cart above.
Where it is used
A flange is the usual way to make a 3 inch connection that has to come apart for service. A flanged valve or pump can be unbolted and lifted out without turning the rest of the line, and the faces line up without twisting the pipe. Crosslinked polyethylene is the resin Snyder offers for tougher chemical service, so an XLPE connector is the natural match for an XLPE tank holding a chemical. Before you order, check the liquid in our chemical compatibility guide, and ask us if it is not on the list.
What to check before you buy
- Size. 3 inch. The valve, pipe or pump flange on the other side has to match.
- Bolt pattern. The flange standard and bolt pattern are not stated for this assembly. Compare Snyder's drawing on this page with the mating flange, or send us a photo with a tape measure across it and we confirm the match with Snyder.
- Tank. Give us the tank part number and we confirm this assembly suits it, and that the XLPE version is the one you want, before it ships.
- Liquid, pressure and temperature. No pressure or temperature rating is stated for this part. Tell us what the line carries and how hot it runs, and we get the answer from Snyder.
Installing it
Lay out the whole run dry before anything is tightened. The flange faces should meet square without anyone pulling on the pipe; if the bolts only line up under force, fix the run, because a plastic joint held in strain is the one that weeps later. Bring the bolts down evenly in a crossing pattern, a little at a time on each. Hang the valve and the first length of pipe from their own support so the connector carries liquid, not hardware. After the first fill with water, look at the joint again once everything has settled.
Shipping
The assembly ships by UPS at about 3 lb, under NMFC 95190, from the nearest of Snyder's plants in Lincoln, NE, Marked Tree, AR, Merced, CA and Philippi, WV. If it is going on a new tank, put both on the same order so the connector is on hand the day the tank is set. When it arrives, check the part number 5390000N99601 on the packing slip before it goes on the tank.
Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5390000N99601.
See this tank
Product video. Watch the Snyder Industries 3 Inch Flexmaster XLPE Flange Connector Assembly video (66 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
