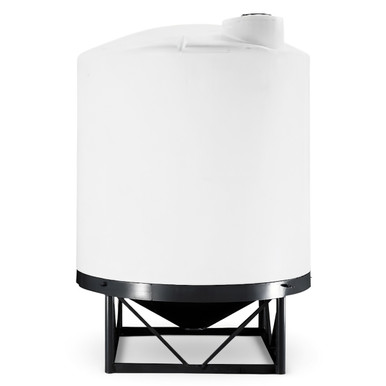

10000 Gallon 30 Degree Cone Bottom Tank: Complete Buyer's Guide
The 10,000-gallon 30-degree cone bottom tank is industrial-scale full-drain processing — 141 inches across and 190 inches tall, with a steep 30-degree cone that sheds even thick slurries completely to the apex. Rated to a 1.5 specific gravity, it's a major batch and mixing vessel for operations running large volumes of demanding chemistry.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
At ten thousand gallons with a steep 30-degree cone, this is process equipment at the top of the poly cone-tank range. The 30-degree angle is the aggressive-drain choice: it sheds viscous products, heavy slurries, and settling solids that a shallower cone would leave clinging, funneling the entire batch to the apex outlet for genuinely complete discharge. Combined with ten thousand gallons of capacity, that makes it suited to large-scale mixing, blending, and chemical batch processing where both volume and clean drainage matter.
Norwesco rotomolds it as a single seamless piece of virgin linear polyethylene rated to a 1.5 specific gravity, handling process liquids up to 12.5 pounds per gallon. At this scale the seamless construction is critical — no seam to abrade under large-scale agitation, no fabricated joint to fail under enormous load, and no crevice to trap product between batches in a tank this large. The 141-inch diameter provides a broad surface for industrial top-entry mixing.
The cone-tank rule scales up with the stakes: with no flat base and a steep cone, this tank must be supported in a stand engineered for the full loaded weight, cradling the sidewall and transferring the immense load through the stand's structure — the apex never bears weight. Empty, the tank weighs 2,156 pounds; filled with a 1.5-SG product it carries roughly 127,256 pounds — over sixty tons — every pound of which a structurally engineered stand and its foundation must safely support. This is not a place for an improvised or marginal stand.
The bottom outlet is a 3-inch NPT fitting at the apex, factory-installed and leak-tested and sized to discharge large batch volumes at a workable rate. The 16-inch lid serves filling, venting, mixer mounting, and inspection — sitting high atop a fifteen-foot-plus tank on its stand. The translucent natural-white wall lets you monitor a large process volume. Maximum service temperature is 120°F. Norwesco's 3-year warranty applies, and the tank ships via dedicated freight carrier due to its size — contact us for delivery timeline and site-access requirements.
Technical Drawing

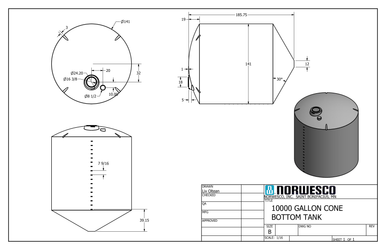

Official Norwesco technical drawing — 10000 Gallon 30 Degree Cone Bottom Tank
Key Features and Specifications
- 10,000-gallon capacity — sized for full-drain mixing and batch processing
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 190" tall x 141" diameter — compact vertical footprint
- 2156 lbs empty, approximately 127,256 lbs when full at rated specific gravity
- 3" NPT outlet fitting — factory installed and leak-tested
- 16" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Must be installed on the manufacturer-supplied or compatible stand rated for the full loaded weight. Never rest a cone bottom tank directly on its apex
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
Installing a sixty-ton full process tank on a steep cone is a structural-engineering and rigging project. The stand and its foundation must be engineered together, and setting a 2,156-pound, fifteen-foot-plus shell into a tall stand requires professional equipment.
Stand and Foundation
This tank requires a stand structurally engineered for the full loaded weight — roughly 127,256 pounds — that cradles the tank around its sidewall and transfers the load through the stand to a foundation engineered for those concentrated leg loads. The 30-degree cone is tall, so the stand is correspondingly tall, which raises the lid and mixer to industrial heights and adds to the engineering. Treat the stand and its concrete foundation as a single engineered system, designed by a qualified engineer; never rest the tank on the apex or use an under-rated stand. The whole assembly must be level so the steep cone drains evenly.
Placement and Connections
Plumb the 3-inch apex outlet with a full-port valve at the cone to preserve complete drainage of large batches. The tall stand provides ample clearance for a substantial valve and discharge manifold below. Use flexible connections to absorb tank flex and the vibration of large-scale agitation, and match all wetted components to the process chemistry. Provide permanent, code-compliant access to reach the lid and mixer at the top of a tall stand.
Venting and Mixing
A 3-inch outlet discharging ten thousand gallons can pull a large air volume fast, so size the vent in the 16-inch lid generously to prevent damaging vacuum during a quick bottom-drain. For industrial top-entry mixing, support the mixer on engineered framing or a bridge sized for its load and torque — never on the lid — and verify the impeller geometry sweeps the deep 30-degree cone effectively. Fit a properly sized pressure/vacuum vent rated to any off-gassing chemistry and the flow.
Maintenance and Long-Term Care
At ten thousand gallons on an engineered stand, maintenance is a formal program — the consequences of a stand or tank failure at sixty tons make documented, scheduled inspection essential. This is heavy chemical-process equipment.
Quarterly Inspection Checklist
- Engineered stand: Inspect the stand thoroughly for corrosion, cracked or fatigued welds, loosened fasteners, and any leg settlement. The stand carries over sixty tons — any structural finding is serious and warrants the engineer's review. Confirm the assembly remains level for even cone drainage.
- Cone and apex: Inspect the steep cone wall and the high-stress apex region for distortion, and confirm the tank is cradled correctly with no load on the apex.
- 3-inch outlet: Check the apex fitting and valve for weeping or product buildup — a large loss and a containment concern at this volume.
- Vent and mixer framing: Confirm the vent is clear and correctly sized, and that the mixer support framing is sound.
Cleaning and Changeover
The 30-degree cone's aggressive drainage is its biggest advantage at scale — even thick slurries discharge completely through the apex, leaving little to clean. Between products, drain fully via the apex valve, then flush per the outgoing chemical's procedure; for any man-access through the 16-inch lid at height, observe confined-space and fall-protection protocols. Verify polyethylene compatibility before introducing new chemistry, and manage rinsate per the label and your facility's permits.
UV and Heat
Large process tanks often live partly outdoors; inspect exposed surfaces yearly for chalking. Stay within the 120°F service limit, paying particular attention if large-scale mixing or an exothermic reaction adds heat to a sizable batch. Adequate ventilation is essential for off-gassing chemistry around a tank this large.
Alternatives and Comparisons
At industrial cone-tank scale, the decisions are cone angle and consolidation:
30-degree versus a shallower cone: the steep 30-degree cone is the choice for thick, settling, or clinging products that must drain completely — it pays for its added height and taller stand by leaving the tank essentially self-emptying. For thin, free-flowing process liquids, a 15- or 20-degree cone drains adequately at less height and lower stand cost.
One large vessel versus several: consolidating into a single 10,000-gallon batch tank maximizes throughput per footprint and per stand; multiple smaller cone tanks let you run different chemistries in parallel and contain a failure to a smaller volume. Match the choice to your process flow and risk posture.
Other 10000-Gallon Options
Frequently Asked Questions
How long will the 10000 Gallon 30 Degree Cone Bottom Tank last?
Fifteen to twenty years is realistic with a structurally engineered, level stand and use within the 1.5-SG and 120°F limits. At this scale the engineered stand and its foundation are as critical as the tank — any structural weakness there is the dominant risk — while the seamless wall, free of seams to abrade under large-scale mixing, reaches the upper range when supported correctly.
What chemicals can I store in this tank?
Rated to a 1.5 specific gravity, it handles process chemicals, blends, slurries, and treatment solutions up to 12.5 pounds per gallon, with the steep 30-degree cone particularly suited to thick and settling products. Not for fuels, solvents, or flammables. At this volume, rigorous compatibility verification against a chart is essential — poly is attacked by certain hydrocarbons and strong oxidizers.
What kind of foundation does a 10000-gallon tank need?
It requires a structurally engineered stand rated for the full loaded weight (roughly 127,256 pounds) that cradles the tank and transfers the load through the stand to an engineered foundation — never resting on the cone apex. The stand and its concrete foundation should be designed together by a qualified engineer. The support system, not a simple pad, is the critical element.
Does this tank come with a warranty?
Yes — Norwesco's 3-year warranty covers factory material and workmanship defects. It excludes over-spec products, improper or under-engineered support, incompatible-chemical attack, and impact or rigging damage. Retain full engineering documentation of the stand and foundation for any claim.
Can I install this tank underground?
No — this is an above-ground industrial process vessel that drains through a steep bottom cone while supported in an engineered stand; it cannot be buried. For below-grade storage, use a purpose-built underground cistern designed for soil load.
Buying Considerations
This is engineered-equipment procurement. The non-negotiables: a structurally engineered stand and foundation, designed together for over sixty tons, in your project scope; a rigging plan to set the fifteen-foot-plus shell into a tall stand; code-compliant permanent access to the lid and mixer; and verification that your process liquid is at or under 1.5 SG before committing ten thousand gallons. Confirm the 3-inch outlet and your mixer suit your batch throughput. It ships by dedicated freight carrier — engage us early to coordinate delivery, site access, and the rigging your facility will need.
