10000 Gallon Vertical Liquid Storage Tank

Where it goes

Ten thousand gallons is where a tank stops being a reserve and becomes infrastructure: a ranch or dairy water supply, a bulk fertilizer or crop protection mix site, a fire reserve for a rural business, a process or reuse buffer in a plant. At 160 inches tall on a circle nearly twelve feet across it keeps a sensible proportion, with the manway reachable from a short ladder. Three things to settle before it arrives. The pad: level, continuous, carrying the whole floor, sized with our concrete pad sizing guide, because full of water the floor carries 83400 lb of liquid plus the tank. The vent: a tank this size breathes a lot of air when a pump fills or empties it fast, and our atmospheric vent capacity guide works the numbers for verticals up to this size. The job: if it is fire water, the fire water reservoir design guide covers sizing discipline and freeze protection. The complete buyers guide to this tank pulls it together, and the tank sizing calculator and tank sizing guide settle the volume first.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall, with a 2 inch reducer in it. Connect 2 inch as supplied, or remove the reducer for the full 3 inch port; on a tank this size most buyers want the 3 inch. Support the valve and the first run of pipe so the fitting carries liquid, not hardware.
2. Manway. A 22 inch threaded vented manway on top: fill point, vent and a wide enough opening for a pump drop, a float or a cleaning crew's gear.

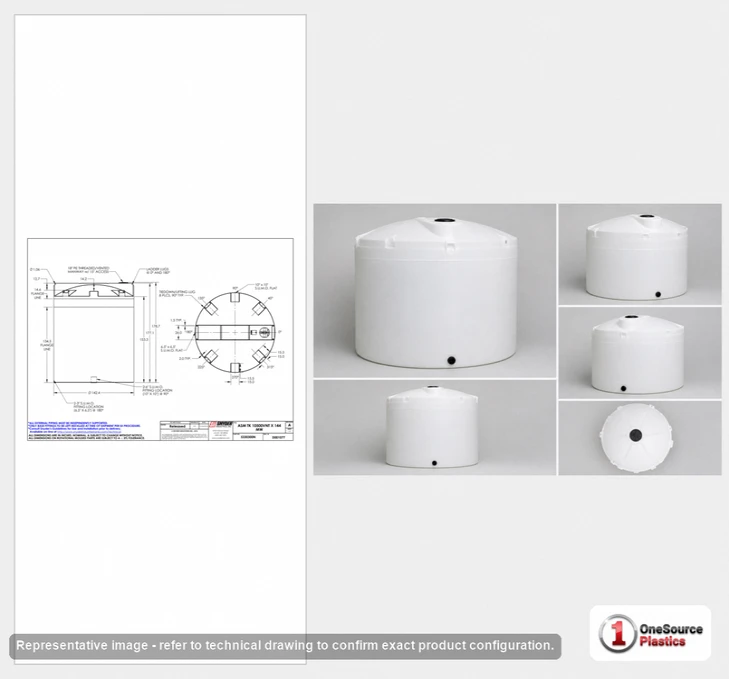

3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and manway position for your layout.
4. Liquid. Water and most liquid fertilizers sit inside the 1.5 specific gravity rating. For heavier liquids Norwesco makes a 1.9 rated version of this shell, listed below. Tell us what is going in and we will confirm the material suits it.

Sizes nearby

Same shell rated for liquids up to 1.9 specific gravity: the 10000 gallon blue heavy duty vertical tank 43130 and the 10000 gallon black heavy duty vertical tank 43130B, which is also the black option on this footprint. One size down on the same circle, shorter: the 9000 gallon black vertical tank 40786. One size up on a narrower, much taller shell: the 10500 gallon black vertical tank 47638B.

Shipping and receiving

The tank ships as oversize freight (Norwesco's freight class is OVS) from the nearest of Norwesco's Fairfield, Texas, Hanford, California, St. Bonifacius, Minnesota and Washington Court House, Ohio plants, 160 by 141 by 141 inches and 1960 lb on the truck. A tank this wide travels on an open trailer, so plan on a forklift, a loader with forks or a crew with straps, and a clear route from the truck to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check the part number against 43128 on the bill of lading, look over the shell for transit damage before you sign, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
