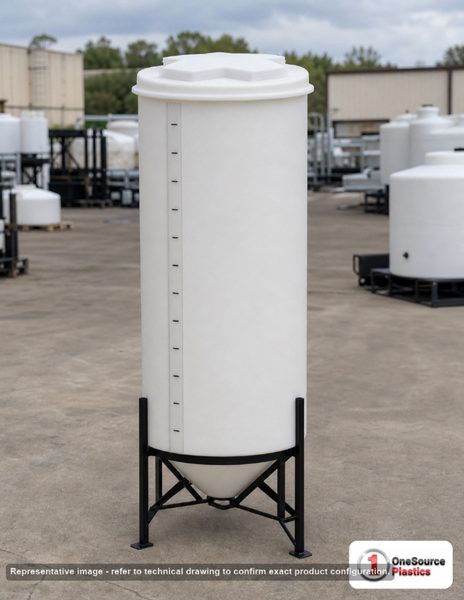

Tank Field-Trim Bulkhead Sizing: 1.5-inch vs 2-inch vs 3-inch Drain-Time Math

The bulkhead fitting is the most underestimated specification on a tank. Buyers see "2-inch outlet" on the spec sheet, assume it is plenty, and discover during commissioning that gravity drain takes four times as long as the production schedule allows. Or that the chemistry transfer pump cavitates because the suction-side bulkhead size is below the pump's NPSH requirement. Or that the bulkhead is technically the right size but the gasket material is wrong, leaks within 90 days, and forces a tank-out for re-fitting. This guide turns bulkhead specification into a numbers-driven decision keyed to drain-time math (Torricelli's equation modified for orifice coefficient), pump NPSH requirements, and gasket-material chemistry compatibility.

OneSource Plastics carries bulkhead fittings across the full size range from 1/2 inch to 6 inch in standard duty, heavy duty, and chemistry-rated configurations. Real catalog SKUs cited throughout this guide come from Norwesco, Snyder Industries, Chem-Tainer, Ronco, and aftermarket compatible parts. The math applies to any tank manufacturer.

The Drain-Time Equation

For a vertical tank with a bottom or side bulkhead at height z above the bulkhead centerline, the time to drain from initial liquid height H to final height h follows from Torricelli's law modified for orifice discharge coefficient:

t = (2 × A_tank / (Cd × A_outlet × sqrt(2g))) × (sqrt(H) - sqrt(h))

Where:

• A_tank = tank cross-sectional area (sq ft).
• A_outlet = outlet cross-sectional area (sq ft) = pi × D^2 / 4.
• Cd = discharge coefficient (typically 0.6-0.8 for standard bulkheads, 0.8-0.9 for heavy-duty with rounded entry).
• g = 32.2 ft/s^2.
• H, h = liquid heights above outlet centerline (ft).

For the 1.5, 2, and 3-inch outlet sizes the relevant areas are:

• 1.5-inch outlet: A = 0.01227 sq ft (1.767 sq in).
• 2-inch outlet: A = 0.02182 sq ft (3.142 sq in).
• 3-inch outlet: A = 0.04909 sq ft (7.069 sq in).

Drain time scales as the inverse of outlet area. Going from 1.5 inch to 2 inch cuts drain time by 44%. Going from 2 inch to 3 inch cuts drain time by another 56%. Going from 1.5 inch to 3 inch cuts drain time by 75%. These are 4x compounded improvements that get missed when buyers default to "2-inch outlet because that's what the predecessor had."

Worked Drain-Time Examples

Example 1: 1,500-Gallon Vertical Water Tank, 96-Inch Diameter

• Tank: representative vertical HDPE 1,500 gallon, 96-inch diameter (50.27 sq ft cross-section).
• Initial fill: 4 ft above outlet centerline.
• Outlet at base, drain to atmosphere.
• Cd = 0.65 (standard bulkhead).

Drain time to empty (H = 4, h = 0):

The 3-inch outlet drains the same tank in a quarter of the time as the 1.5-inch. If the production schedule needs the tank emptied in under 15 minutes (a common process spec), only the 3-inch hits the target by gravity alone. The 2-inch requires pumping to meet the schedule.

Example 2: 2,500-Gallon Vertical Cone-Bottom Tank, 120-Inch Diameter

• Tank: representative XLPE cone-bottom 2,500 gallon, 120-inch diameter (78.54 sq ft cross-section), 30-degree cone angle.
• Initial fill: 4.5 ft above the cone-tip outlet.
• Outlet at cone tip with rounded entry.
• Cd = 0.78 (heavy-duty bulkhead with rounded entry, e.g., Norwesco MPN 63683 2-inch heavy-duty class).

Example 3: 850-Gallon Sulfuric Acid Tank, Snyder MPN 1810000N30 Class

• Tank: 850 gallon HDPE vertical, sulfuric resin #880046 (Snyder MPN 1810000N30 representative).
• 78-inch diameter (33.18 sq ft cross-section).
• Initial fill: 3.5 ft above outlet.
• Cd = 0.68 (chemistry-rated bulkhead with Viton gasket).

For sulfuric service the 1.5-inch is too restrictive for typical batch turnover; 2-inch is standard and 3-inch is correct for high-throughput process lines.

The Decision Matrix

Standard Duty vs Heavy Duty

Within a given size, bulkhead fittings come in standard-duty and heavy-duty configurations:

• Standard duty (e.g., Norwesco MPN 63481 2-inch standard installed): single-piece flange bonded to the tank wall with a backing-ring seal. Adequate for water and benign service. Lower cost.
• Heavy duty (e.g., Norwesco MPN 63683 2-inch heavy-duty installed): reinforced flange with thicker wall, metal backing plate, and chemistry-rated gasket option. Required for vibration-prone, high-pressure-spike, or chemistry-sensitive service. Higher cost, longer life.

Standard duty is appropriate for water service and slow-feed chemistry. Heavy duty is appropriate for chemistry feed pumps, transfer line connections, and any service where the bulkhead sees mechanical load from process piping.

Material and Gasket Selection

The bulkhead body and gasket materials must be chemistry-compatible. Standard combinations:

Vent fittings get specified the same way: Snyder MPN 34700259 (3 inch U-vent EPDM) or MPN 34700263 (3 inch U-vent Viton) for chemistry compatibility on the vapor side.

Installation: Field Trim vs Factory Installed

Bulkhead fittings come three ways:

1. Factory installed: the manufacturer drills the tank wall and bonds the bulkhead at the factory. Examples: Norwesco MPN 60124 (1.5-inch installed), MPN 63481 (2-inch standard installed), MPN 63683 (2-inch heavy-duty installed). Pros: leak-tested, warranty on installation. Cons: location is fixed; cannot be moved without re-tooling.
2. Field installed (loose): the bulkhead ships as a kit; the customer or installer drills and seals the tank wall on-site. Examples: many Norwesco, Snyder, and Chem-Tainer parts ship loose for field-trim. Pros: location flexibility; lower cost for the part. Cons: leak-test responsibility shifts to installer; warranty on bulkhead seal depends on procedure.
3. Aftermarket: universal bulkhead bodies (e.g., Norwesco MPN 62299 3-inch poly bulkhead, Ronco MPN F3BH 3-inch, MPN TF300V 3-inch poly with Viton) for retrofits or replacement of failed factory parts.

For new procurement we recommend factory-installed on the primary outlet (the highest-flow / process-critical fitting) and field-trim for secondary fittings (drains, vents, sample taps). The cost premium for factory installation is typically $40-150 per fitting; the warranty value is worth more than that on critical service.

Drilling and Sealing the Tank Wall (Field Trim)

If you are field-trimming a bulkhead, follow the manufacturer's procedure exactly. The general sequence:

1. Mark the centerline. Verify minimum offset from tank wall edge, dome curvature, and adjacent fittings (typically 4-inch minimum spacing).
2. Drill a pilot hole. 1/4 inch is standard.
3. Use a hole saw matched to the bulkhead specification. Hole-saw diameter must be 1/8 inch larger than the bulkhead OD nominal for a typical PE bulkhead body, or per manufacturer drawing.
4. Deburr the hole inside and out. Sharp burrs cut the gasket on installation.
5. Clean the gasket seating surface with isopropyl alcohol; do not use solvents that swell PE.
6. Install gasket dry (or with manufacturer-specified lubricant). Some Viton gaskets require a thin coat of silicone-based lubricant; never use petroleum-based.
7. Tighten the backing nut to manufacturer torque spec. Standard PE bulkheads typically 12-25 ft-lb depending on size; over-tightening crushes the gasket and causes leak path.
8. Pressure-test or fill-test before commissioning. Hold for 24 hours. Inspect for weep at the gasket interface and at the threaded outlet.

Common Failure Modes

Failure Mode 1: Wrong gasket material on chemistry service

EPDM gasket on chlorine bleach: hardens and cracks within 90-180 days. Symptoms: gasket leak, white precipitate at flange. Fix: replace with Viton (FKM) gasket. Reference replacement parts include Norwesco MPN 60351 (Viton gasket for 3-inch bulkhead) and Snyder MPN FAN300VG (Viton gasket for 3-inch bulkhead).

Failure Mode 2: Outlet too small for drain time spec

2-inch outlet on a 2,500-gallon batch tank with 15-minute drain spec. Initial gravity drain rate insufficient; pump must be added or schedule extended. Fix: upsize at procurement, not retrofit. Retrofit upsize requires draining tank, drilling new hole, plugging old hole, leak-testing.

Failure Mode 3: Outlet too large for downstream piping

3-inch outlet on a tank feeding 1-inch process line. Reduction creates turbulence and accelerated wear at the reducer. Tank-to-pipe size matching matters as much as tank-to-process matching.

Failure Mode 4: Bulkhead location interferes with stand or strap

Side-fitting bulkhead at the height where the stand strap attaches, or where the sand-pad foundation creates a point load. Verify clearance with the tank manufacturer drawing before drilling.

Failure Mode 5: Over-torqued installation

Crushed gasket creates immediate leak path and damages the sealing surface. Use a torque wrench; do not "tighten until it stops."

Bulkhead Sizing for Pump Suction

If a pump is downstream of the bulkhead, the bulkhead size must equal or exceed the pump suction nominal size. NPSH (net positive suction head) calculations require minimum suction line area to avoid cavitation. Centrifugal pumps cavitate when suction-line pressure drops below the liquid's vapor pressure; undersized bulkheads contribute to suction-line pressure loss.

Rule of thumb: bulkhead nominal size = pump suction nominal size, with full-port valve between. Reducing bushings on the suction side are a common pump-failure cause.

How OneSource Specs Bulkheads

For new tank procurement we ask the seven questions:

1. Process drain-time spec (minutes) for full or partial drain?
2. Downstream piping size and class?
3. Pump (if any) and suction nominal?
4. Stored chemistry (drives gasket and body material)?
5. Required certifications (NSF 61, IAPMO)?
6. Static or dynamic load on the bulkhead (process piping vibration, line stress)?
7. Installation responsibility (factory installed vs field trim)?

The seven answers resolve into a specific catalog SKU recommendation. For factory-installed primary outlets we typically recommend Norwesco MPN 60124 (1.5-inch), MPN 63481 / 63683 (2-inch standard / heavy duty), or MPN 62299 (3-inch). For chemistry-rated PVC bodies we typically recommend Snyder MPN 34200016 (3-inch SxT EPDM), MPN 34700239 (3-inch SxT Viton), MPN 34700259 / 34700263 (3-inch U-vent EPDM/Viton), MPN 34100053 (4-inch PP threaded EPDM), and MPN 34701346 (3-inch PE Viton). For replacement parts we recommend Norwesco MPN 60351 (Viton gasket Type B), Snyder MPN FAN300VG (Viton gasket 3-inch), and the universal 3-inch options MPN TF300 (PP), MPN TF300V (PP Viton), and MPN F3BH (Ronco). For aftermarket compatible we recommend Chem-Tainer MPN FA0300MO (3-inch PVC installed) and MPN FAN300MB (3-inch PP installed) / MPN FAN300PB (3-inch PP loose).

Listed at BC catalog prices; LTL freight quoted separately per ZIP via the Freight Estimator or 866-418-1777.

Internal Resources

• Bulkhead vs Welded vs Threaded Fitting Selection
• Cone-Bottom Drain Time Engineering
• Fitting and Bulkhead Sizing
• Tank Material Selection
• Polyethylene Resin Decision Tree
• Chemical Compatibility Database
• Specialty & Metal Fabrication
• Freight Cost Estimator

Source Citations

• ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks (Section 8 outlet / vent sizing).
• ASTM F2562 — Specification for Heat Distortion Properties of Plastic Pipe.
• ASTM D2000 — Classification System for Rubber Products (gasket-material specification framework, Viton FKM and EPDM classes).
• NSF/ANSI 61 — Drinking Water System Components: Health Effects.
• NSF/ANSI 372 — Drinking Water System Components: Lead Content.
• NFPA 22 — Standard for Water Tanks for Private Fire Protection.
• FDA 21 CFR 177.1520 — Olefin polymers (food-contact polyolefin).
• ISO 22241-3 — Diesel Engines NOx Reduction Agent AUS 32 — Part 3: Handling, Transportation, and Storage.
• 40 CFR 503 — Federal biosolids regulations (septic context).
• OneSource Plastics master catalog data, 2026-03-26 snapshot (9,419 products).

Recommended Tanks for This Guide

Live pricing, updated automatically · estimate freight to your ZIP.

100 Gallon 15 Degree Cone Bottom Tank

$481.64

Snyder Industries 250 Gallon Black Heavy Duty Vertical Storage Tank

$730.00

Snyder Industries 550 Gallon Plastic Vertical Water Storage Tank in Green

$1,007.85

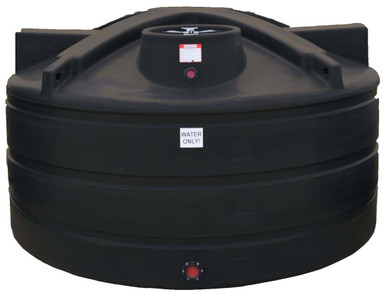

Enduraplas 1200 Gallon Black Vertical Water Storage Tank
