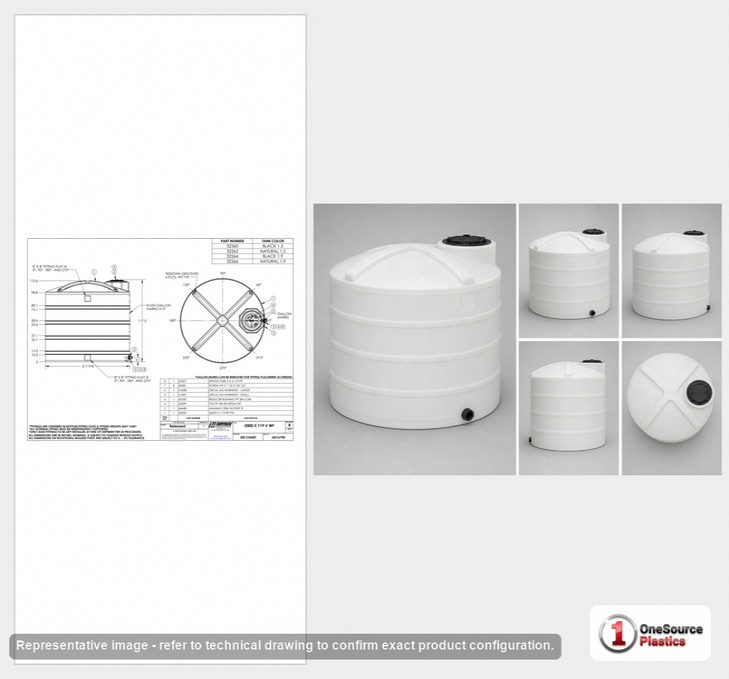

4995 Gallon Vertical Liquid Storage Tank

Almost twelve feet across, under seven and a half feet tall

This is the 5000 gallon class laid out sideways. At 89 inches tall it fits under a barn roof or a lean-to, the manway is reachable from a step, and there is no ladder work; at 142 inches across it needs nearly twelve feet of flat, continuous floor each way, which is the first thing to check. The capacity sits just under 5000 gallons; where a local rule or a permit threshold is drawn at that line, this is the tank that stays on the near side of it, and your authority, not this page, confirms where that line is. The buyer's guide to this tank covers siting and plumbing. The most common duties at this size are a private fire reserve and a reuse or rainwater buffer; our guides to fire water reservoir design for rural sites and industrial water reuse tank layouts cover both. Full, the tank puts over thirty tons on the pad, spread over a wide circle; size it with the concrete pad sizing guide. For the volume, use the tank sizing calculator and the tank sizing guide.

Openings, fittings and the pad

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a siphon tube. The tube reaches down inside the tank so the outlet draws from near the floor while the fitting sits higher in the wall, above the sediment line. A 3 inch valve, camlock or pump suction threads straight in; support the first length of pipe on its own.
2. Manway. A 22 inch threaded vented manway on top: wide enough for a mixer, a submersible pump with its hose, or a person for a proper clean-out. Leave the vent open.
3. The pad. Continuous, level contact across the whole 142 inch circle: a poured slab checked with an instrument across the full span, a steel deck plate, or a compacted and screeded bed with a retained edge. No rails, no pallet, no shim. Strap the tank before the first fill.
4. The liquid. Up to 1.5 specific gravity and 120 F. Heavier liquids need the 1.9 rated heavy duty versions below.
5. Drawing. Norwesco's drawing is linked under Technical Drawing on this page and gives the outlet height, siphon tube and manway position.

Versions and sizes nearby

The swatches above the price switch between the versions. Same tank in black, for water standing in sun: the 4995 gallon black vertical tank. Heavy duty, rated to 1.9 specific gravity: the 4995 gallon light blue heavy duty tank and the 4995 gallon black heavy duty tank. One step down: the 4200 gallon black vertical tank. The taller, narrower shape at this capacity: the 5000 gallon black vertical tank.

Shipping and receiving

The tank is an oversize LTL load, 142 by 142 by 89 inches and 855 lb as shipped, from Norwesco's Fairfield, Texas plant, which makes Texas and the states around it the short lane. A load this wide prices on space, not weight, and may need a permitted route; the listed price is before freight, and the freight cost estimator gives the lane cost to your ZIP, or request a written quote. The approach, the gate, the turning room and the set-down spot all have to take a twelve foot shell, so walk the route before you order. At the tailgate, check the part number 44822 on the bill of lading, look over the shell for transit damage before the driver leaves, set it with the outlet toward the pipe run, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
