Almost square: the RV36W's 23 x 21 inch footprint reads like a floor tile, 9 inches tall, holding 17 gallons of fresh water. Square-plan tanks are the efficient answer when you have a compartment rather than a channel - a storage bay corner, the base of a closet, the platform under a bed - because they waste the least clearance of any shape against square walls.
It carries Ronco's L.D. potable spec: FDA-compliant natural polyethylene, molded translucent so the water level is visible through the wall. Empty weight is a modest 13 lb; at full it holds about 142 lb, spread evenly over that broad base - one of the most stable load patterns in the fresh line, often needing nothing more than corner blocking and a single strap.
If your space is narrower than it is long, two siblings rearrange similar capacity: the RV27W runs 19 gallons at 32 x 12 x 12 inches and the RV57W holds 20 gallons at 32 x 16.5 x 10 inches. Compare all the geometries in the RV water tanks category.
One Source Plastics is an authorized Ronco Plastics dealer.
Standard fitting package
Choose the standard fitting package for $30 and we install these three fittings before the tank ships:
| Fitting | Size | Location |
|---|---|---|
| Inlet | 1-1/4" female NPT | Top center |
| Outlet | 1/2" female NPT | Bottom center |
| Vent | 1/2" female NPT | Top corner |
Want to place the fittings yourself? Choose the blank tank: it ships with no fittings at no charge. Add the 90-2218 fitting kit ($55.75). It includes an access plate with six stainless steel screws, washers and nuts to mount it, a 1-1/2" NPT plug, two 1/2" NPT plugs, two 5/8" thru-hull fittings for supply and vent, and one 1-1/2" thru-hull fitting for fill.

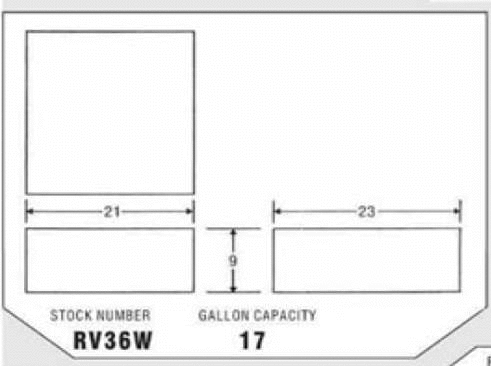

Technical drawing: download the Ronco Plastics RV36W dimensional drawing - print it to plan your install. Choose the standard fitting package (shown in the fitting layout image), or order the tank blank and place your own fittings.
Freight
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Ronco Plastics RV36W - 17 Gallon Plastic RV Water Tank (23.0" x 21.0" x 9.0") video (57 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
