2500 Gallon Vertical Liquid Storage Tank

A wide, low stance for an open pad

At 98 inches across and 86 inches tall this is one of the broadest, steadiest 2500 gallon shells Norwesco makes. The wide base resists wind better than a tall narrow tank, the top is low enough to fill from the ground, and the manway is reachable from a step for a float or a brush. It suits bulk water on a farm or a yard, a supply vessel a transfer pump draws from, a reservoir that holds a delivery plus a working margin, or a make-up tank beside a process. The cost of the stance is the footprint: eight feet two inches of clear, flat floor each way, plus room to reach the outlet. Run your draw and refill interval through the tank sizing calculator and take the reserve margin from the tank sizing guide. The buyer's guides to Norwesco's other 2500 gallon shells, the twelve-plant standard tank, the eight foot cube and the low-profile shell, cover siting, pads and plumbing that apply to this one as well.

What to check before you buy

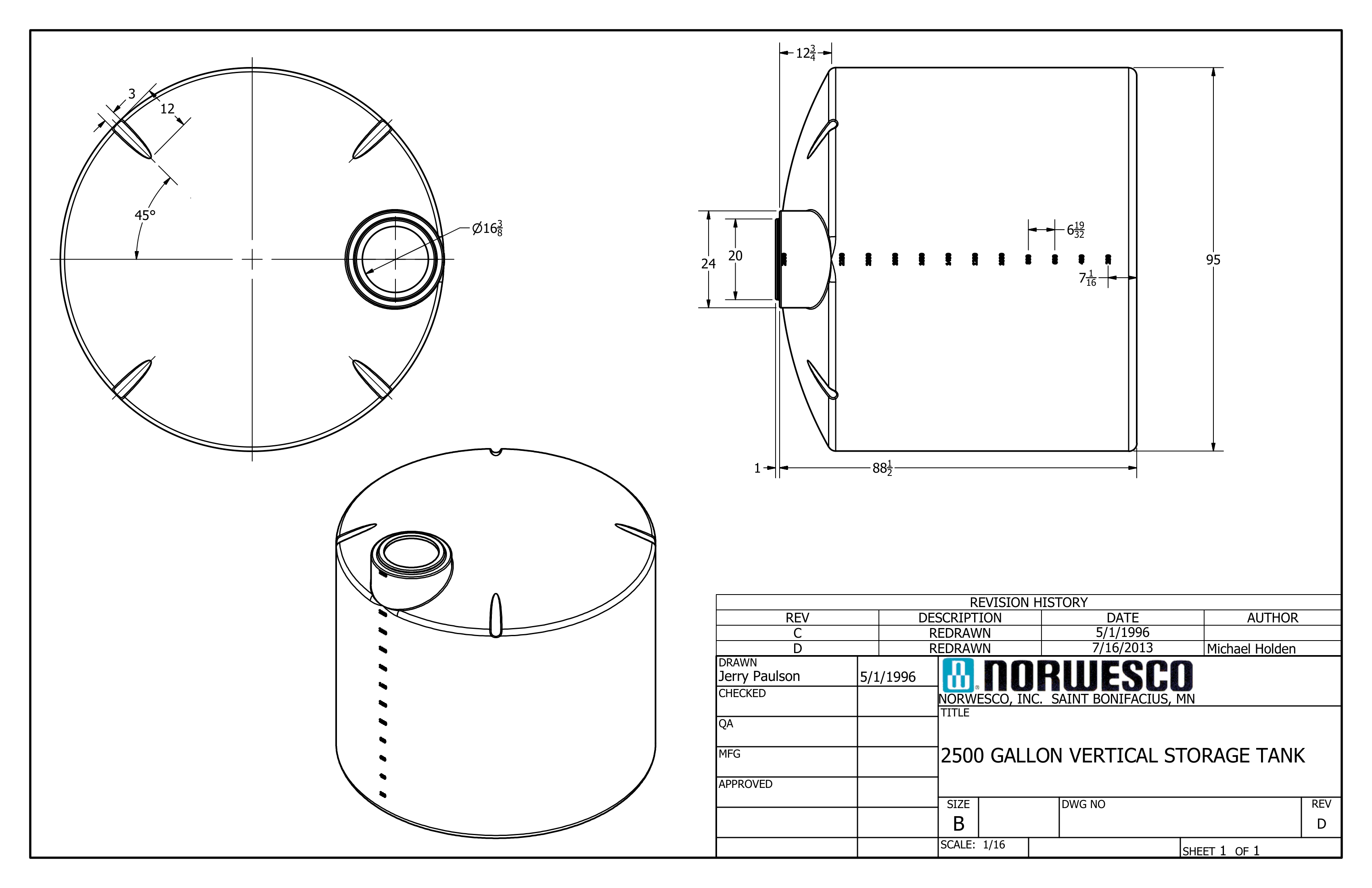

1. The fittings. The outlet and manway sizes for this tank come from Norwesco's drawing linked on this page. Tell us the valve, camlock or hose you plan to use and we will confirm the match in writing before the tank ships. Do not buy the valve first.
2. The pad. A rotationally moulded floor bears on everything it touches and nothing else. Give the whole 98 inch circle continuous, level contact: a slab, a steel plate, or a compacted and screeded bed with a retained edge. No rails, no pallet, no shim under one side.
3. Restraint. An empty polyethylene tank is a sail. Strap it to a wall, a frame or ground anchors before the first fill, and check the strap after it has been full once and settled.
4. The liquid. Up to 1.5 specific gravity. Polyethylene suits water, most fertilizers and many common chemicals; check anything else with us before you order, and ask about the service temperature if the liquid runs warm.
5. The path in. Measure the gate, the door and the lowest overhead on the way to the pad against 98 inches across and 86 inches tall.

Shipping and receiving

The tank travels on an LTL trailer at 98 by 98 by 86 inches from Norwesco's Petersburg, Texas plant, which makes Texas, the Panhandle and the states around them the short lane. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. The truck needs room to turn and a place to set an eight foot shell down, so tell us if the site is tight. At the tailgate, check the part number 42950 on the bill of lading, walk round the shell for transit damage before the driver leaves, set it with the outlet toward the pipe run, and fill it with water the first time so any problem shows up with something harmless in it.

Questions before you order? Call 866-418-1777.
