9,000 Gallon Tanks
9,000 Gallon Tanks
Four 9,000 gallon vertical tanks from Norwesco on one mold that trades height for footprint: 141 inches across and only 146 inches tall, with a 22 inch manway. It is the big-capacity tank for sites with a height limit. Fill one below, compare the four, and get freight to your ZIP before you decide.
- 4
- tanks at 9,000 gallons
- 141 in
- across
- 146 in
- tall
- 1.5 / 1.9
- wall rating, specific gravity
Listed from $14,169 before freight. Call 866-418-1777 to talk through the choice.
146inches tall. Shorter than it is wide.
At 146 inches the tank stands just over 12 feet, well under the 215 inch height of a 9,500 gallon Snyder on a narrower pad. A standard 96 inch ceiling still does not clear it, but a lift that reaches 13 feet does, and the manway is the easiest to service of any tank this size we sell.
75,060pounds of water when full. Water alone weighs 75,060 pounds.
Multiply 9,000 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 112,590 pounds, and the 1.9 walls up to 142,614 pounds. Size the pad for the liquid you will actually store.
The four tanks
Start with the wall. Resin sets what the tank can hold and how hot; the specific gravity rating sets how heavy a liquid the wall is built for. Pick a cell to narrow the list.
Norwesco 9000 Gallon Black Vertical Storage TankNorwesco, Black, 22" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 1831 lb

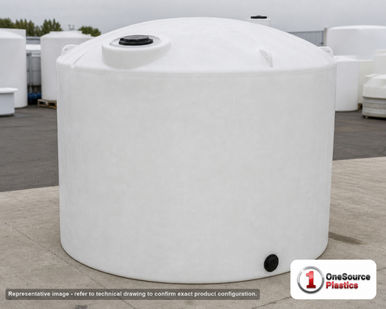

$14,169list, before freightVideoDrawing (PDF)Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61- 3D9000 Gallon Vertical Liquid Storage TankNorwesco, White, 22" Threaded Vented Manway
- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 1680 lb
$14,503list, before freightVideoDrawing (PDF)Polyethylene (HDPE), freight class OVS, warranty 3-year limited (full replacement) per Norwesco liquid storage catalog 2024. No certification listed by the maker
Norwesco 9000 Gallon Black Heavy Duty Vertical Storage TankNorwesco, Black, 22" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 2025 lb
$16,099list, before freightVideoDrawing (PDF)Polyethylene, freight class 300, warranty 5 Year Warranty. Listed: FDA-compliant resin, NSF 61
3DNorwesco 9000 Gallon HDPE Vertical Liquid Storage TankNorwesco, Blue, 22" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 1870 lb
$16,922list, before freightVideoDrawing (PDF)High Density Linear Polyethylene, freight class OVS, warranty 3-year limited (full replacement) per Norwesco liquid storage catalog 2024. No certification listed by the maker
Every size of vertical tanks, or call 866-418-1777 for the one you need.
The four tanks, and how they differ
All four share the mold: 141 inch diameter, 146 inch height, a 22 inch threaded vented manway and a 120 degree F maximum. The wall and the color are the decision.
The 1.5 specific gravity pair is the entry point at 14,169 dollars before freight: white HDPE shipping at 1,680 pounds and black linear polyethylene at 1,831 pounds. The black one lists FDA compliant resin and NSF 61.
The 1.9 heavy duty pair carries liquids up to 1.9 times the density of water. The black wall ships at 2,025 pounds, lists at 16,099 dollars and carries Norwesco's 5 year warranty; the blue high density linear wall ships at 1,870 pounds and lists at 16,999 dollars.
Water, rainwater and fire reserve sit comfortably inside a 1.5 wall. Fertilizer, brine and dense chemicals are what the 1.9 walls are for, and the extra 1,930 dollars over the 1.5 black tank buys that margin.
Side by side, from the manufacturer records
| Tank | Type | Resin | Wall rating | Max temp | Manway | Certifications listed | Warranty | Freight class | Ship weight | Ship size | Listed |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Black Vertical Storage Tank | Vertical | Polyethylene | SG 1.5 | 120 F | 22" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 1831 lb | 141" L x 141" W x 146" H | $14,169 |
| Vertical Liquid Storage Tank | Vertical | Polyethylene (HDPE) | SG 1.5 | 120 F | 22" Threaded Vented Manway | none listed | 3-year limited (full replacement) per Norwesco liquid storage catalog 2024 | OVS | 1680 lb | 141" L x 141" W x 146" H | $14,503 |
| Black Heavy Duty Vertical Storage Tank | Vertical | Polyethylene | SG 1.9 | 120 F | 22" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 5 Year Warranty | 300 | 2025 lb | 141" L x 141" W x 146" H | $16,099 |
| HDPE Vertical Liquid Storage Tank | Vertical | High Density Linear Polyethylene | SG 1.9 | 120 F | 22" Threaded Vented Manway | none listed | 3-year limited (full replacement) per Norwesco liquid storage catalog 2024 | OVS | 1870 lb | 146" L x 141" W x 141" H | $16,922 |
Scroll the table sideways; the tank name stays put.
What 9,000 gallons is on the ground
Shorter than it is wide. At 146 inches the tank stands just over 12 feet, well under the 215 inch height of a 9,500 gallon Snyder on a narrower pad. A standard 96 inch ceiling still does not clear it, but a lift that reaches 13 feet does, and the manway is the easiest to service of any tank this size we sell.
A 12 foot circle of pad. The base is 141 inches across, about 108 square feet. Norwesco requires the full bottom to bear on a flat, level, compacted surface. Concrete, a leveled ring of compacted crushed rock, or a steel ring filled and screeded all work; a crowned or cupped pad does not.
Water alone weighs 75,060 pounds. Multiply 9,000 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 112,590 pounds, and the 1.9 walls up to 142,614 pounds. Size the pad for the liquid you will actually store.
Choosing by what you will store
Potable and process water
Two of the four list NSF/ANSI 61 and FDA compliant resin on their spec sheets. Black walls block light and keep algae down outdoors; the white and blue walls let a crew read the level by eye.
Browse potable and process water tanksRainwater harvesting
A 9,000 gallon tank catches an inch of rain off a 14,000 square foot roof. The low profile keeps the inlet within reach of a single-story gutter line without a tower of pipe, and the 22 inch manway takes a screened inlet and a first-flush diverter.
Browse rainwater harvesting tanksFire suppression reserve
Rural sites without hydrants keep a dedicated draft tank, and 9,000 gallons covers common sprinkler reserve figures. Confirm the standard your authority having jurisdiction enforces, and keep the tank, the draft fitting and the pad in the submittal.
Browse fire suppression reserve tanksFertilizer, brine and chemicals
Liquid fertilizer and brine run well above the density of water, which is what the 1.9 walls are for. Match the resin to the chemical, not only the weight: the chemical tank recommender checks the liquid against Norwesco's own compatibility data before you commit.
Browse fertilizer, brine and chemicals tanksSee it move
Dimensions, fittings and shipping notes for the Norwesco 9000 Gallon Black Vertical Storage Tank. Every tank on this page has its own.
Getting it to your site, honestly
A 9,000 gallon low-profile tank is an oversize load by width: 141 inches on the trailer, which is why the freight class reads 300 or OVS. The height helps; at 146 inches it rides under more bridges than a tall tank. It still travels on a flatbed, the driver does not unload it, and you need a crane with soft slings or a lift with long forks and a spreader.
Norwesco ships this mold from the plants listed on each product page. Listed prices are before freight. Put your ZIP in the freight cost estimator and you get a real LTL quote for this class and weight, the same number our team sees.
The honest limitation: width is the constraint here, not height. A site road or gate under 12 feet wide cannot take delivery, and no amount of lift fixes that. Two narrower tanks plumbed together can be the answer, and we will say so on the phone.
What the carrier sees
- Freight class
- 300, OVS
- NMFC
- -
- Ship size
- 141" L x 141" W x 146" H
- Ship weight
- 1680 lb
- Ships from
- St. Bonifacius, Minnesota
- Flatbed or step-deck; the driver does not unload.
- You need a forklift with long forks or a crane with soft slings.
- Listed prices are before freight. The quote is per ZIP and per lane.
Standards the manufacturer lists
ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard for this mold; it sets wall thickness by specific gravity rating and the hoop stress and test schedule behind it.
NSF/ANSI 61, Drinking Water System Components, is listed by Norwesco on two of the four for the resin in contact with water, and FDA 21 CFR 177.1520 covers the olefin polymers. We print what Norwesco lists for each tank and nothing stronger; the per-tank listings are in the comparison table and on each product page.
- FDA-compliant resinListed by the maker on 2 of 4: Black Heavy Duty Vertical Storage Tank, Black Vertical Storage Tank.
- NSF 61Listed by the maker on 2 of 4: Black Heavy Duty Vertical Storage Tank, Black Vertical Storage Tank.
Install day
Set the tank on the finished pad with the 22 inch manway reachable from a short platform; at 146 inches a step ladder does it. Leave the threaded vented manway as the vent unless you add a dedicated one, and never seal it under a pump suction.
Pipe every fitting with a flexible connection and support the pipe independently. A full tank settles and a polyethylene wall grows in the sun; rigid pipe cracks the fitting or the wall. Keep the drawing on the job for fitting positions and tie-down provisions; the 3D model on this page is traced from that same drawing.
Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.
Questions we get about 9,000 gallon tanks
How much does a 9,000 gallon plastic tank cost?
Listed at 14,169 to 16,999 dollars before freight on this page, by wall rating and color. Freight is quoted separately to your ZIP because an oversize flatbed load prices by lane.
Why is the 9,000 gallon tank so much shorter than the 9,500?
Different molds. Norwesco's 9,000 spreads the water over a 141 inch base and stands 146 inches; Snyder's 9,500 stands 215 inches on a 120 inch base. If you have width and not height, this is the tank.
What does the 1.9 specific gravity rating buy me?
A thicker wall rated for liquids up to 1.9 times the density of water, 142,614 pounds of contents at this size. For water the 1.5 wall is already a wide margin; for fertilizer, brine or dense chemicals buy the 1.9.
Can I put a 9,000 gallon tank on gravel?
Yes, on compacted crushed rock that is level and extends past the 141 inch base, with the full bottom supported. Loose fill and pea gravel shift under 75,060 pounds of water and void the warranty.
Ready to size it?
Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
