A 9000 gallon heavy duty vertical tank that stays under thirteen feet

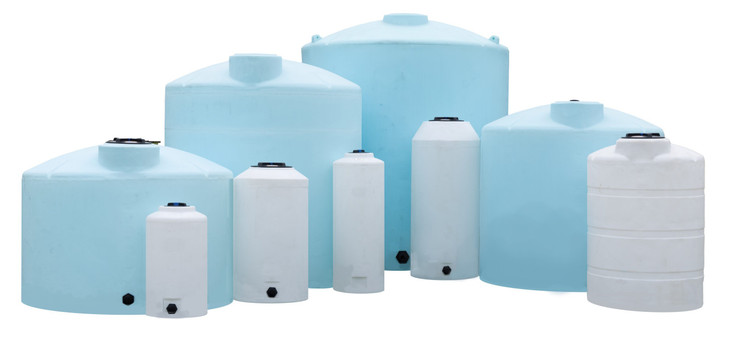

The Norwesco 9000 gallon light blue heavy duty vertical liquid storage tank, part number 43620, is a flat bottom polyethylene tank 141 inches in diameter and 146 inches tall, weighing 1870 lb empty. Norwesco gets 9000 gallons into a tank only 146 inches tall by going to a 141 inch diameter, which makes this the large tank to choose when height is limited and floor space is not. The heavy duty wall is built for liquids up to 1.9 specific gravity: 9000 gallons of water weighs 75060 lb, and at the full rating the contents can reach 142614 lb. It comes with a 3 inch polypropylene female NPT bulkhead fitting at the base, supplied with a 2 inch reducer, and a 22 inch threaded vented manway on top, wider than the manway on Norwesco's smaller tanks. The service limit is 120 F, and Norwesco backs the tank with a 3 year limited warranty with full replacement.
Working under a low roof? Call 866-418-1777 with the clear height and the floor space you have, or get freight to your ZIP and add the tank to your cart above.
Where the wide, short shape fits
Inside a treatment building, under a canopy at a fertilizer dealer, in a plant bay with a crane rail overhead: anywhere 9000 gallons is wanted but a taller tank will not go. The cost of the low height is a 141 inch footprint, so the pad is bigger and the door it comes through needs the width. The pad must be flat, continuous and level under the whole floor with nothing under the base but the pad; our guide to concrete pad sizing for above ground polyethylene tanks covers the slab design for a load this size. For a fire reserve, read our note on fire water reservoir design for rural and remote sites. If the tank will hold a chemical with a vapour, our piece on tank wall thickness at the vapour saturated headspace explains what the heavy duty wall is doing above the liquid line. The 9000 gallon vertical tank buyers guide covers this size in detail, and the tank sizing calculator and tank sizing guide settle the volume.
What goes in it
Water, liquid fertilizer and the treatment and process chemicals that polyethylene handles. The 1.9 rating covers the dense blends and brines a standard tank is not built for. Keep the contents under 120 F. If you are not sure a chemical belongs in polyethylene, tell us the name and the concentration before you order.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting low in the side wall, with a 2 inch reducer in the box. Keep 3 inch for a pump suction or a fast gravity draw; reduce to 2 inch where the plumbing already is. Support the valve and the first length of pipe on their own so the wall carries liquid, not hardware.
- Manway. A 22 inch threaded vented manway on top. The extra width over the smaller tanks' manway makes cleaning and inspection easier on a tank this wide; keep it threaded down so the tank breathes through the vent.
- Extra fittings. A second outlet, a sight gauge port or a side fill fitting can go on the same order; tell us before it ships.
- Drawing. Norwesco's drawing for this tank is linked under Technical Drawing on this page and gives the exact outlet and manway positions.
Sizes and ratings nearby
The same heavy duty tank in black: the 9000 gallon black heavy duty vertical tank. For water and fertilizer only, the standard 1.5 rating: the 9000 gallon white vertical tank or the 9000 gallon black vertical tank. One size down is the 8400 gallon black vertical tank; one size up at the heavy duty rating is the 10000 gallon black heavy duty vertical tank. The swatches above the price switch between the versions of this tank.
Shipping and receiving
At 141 by 141 by 146 inches and 1870 lb this tank ships as an oversize load from Norwesco's plant in St. Bonifacius, Minnesota. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Have a forklift with long forks or a crane ready, and check that the route to the pad is wide enough for a 141 inch tank before the truck arrives. At the tailgate, check the part number against 43620 on the bill of lading, look over the fitting and the base for transit damage, and fill with water the first time so a problem shows up with something harmless in the tank. If a permit needs Norwesco's listing or resin paperwork, ask and we will send what Norwesco publishes for this tank.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43620.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 9000 Gallon Blue Heavy Duty Vertical Liquid Storage Tank video (66 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
