A 9000 gallon black vertical tank for bulk water storage under a low roof

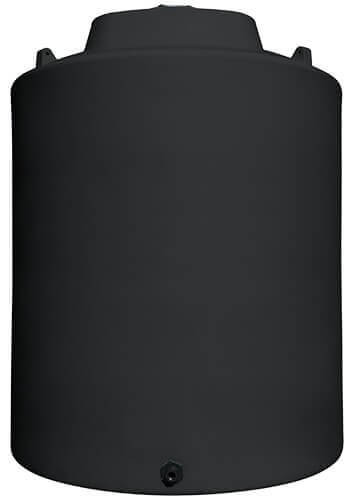

The Norwesco 9000 gallon black vertical storage tank, part number 40786, is a rotomolded polyethylene tank 141 inches in diameter and 146 inches tall, weighing 1831 lb empty. It is the standard duty tank, rated for liquids up to 1.5 specific gravity: water, most liquid fertilizers and many common chemicals. Full of water it holds 75060 lb. The outlet is a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer, and the top opening is a 22 inch threaded vented manway. The resin is FDA compliant per Norwesco, Norwesco lists its water tanks under NSF/ANSI 61 (the listing names no models), the service limit is 120 F, and the warranty is 3 years. Black keeps light out of stored water, which is what stops algae in a tank that sits in the sun.
Is this the right size? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
A wide tank for a site with a height limit
Most 9000 gallon tanks are tall. This one is 146 inches high on a 141 inch footprint, so it fits under a barn roof, inside a containment building or beside a structure where a taller tank would not, and the lower height keeps the pressure at the outlet down. The trade is floor space: the pad has to carry 75060 lb of water on a 141 inch circle. Our pad sizing framework covers the slab. For a rainwater system the first flush diverter sizing note covers the inlet, the fire water reservoir design write-up covers a fire reserve beyond the hydrants, and the article on reuse storage trains places a bulk tank in a reuse system. Confirm the volume with the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting low in the side wall with a 2 inch reducer fitted. Run 3 inch for a pump suction or fast gravity draw, or leave the reducer in for a 2 inch valve and hose. Support the valve and the first pipe run on their own.
- Manway. A 22 inch threaded vented manway on top: fill line, float switch, and room for inspection and cleaning. Never block the vent.
- Heavier liquids. This is the 1.5 tank. Fertilizer and chemicals heavier than 1.5 times water go in the heavy duty version linked below.
- Drawing. Norwesco's drawing for 40786, linked under Technical Drawing on this page, shows the outlet height and the manway position.
Other versions of this tank, and sizes nearby
Same tank in white, for reading the level through the wall: 9000 gallon white vertical tank, 43618. The heavy duty 1.9 version for fertilizer and heavier chemicals comes in blue, 43620 and black, 43620B. One size down is the 8400 gallon black vertical tank, 42060B; one size up is the 10000 gallon black heavy duty vertical tank, 43130B. The swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's St. Bonifacius, Minnesota plant, 141 by 141 by 146 inches and 1831 lb, on a flatbed. Have a forklift with long forks, a telehandler or a crane ready and a clear path to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. When it lands, check the part number against 40786 on the bill of lading, look over the wall and the outlet fitting before the driver leaves, and fill it with water the first time.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40786.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
