9000 Gallon Vertical Liquid Storage Tank: Complete Buyer's Guide
9,000-gallon white liquid storage tank built for agricultural chemical and fertilizer storage. Manufactured by Norwesco from virgin linear polyethylene (HDPE) rated to handle liquids up to 12.5 pounds per gallon. FDA approved for contact with potable water, ensuring safe storage for drinking water and food-grade liquids.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
The 9,000 Gallon Vertical Liquid Storage Tank delivers near-maximum bulk capacity in an unusually stout, stable package. It shares the broad 141-inch base of the 10,000-gallon tank but stands shorter at 146 inches, which lowers its center of gravity and makes it the steadier choice for sites with wind exposure or where a slightly lower silhouette is preferred. For a large farm or processing plant, it offers serious storage without quite the towering height of the biggest vessels.
Norwesco molds it in one seamless piece of virgin linear polyethylene rated to 1.5 specific gravity, handling agricultural and industrial liquids to 12.5 pounds per gallon. The translucent natural-white wall reports inventory at a glance and reflects sunlight to keep contents cooler, with compounded UV inhibitors and a 120 F / 48 C ceiling.
It weighs 1,680 pounds empty and reaches roughly 114,270 pounds full at 1.5 SG — over fifty-seven tons demanding an engineered foundation. The 3-inch outlet comes with a 2-inch reducer and a 3-inch siphon tube, plumbing large for bulk transfer or stepping down to existing lines, and the 22-inch lid gives interior access. Each tank carries Norwesco's 3-year warranty against manufacturing defects.
Technical Drawing

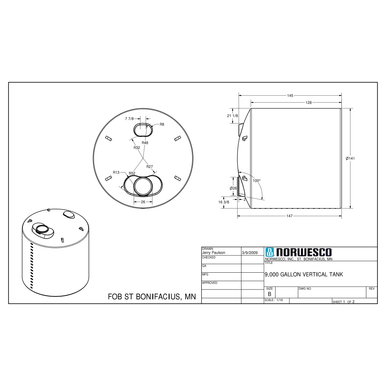

Official Norwesco technical drawing — 9000 Gallon Vertical Liquid Storage Tank
Key Features and Specifications
- 9,000-gallon capacity — sized for agricultural chemical and fertilizer storage
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 146" tall x 141" diameter — compact vertical footprint
- 1680 lbs empty, approximately 114,270 lbs when full at rated specific gravity
- 3" with 2" Reducer and 3" Siphon tube NPT outlet fitting — factory installed and leak-tested
- 22" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Large tanks require professional installation. Ensure the pad is level within 1 inch across the full diameter and that all piping connections allow for thermal expansion
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
The stout proportions of this 9,000-gallon tank make it more forgiving than a tall vessel of similar volume, but fifty-seven tons of chemical still demands an engineered foundation built and curbed for containment.
Foundation and Containment
Commission a reinforced concrete slab designed for about 114,270 pounds over the wide 141-inch base, flat across the full diameter and serving as secondary containment for the chemistry you store. The broad footprint spreads the load and eases the leveling tolerance slightly compared with a tall tank, but the slab must still be true and fully cured before filling. Grade the site to direct any spill into containment.
Plumbing
Plumb the 3-inch outlet in schedule 80 PVC or stainless rated for your product, using the supplied reducer to interface with 2-inch lines where needed and the siphon to draw the tank down completely. Keep the first foot flexible for thermal movement and carry the run on independent supports. Choose connection hardware your chemical will not attack.
Venting
Fit a pressure/vacuum relief vent in the 22-inch lid rated for your chemical and sized to your transfer rates. Even a shorter large tank moves big volumes of air during bulk fills and draws, so an adequately sized vent is essential to keep the wall from pulling a vacuum on a fast pump-down.
Maintenance and Long-Term Care
A 9,000-gallon chemical tank is maintained for containment integrity and compatibility, with structural checks scaled to its considerable weight.
Inspection
- Containment slab: Inspect the foundation and curbing for cracks, settlement, and any breach of containment on a regular schedule. The wide base helps, but fifty-seven tons still finds a soft spot.
- Wall: Read the lower wall, where pressure concentrates, for bulging or stress whitening, and watch for swelling that signals a borderline-compatible chemical attacking the resin.
- Outlet and vent: Check the 3-inch fitting, reducer, and siphon for weeping or etching, and confirm the relief vent is clear and rated for the current product.
Product Changes
Drain through the siphon, clean the interior via the 22-inch lid under confined-space procedures, decontaminate per the incoming chemical's specification, and verify the new product on a polyethylene compatibility chart before refilling. The tank has no potable role; cleaning is strictly compatibility and carryover control.
UV and Heat
The compounded UV package protects the wall through years of sun; inspect the sun-facing side annually in high-UV regions. The reflective white finish helps moderate internal temperature and vapor pressure on a large tank through summer heat.
Alternatives and Comparisons
At 9,000 gallons the interesting comparison is against the 10,000-gallon tank that shares its base, because the choice is height and stability rather than footprint.
Stout 9,000 vs. taller 10,000: On the same 141-inch base, this 9,000-gallon tank stands shorter and steadier, a meaningful advantage in windy locations or where you want a lower profile and an easier-to-reach fill. The 10,000-gallon tank adds a thousand gallons by going taller on the identical footprint, which suits operations that need the extra capacity and can manage the added height. If stability and lower silhouette matter more than the last thousand gallons, the stout tank is the better neighbor.
Frequently Asked Questions
How long will the 9000 Gallon Vertical Liquid Storage Tank last?
On an engineered containment slab and within its 1.5 SG and 120 F ratings, this tank readily serves 15 to 20 years in bulk chemical duty. The stout proportions reduce wall stress, the compounded UV package handles the sun, and the seamless shell has no weld to fail. Incompatible chemistry, over-density, or a settling foundation are what cut that life short.
What chemicals can I store in this tank?
Its 1.5 specific-gravity rating covers most liquid fertilizers, crop-protection products, and industrial solutions up to 12.5 pounds per gallon. Check every product on a polyethylene compatibility chart before you fill, since polyethylene handles many acids and bases yet not certain solvents and oxidizers. It is not for fuels or flammables, and it is a chemical tank, not a potable-water vessel.
What kind of foundation does a 9000-gallon tank need?
A full 9,000-gallon tank weighs about 114,270 pounds at 1.5 SG — over fifty-seven tons. It requires a reinforced concrete slab engineered by a structural professional, level across the full diameter and serving as secondary containment. The wide base eases the leveling tolerance somewhat, but this remains an engineered-foundation project, not a gravel pad.
Does this tank come with a warranty?
Yes. Norwesco's 3-year warranty covers manufacturing defects in materials and workmanship under normal use — molded-in faults rather than damage from incompatible chemicals, exceeding the rated density, an inadequate foundation, or impact. Keep documentation and photos of the engineered containment installation.
Can I install this tank underground?
No. A vertical tank of this size is engineered for above-ground service and cannot withstand soil pressure; burying it would collapse the tank and void the warranty. Below-grade storage requires purpose-engineered reinforced structures, not an above-ground tank.
Buying Considerations
Three commitments accompany this 9,000-gallon tank. First, the engineered containment foundation: a reinforced slab sized for fifty-seven tons, curbed for containment, and cured before delivery. Second, access for the oversized shell, which needs a clear path for a flatbed and a crane to set it. Third, your chemistry, verified against a polyethylene compatibility chart for the 1.5 SG rating. The stout, stable profile is its selling point where wind or silhouette is a concern. Listed at $12,400.00 before freight, quoted to your ZIP on a dedicated carrier.
