8,900 gallons in black at 1.9 specific gravity, sixteen feet on a ten foot base
The Snyder 7400000C34 is a black polyethylene vertical storage tank, 120 inches across and 194 inches tall, holding 8,900 gallons at 1,900 pounds. It is the step below the tallest tank on the same ten foot base: nearly two tankers of a dense, light-sensitive liquid, the 18 inch threaded, vented manway at sixteen feet, and a wall rated for a specific gravity of 1.9, or 141,029 pounds of contents against 74,226 for water, for concentrated acid, ferric and the heavy brines at strength under a black wall that keeps light off them. A 3 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Lincoln, Nebraska.
Replacing a tank that failed? Call 866-418-1777 with what it held and how long it lasted; or check freight to your ZIP and put the 8900 gallon tank in your cart above.
The tank for a bay under eighteen feet
A plant whose roof stops the eighteen foot tank gets this one: sixteen feet of tank still leaves room for a platform and a vent line under most tall bays, and the ten foot circle is the same floor. Full at the rating it puts 141,029 pounds on a 120 inch circle: a slab designed to the concrete pad sizing guide that bears the whole floor, ringed by a berm sized to the tank, with cables to structure before the first fill. Black polyethylene absorbs the ultraviolet that ages a white wall and passes no light to the liquid; it runs warmer in the sun, so shade if the chemical must stay cool, and it hides the level, so a sender read at the ground is the gauge.The tank sizing calculator sizes the tank to the dosing rate and the truck schedule, and the tank sizing guide explains the reserve and the thermal freeboard that a dense chemical adds on top.
Grades on the 120 x 194 inch tank, and the 8,750 and 9,500 beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 7400000C34 (this tank, black, 1.9 SG) | 8,900 | 120 x 194 in | 1,900 lb |
| 7400000C37-BLACK (black) | 8,900 | 120 x 194 in | 1,900 lb |
| 7400000C26 (white) | 8,900 | 120 x 194 in | 1,900 lb |
| 7400000C37 (white) | 8,900 | 120 x 194 in | 1,900 lb |
| 5360100N40 (low) | 8,750 | 142 x 146 in | 2,000 lb |
| 7450000N40 (tall) | 9,500 | 120 x 215 in | 2,800 lb |
The C37-BLACK is the other black tank in this shell and the C26 and C37 the white ones, all at this weight, each rated as its own sheet says. The 5360100N40 lays 8,750 gallons down to 146 inches on a 142 inch base for a lower roof, and the 7450000N40 stands 9,500 on this base at 215 inches in the other chemical grade.
Want the certified one or the plain one? Call 866-418-1777 and say what the inspector asks for; or request a quote on the row you need.
Connections on a tanker-sized tank
- Outlet: 3 inch polypropylene female NPT bulkhead fitting, at the base; tell us the liquid when ordering and the fitting is matched to it, with a flanged transition, a flexible connector to hard pipe, and the valve supported off the pad in the material the chemical calls for.
- Access: 18 inch threaded, vented manway, 194 inches up; a platform with a rail for anyone who opens it. Fill through a dip tube to the floor, vent outside on anything that fumes, and size the vent for the delivery pump, because a tanker's pump moves air faster than a stock vent passes it.
- Service limit: 120 F / 48 C.
Sixteen feet of liquid above a 3 inch outlet is a strong flooded suction, and the outlet drains a full tank in a working shift; a pump mounted below the outlet primes by gravity, and a float at low level protects it from running dry. Vapor loss is the manway's job to prevent, so it stays shut; the label names the one chemical; and the inspection is a light on the headspace wall, not the wetted one. The body takes a freeze from the top down without damage; the outlet valve and the first pipe run do not, so they get trace heat or insulation where it freezes.
Who buys the 8,900
Bulk coagulant or caustic at a water plant, brine at a food plant, liquid fertilizer at a co-op, and process chemical at a plant that buys most of a tanker at a time and stores in the open. A double-wall version costs usable volume, which the Captor double wall freeboard guide works through for tanks this size when the site rules demand a second wall. For a fire reserve read the fire-water reservoir design guide instead, and A reuse train stores treatment chemical between its stages, and the industrial water reuse tank topology article shows where a tank this size goes in it.
From Lincoln, as a permitted load
The 7400000C34 ships from Lincoln, Nebraska as freight at class 300 as the sheet lists it; at 120 inches across and 194 long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 1,900 pounds up with straps under the body, never through the manway. Fill it to the manway with water once and leave it, looking at the pad edge and the outlet fitting for movement or a weep, then drain it dry before the chemical arrives. Watch the first delivery from the first gallon to the last. Keep one spare gasket for the outlet fitting on the shelf; it is the part that fails on a holiday.
Freight and documents
Ships from: Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.

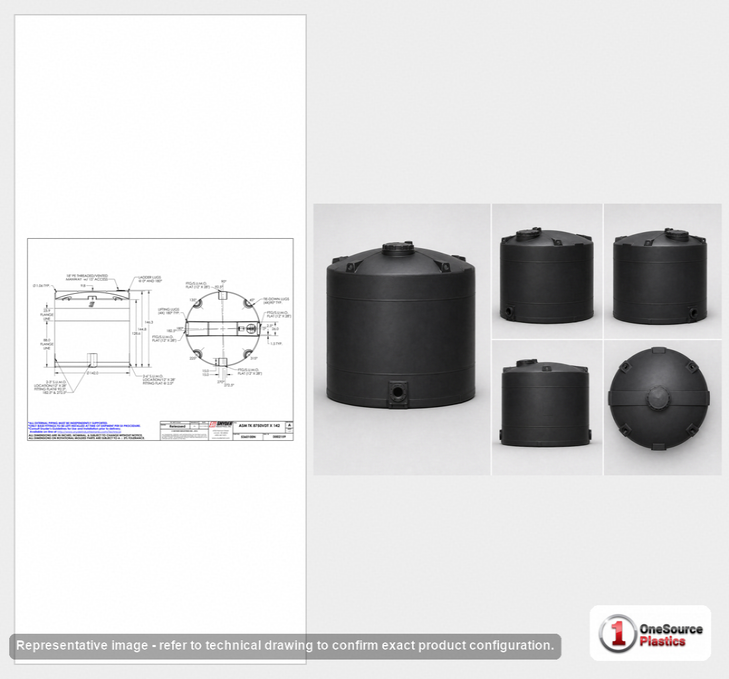

Technical drawing (PDF) for Snyder Industries 7400000C34.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
