A 200 gallon black polyethylene septic pump tank for a buried dosing chamber
The Norwesco 200 gallon septic pump tank, part number 43745, is a round black polyethylene tank 47 inches in diameter and 56 inches tall, weighing 79 lb empty. It is the small buried chamber that sits after a septic tank and holds effluent for a pump: a float switch and a submersible pump go inside, and the pump pushes the liquid on to a drainfield, a mound or a treatment unit that gravity cannot reach. Access is through a 20 inch gasketed manway on top. Norwesco rates it to 130 F, lists state septic approval for this model in all fifty states, lists it as NSF 61, and backs it with a 3 year warranty. Norwesco's drawing for the tank is linked on this page under Technical Drawing.
Pairing it with a septic tank? Call 866-418-1777 with the tank you are pumping from and the pump you plan to use, or get freight to your ZIP and add it to your cart above.
Where a 200 gallon pump tank fits
A pump tank does not treat anything; it stores a dose and sends it on. Two hundred gallons is the size for a single home where the drainfield sits uphill or far from the septic tank, where a mound system needs timed doses, or where a small treatment unit wants a steady feed instead of a surge. Full of water it holds about 1668 lb, so it is set in a hole, bedded and backfilled like any buried tank, never left above grade. The 47 inch diameter keeps the excavation narrow enough for a mini excavator, and the 56 inch height puts the manway close to finished grade on a shallow set. Your local health department decides the dose volume and the pump cycle; size the tank to that approval, and use our tank sizing calculator and tank sizing guide if you are working out total system volume. For Canadian or cross-border jobs, our write-up on Norwesco septic approvals on both sides of the border explains what the approvals cover.
What to check before you buy
- The manway. A 20 inch gasketed manway on top. It is the only opening Norwesco lists for this tank, and it is where the pump, the floats and the discharge pipe go in and come out for service. Plan a riser to grade so nobody has to dig to reach the pump.
- Inlet and outlet. No inlet or outlet fittings are listed. The installer cuts the inlet and the discharge where the site needs them, with the seals the local code calls for. Tell us the pipe sizes and we will confirm what to order with the tank.
- Temperature. Rated to 130 F. Normal household effluent is well under that.
- Approval. Norwesco lists state septic approval for this model in every state. Your county may still want its own paperwork; the drawing on this page is usually what they ask for.
- Burial. Follow Norwesco's installation instructions for bedding, backfill and water in the tank during backfill. Never set it under a driveway or anywhere a vehicle will cross without an engineered cover.
Sizes nearby

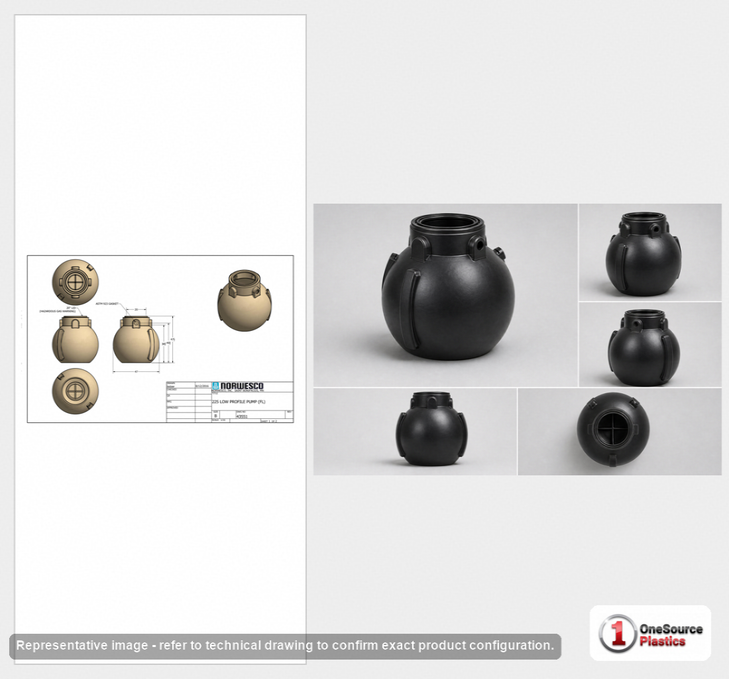

The next size in this family is the 225 gallon septic pump tank built for Florida, which carries a Florida-only approval. If your job is outside Florida, this 200 gallon tank with its fifty-state listing is the one to order.
Shipping and receiving
The tank ships LTL under NMFC 156600-02 from the nearest of Norwesco's plants in Lancaster, Ohio; Shawnee, Oklahoma; St. Bonifacius, Minnesota; and Tooele, Utah. On the pallet it is 48 by 47 by 56 inches and 124 lb shipping weight, more than the 79 lb tank because of the pallet and packing. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. At the tailgate, check 43745 against the bill of lading, look over the manway lip and the sidewall for transit damage, and keep the tank out of the sun and off sharp ground until it goes in the hole.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN; Lancaster, OH; Shawnee, OK; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43745.
See this tank
Product video. Watch the Norwesco 200 Gallon Plastic Septic Pump Tank video (62 seconds) with dimensions, fittings and shipping notes.
