The jump from the 50s and 60s to the RV61W's 75 gallons is the jump from weekend range to expedition range - and the mold makes that volume surprisingly easy to package at 54 x 22 x 16 inches, a long rectangle that tucks against a frame rail while adding real days of unhooked water. The shell is a 79 lb light-duty molding.
Full-tank discipline matters more as capacity grows: 75 gallons is about 626 lb, a load to place over structure and strap without compromise. In exchange, the FDA-compliant natural polyethylene wall is translucent, so your remaining range is always one glance away, and the one-piece rotomolded construction carries no seams to fatigue.
Neighbors in the big-tank bracket: the 76-gallon RV65W at 51 x 27 x 13.5 inches holds one more gallon in a lower, wider slab, and the 83-gallon RV70W is the next rung up. Every tank is rotomolded in Tustin, California - Ronco Plastics' home since 1974 - with fittings installed at your marks, spin-weld or threaded: print the drawing below and mark your fitting locations. See RV water tanks for the range and the freight cost estimator for shipping.
OneSource Plastics is an authorized Ronco Plastics dealer.

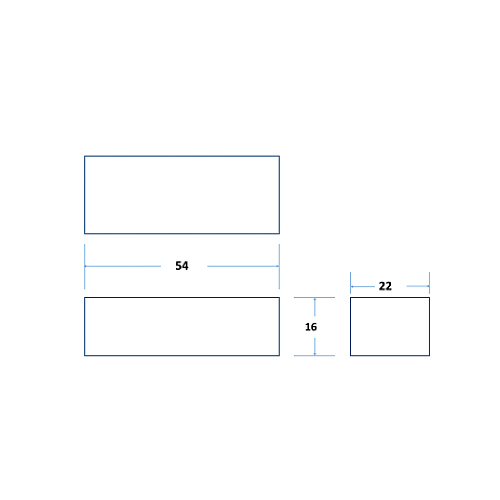

Technical drawing: download the Ronco Plastics RV61W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
Specifications
| Dimensions | 22 x 54 x 16 in (W x D x H) |
|---|---|
| Capacity | 75 Gallons |
| Material | Low Density Linear Polyethylene |
| Certifications | FDA Approved |
| Ship Weight | 79 lb |
| Ship Dimensions | 54" L x 22" W x 16" H (crated) |
Freight
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
