Ronco Plastics RV8W - 52 Gallon Light Duty RV Fresh Water Tank (60.25" x 20.125" x 11.0")

Five feet of tank, eleven inches of height: the RV8W stretches its 52 gallons across 60.25 x 20.12 x 11 inches, the longest, shallowest profile in its capacity class. It is drawn for the space nothing else uses - the thin horizontal band between floor and frame that runs the length of a coach. Ronco's own sheet rates the mold conservatively at 50 gallons, so the listed capacity is not wishful.

Light-duty potable spec throughout: FDA-compliant natural polyethylene, translucent enough to read the water line through the wall, molded in one seamless piece. The 76 lb shell carries about 434 lb when full, distributed along its whole length - about as kind as half a ton of water can be to a chassis.

Since 1974, Ronco Plastics has rotomolded these in Tustin, California and installed every fitting per order, spin-weld or threaded, at the customer's marks; print the drawing below and mark your fitting locations so fill, vent, and supply match your plumbing. If long-and-low is not the constraint, the 53-gallon RV68W holds one more gallon in a different form, and the 48-gallon RV9W at 48 x 20 x 12 inches shortens the idea. The rest live under RV water tanks.

OneSource Plastics is an authorized Ronco Plastics dealer.

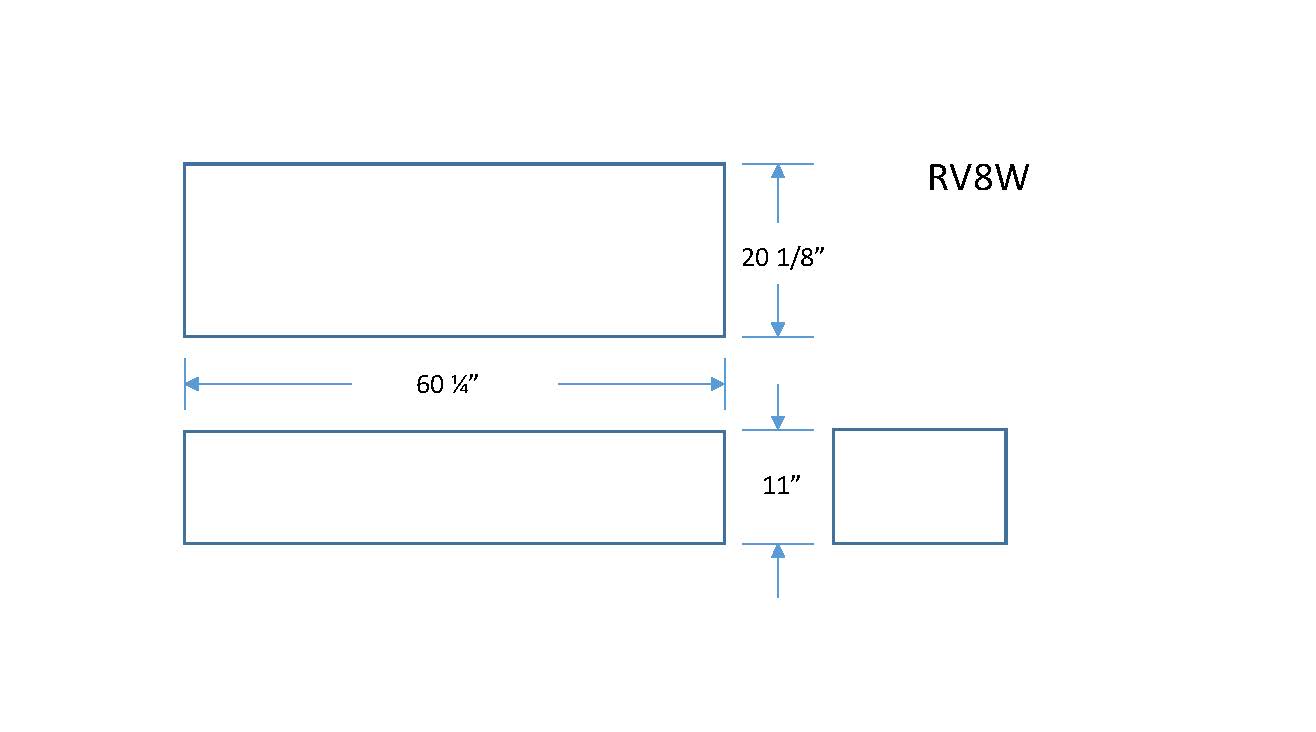

Technical drawing: download the Ronco Plastics RV8W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
