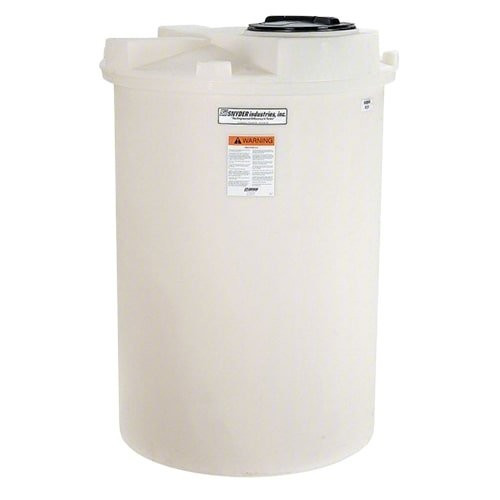

Snyder Industries 120 Gallon Sodium Hypochlorite (UV) Double Wall Tank

Where it goes

This is the small contained tank for a hypochlorite feed: a well house, a livestock water system, a small community system, a disinfection point on a wastewater line. The name is Snyder's; the information we hold gives no concentration limit, so tell us the strength you buy and we will confirm it is the right tank before you order. The opaque wall keeps light off the contents, which is the reason to choose this version over a natural white one. The 120 F limit means ambient storage; keep it away from heaters and out of direct afternoon sun through a window.

At 51 inches tall the lid is at waist to chest height, which makes refilling from carboys or a drum pump easy. The 34 inch body is close to the clear width of a standard door, so measure the opening. Set it on a flat, level base that can carry about 1,902 lb at the full rating; our concrete pad sizing guide for above ground polyethylene tanks covers the framework.

A contained tank holds less usable liquid than its nameplate once freeboard and expansion are allowed for; the Snyder double wall freeboard sizing guide works it through. If your site keeps a spill prevention plan, read our walkthrough of Snyder double wall tanks under 40 CFR 112. The tank sizing calculator and tank sizing guide match the volume to your feed rate.

Openings, and what to confirm before you buy

1. Lid. A 14 inch threaded vented lid: fill point, vent and the way in for a suction wand or foot valve. Hypochlorite gives off gas as it ages, so keep the vent clear.
2. Outlet. No outlet or fitting is listed on this product. Most small feeds draw through the top; if you want a bottom outlet, tell us the size and we will confirm with Snyder what this part number carries.
3. The liquid. Give us the product and strength and check it in our chemical compatibility guide; tubing and gaskets have to suit it too.
4. The space between the walls. No leak detection is listed with the tank. Check it on a written schedule. Snyder's drawing is linked under Technical Drawing on this page.

Other 120 gallon versions, and the sizes either side

The 120 gallon double wall size also comes as the 120 gallon XLPE double wall tank 5700102N42, the 120 gallon XLPE black double wall tank 5700102N48 and the 120 gallon HDPE black double wall tank 5700102N51; each page states its own rating. Smaller, in a square body: the 80 gallon XLPE black square double wall tank 5991002N48. Larger: the 150 gallon sulfuric acid double wall tank 5710102N30.

Shipping and receiving

The tank ships LTL at freight class 250 from Snyder's Marked Tree, Arkansas plant, 34 by 34 by 51 inches on a pallet at 100 lb. At the tailgate, check the bill of lading against 5700102N52, look over the outer wall and the lid threads, and note any damage before you sign. Fill it with water first to check the base and the lid, then drain and dry it before the hypochlorite goes in.

Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
