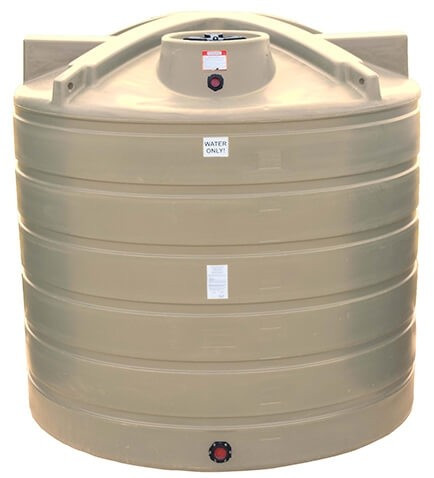

The Enduraplas 2000 Gallon Beige Vertical Water Storage Tank (SKU TLV02000BE) is a polyethylene vertical tank built for above-ground bulk water storage. At 90 inches in diameter and 93 inches tall, it holds a true 2,000 gallons inside a compact 90 x 90 inch footprint - a practical fit for farms, rural homesteads, fire-water reserves, irrigation supply, and industrial process water.
Key specs at a glance
Capacity 2,000 gallons. Dimensions 90 inch diameter x 93 inch height. Footprint 90 x 90 inches. Filled-with-water weight roughly 16,680 lb. Maximum rated contents weight 18,348 lb. Shell material polyethylene, beige. Specific gravity rating 1.1, so it carries fresh water with margin and also handles slightly heavier-than-water liquids up to 1.1 SG - the rating leaves roughly 668 lb of headroom over a full water load.
Will it work for your site?
This is a 2,000 gallon vertical water storage tank measuring 90 inches wide by 93 inches high. Plan your pad and supports around the loaded weight, not the empty shell: filled with water this tank carries roughly 16,680 lb, and its maximum rated contents weight is 18,348 lb. That load rides on a 90.0 x 90.0 inch footprint, so the ground underneath has to be level, fully supporting, and rated for the bearing pressure. Fitting configuration is confirmed at quote - call 866-418-1777 and we will spec the inlet, outlet, and vent for your install. If you are still confirming whether 2,000 gallons is the right size for your draw-down and refill cycle, run the numbers with our Tank Sizing Calculator and the Tank Sizing Guide before you commit.
Pad, install, and the mistake to avoid
The most common and most expensive mistake on a vertical tank this size is the foundation. More than 18,000 lb of rated load on a 90 x 90 inch base will find any soft spot, slope, or void under the tank and translate it into stress on the wall. Build a flat, continuous, full-contact pad sized for the load - our guide on concrete pad sizing for above-ground polyethylene tanks walks through the ACI 360R-10 framework and where the ACI 318 boundary applies. Once it is set and plumbed, do a staged water fill and watch for pad settlement and fitting leaks before you put it into service; the hydrostatic test methodology for new-install tank acceptance covers the water-fill discipline and hold-time math.
Common uses
This vertical storage tank suits a range of water storage jobs - bulk water storage, irrigation buffering, and emergency reserve among them. If you are sizing a rural or remote fire-water reserve, our guide on fire-water reservoir tank design for rural and remote sites covers NFPA 22 sizing discipline and freeze protection for cold climates. For grey-water, rainwater, or HVAC condensate aggregation, see our breakdown of industrial water reuse tank topology.
Freight
This tank ships LTL freight from the Enduraplas plant in Converse, TX, with the cost quoted live to your ZIP code - there is no flat shipping number on a tank this size. Because it leaves a single central-Texas plant, your freight cost scales with distance from Converse, which is exactly why we quote to your ZIP rather than post a flat rate. Get your exact number with our Freight Cost Estimator, or call us at 866-418-1777 and we will quote the freight, confirm lead time, and help you finalize the order.
