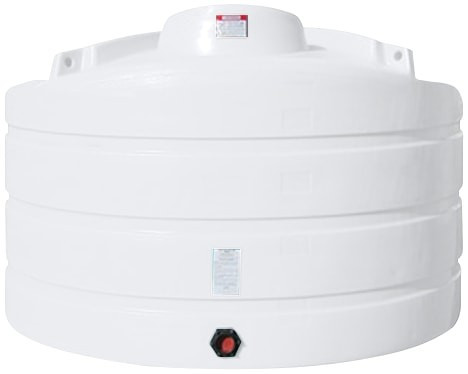

The Enduraplas 2020 Gallon White Vertical Storage Tank is a large-capacity vertical poly tank built for bulk water and high-density liquid storage. It holds a true 2020 gallons, stands 73 inches tall, and sits on a wide 110 x 110 inch footprint molded from natural white polyethylene. It carries a 1.9 specific gravity rating, meaning it is engineered to hold contents substantially heavier than water. Before anything else, note the geometry: this is a low-profile vertical tank that is wider (110 inches) than it is tall (73 inches), so plan your pad, access path, and rigging accordingly.
Will it work for your site?
Because the diameter is roughly 9 feet 2 inches and the height is only 73 inches, the limiting factor on delivery is usually gate, yard, and door width plus crane or forklift reach across that span, not overhead clearance. Verify you have a 110-inch-plus wide access path before ordering. Filled with plain water, the contents alone weigh roughly 16,847 pounds, and the tank is rated to carry up to 32,009 pounds of contents at its 1.9 specific gravity limit. The full-water figure tells you what your foundation must support for ordinary water service; the max rated contents weight is the structural ceiling for heavier liquids. Use the Tank Sizing Calculator and the Tank Sizing Guide to confirm this 2020-gallon size matches your draw and refill cycle. Fitting size, outlet location, and whether a gasket or bulkhead kit is included are not listed here, so verify those on the technical drawing on this page or by phone before you commit.
Foundation and freight
A tank this heavy needs a level, fully supporting base. At nearly 17,000 pounds full of water, and far more with a denser liquid, the entire footprint must bear evenly on a rated pad with no voids or overhang. Our guide on concrete pad sizing for above-ground polyethylene tanks walks through the ACI 360R-10 framework for getting that base right. This tank ships from a single plant in Neche, ND, on the northern border, so LTL freight cost is driven by distance to your site, another reason to get a live number early. If you are feeding a rural fire-protection reservoir, our write-up on fire-water reservoir tank design and NFPA 22 sizing covers cold-climate freeze protection and how a poly tank fits the private fire stack. For grey-water, rainwater, or HVAC condensate aggregation, see our industrial water reuse tank topology guide.
The mistake to avoid
The biggest error on a tank this size is under-building the foundation for water weight alone. The 1.9 specific gravity rating means this tank can structurally serve liquids up to roughly 1.9 times the density of water, pushing rated contents to 32,009 pounds. If you intend to store anything heavier than plain water, design the pad and any anchoring for that higher loaded weight, not the 16,847-pound water figure. Keep in mind that the 1.9 rating is a structural rating only: this is a polyethylene water and storage tank, and chemical compatibility between the resin and your specific liquid is a separate question with no chemical-resistance data listed here, so confirm resin suitability before any non-water service.
This 2020-gallon Enduraplas vertical storage tank ships LTL freight from the Enduraplas plant in Neche, ND, with freight quoted live to your ZIP. Get your number instantly with the Freight Cost Estimator, or call us at 866-418-1777 to confirm sizing, fittings, and delivery for your white vertical storage tank.
