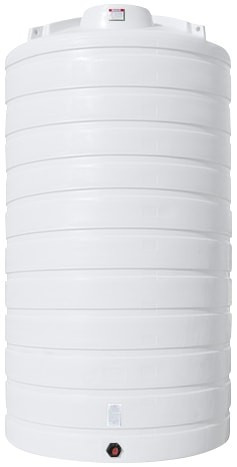

The Enduraplas 5200 Gallon White Vertical Storage Tank (SKU THV05200W) is a large-volume polyethylene vertical tank for bulk water storage where a single tall footprint has to hold serious volume. It stands 164 inches (about 13.7 ft) tall on a 100-inch (8.3 ft) diameter base and holds 5,200 gallons. If you are building a storage train, a fire-water reserve, or a bulk fresh-water tank, this is the format that gets you there without a farm of smaller vessels.
Will it work for your site?
The tank is molded from natural white polyethylene. It carries a 1.9 specific-gravity wall rating, which on a fresh-water tank is pure structural headroom: the shell is built to hold contents up to 1.9 times the weight of water, so for potable and plain water service the wall is conservatively over-strength. Filled with water it carries about 43,368 lb of contents (roughly 21.7 tons); at its full rated 1.9 SG the wall is engineered for up to 82,399 lb (about 41.2 tons). The tall-format geometry is what makes it space-efficient, but check overhead clearance for fill and inspection against the 164-inch height before you site it. Fitting and outlet configuration is confirmed per unit, so call 866-418-1777 for the current fitting schedule before you spec your plumbing tie-in. For larger reuse programs, our industrial water-reuse tank topology guide covers how a vessel this size fits a grey-water, rainwater, or condensate storage train. Not sure this is the right capacity? Run it through our Tank Sizing Calculator and Tank Sizing Guide first.
How it ships
This white vertical storage tank ships LTL freight from Converse, TX, quoted live to your ZIP. At 164 inches tall and 100 inches across it moves as an oversized freight item, so get a real number before you plan the install. Use the Freight Cost Estimator for a quote to your delivery ZIP, or call 866-418-1777 and we will work it out with you.
The mistake to avoid
The biggest error on a tank this size is under-building the foundation. That 1.9 SG rating describes the shell's strength, not permission to skip a level, load-rated pad. Concentrated over the 100 x 100 inch footprint, 21.7 tons of full water weight puts an enormous point load on the slab, and a pad that settles or cracks will stress the tank wall unevenly. Set it on a full, flat, engineered base. Our concrete pad sizing guide walks through the ACI 360R-10 framework for exactly this above-ground load. If the water feeds a rural fire-protection reserve, our fire-water reservoir design guide covers NFPA 22 sizing and cold-climate freeze protection. Review the technical drawing on this page for dimensional detail.
Ready to move? Get your delivery number from the Freight Cost Estimator or call 866-418-1777. Freight on this vertical storage tank is quoted live to your ZIP and shipped LTL from Converse, TX.
