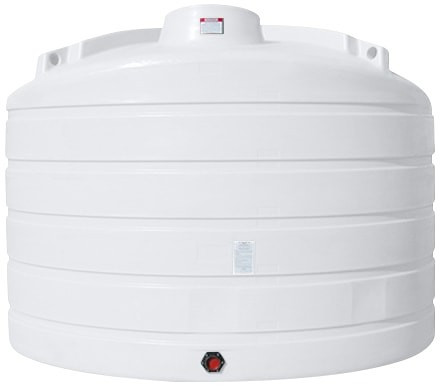

The Enduraplas 6011 Gallon White Vertical Storage Tank is a large-volume polyethylene bulk vertical storage tank built for high-demand water storage. It stands 110 inches tall on a required 144 x 144 inch pad footprint, holds a rated 6,011 gallons, and comes in natural white polyethylene. This is a heavy, stationary tank sized for fire-water reserves, agricultural supply, municipal and industrial process water, and rainwater aggregation where a smaller vertical tank runs dry too fast.
Will it work for your site?
Confirm three things before you order. First, capacity and weight: at full water the contents alone weigh about 50,132 lb, so you need to plan the base for that load. Second, footprint and headroom: reserve a level 12 ft x 12 ft base for the 144 x 144 inch footprint, and remember the tank is 110 inches tall (roughly 9 ft 2 in) before you add clearance above it for top-fill and venting access under any canopy or building line. Third, the pad. A tank this size must sit on a properly sized, level foundation across the full footprint. Walk the numbers with our Tank Sizing Calculator and Tank Sizing Guide, and review our concrete pad sizing framework before you pour.
Rated to 1.9 specific gravity
This shell carries a 1.9 specific-gravity rating and a maximum rated contents weight near 95,250 lb, so it is engineered for liquids far denser than water, not just plain water at roughly 50,132 lb full. For a straight white water storage tank that means real headroom, and it also means the same tank handles heavier fluids up to that 95,250 lb ceiling if your program later shifts to denser contents. That density rating is a genuine reason to choose this vertical storage tank over a lighter-rated water-only shell.
The mistake to avoid
The most common error on a tank this large is under-building the base. A vertical storage tank of this size concentrates enormous weight over its footprint when full, and an uneven or undersized pad leads to shell stress and settling. Size the pad to the loaded weight, not the empty tank. We do not pre-set your fitting and outlet layout on this SKU, so tell us your plumbing and overflow requirements when you request a quote and we will confirm the configuration. If this tank is going into a rural or remote fire-protection stack, our fire-water reservoir design guide covers NFPA 22 sizing and cold-climate freeze protection, and reuse projects should see our water-reuse tank topology guide.
This Enduraplas white vertical storage tank ships LTL freight from the nearest of two plants, Converse, TX or Neche, ND, with freight quoted live to your ZIP. Southern and central destinations typically pull from Converse, TX, while northern-plains ZIPs draw from Neche, ND, and the nearest plant sets your LTL quote. Get a freight quote in seconds with our Freight Cost Estimator, or call 866-418-1777 and we will help you spec the tank, plan the pad, and schedule delivery.
