A 2600 gallon low profile underground tank for a shallow bury
The Norwesco 2600 gallon multi-use underground tank, part number 43770, is a one piece polyethylene tank built to be buried where you cannot dig deep: 155 inches long, 99 inches wide and only 51 inches tall, white, weighing 1005 lb empty. The low profile is the reason to choose it over a taller tank of the same volume: rock, a high water table or a shallow frost line all limit how deep the hole can go, and this tank keeps the whole excavation shallow. Multi-use means it serves as a cistern, a rainwater tank or a septic or holding tank, depending on the plumbing and the permit. It has one manhole with a 20 inch manway cover, and Norwesco offers a full set of risers and extensions for it, listed below. Norwesco rates it for liquids up to 1.9 specific gravity and a service limit of 130 F, and covers it with a 3 year limited full replacement warranty. Full, it holds 21680 lb of water.
Shallow bedrock or a high water table? Call 866-418-1777 with the site conditions, or request a written quote; the tank moves as an oversize load and we quote the lane for you.
What it is for
A 2600 gallon buried tank is a household cistern on hauled or harvested water, a rainwater store that keeps the collection out of sight and out of the sun, or a septic or holding tank for a house or a cabin. Underground, the water stays cool and dark, which stops algae and keeps it from freezing where the cover allows. For a rural fire reserve it is a supplement, not the whole answer; our guide to fire water reservoir design for rural and remote sites explains the sizing. If your permit asks for an IAPMO or CSA septic listing, read our note on Norwesco's IAPMO and CSA B66 septic approvals and tell us the jurisdiction; we confirm what Norwesco holds for this model before you order. For the volume, use the tank sizing calculator and tank sizing guide.
What to check before you buy
- The hole. The tank is 155 inches long, 99 wide and 51 tall before the riser. Bed and backfill it to Norwesco's installation instructions: a polyethylene tank is backfilled with water in it, in lifts, so the wall is supported from both sides as the hole closes. A high water table is the case where the instructions matter most, because an empty tank in wet ground wants to float.
- Getting the cover to grade. One manhole, 20 inch cover. Norwesco's options for it, one each: the 6 inch extension N-63832, the 15 inch extension N-63833, the 24 inch extension N-63834, the 23 inch riser with a 12 inch lid N-63831, the 36 inch riser with a 6 inch lid N-63830, and a replacement 20 inch lid N-63672. Decide the burial depth, then tell us which one; it ships with the tank.
- Traffic. Tell us if anything heavier than a lawn mower will cross the tank. Burial depth, cover and traffic loading are decided together, and Norwesco's instructions set the limits.
- Inlets, outlets and vent. The tank is supplied with the manway cover; the connections are cut and fitted on site to suit your plumbing. Norwesco's drawing, linked under Technical Drawing on this page, gives the manhole position and the rib layout.
Sizes nearby

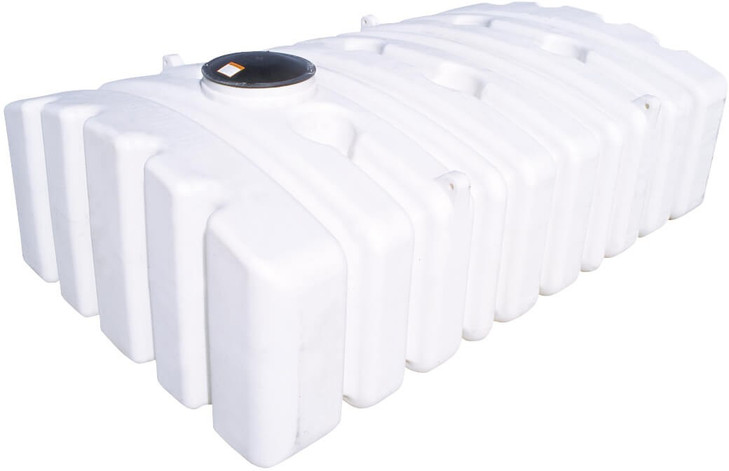

Either side of it in the same family: the 2500 gallon multi-use underground tank and the 2650 gallon multi-use underground tank. The differences between the three are shape and burial depth more than volume, so compare the drawings against your excavation before choosing.
Shipping and receiving
The tank ships from Norwesco's St. Bonifacius, Minnesota plant as an oversize load, freight class OVS, 155 by 99 by 51 inches and 1005 lb; it travels on a flatbed and needs a machine at the site to lift it off and set it in the hole. The listed price is before freight. Start with the freight cost estimator, then call us for the oversize lane, because a load wider than a truck bed is quoted by route, not by class alone. Have the excavation ready before the truck arrives. At delivery, check the part number against 43770 on the bill of lading and look over the whole tank for transit damage before the driver leaves.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43770.
See this tank
Product video. Watch the Norwesco 2600 Gallon Plastic Multi-Use Underground Liquid Storage Tank video (80 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
