The fitting planner on this page is half the product. The RV59W - a 55-gallon light-duty fresh tank, 74 lb molded - ships with its fittings already installed to your layout: click them into place on the planner or print the drawing below and mark your fitting locations by hand, and Ronco Plastics spin-welds or threads them in at those exact spots before the tank leaves the plant. The tank you unbox is the tank your plumbing expects.
The shell is FDA-compliant natural polyethylene in Ronco's light-duty potable spec, translucent so the water level shows without instruments, molded in one piece with no seams - the construction Ronco has refined in Tustin, California since 1974.

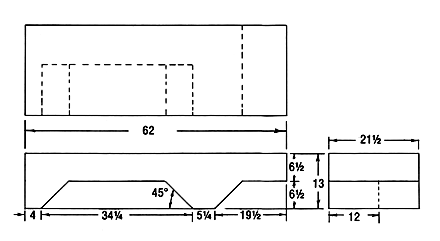

Fifty-five gallons weighs about 459 lb full, and it is a capacity Ronco molds in several shapes: the 55-gallon RV48W at 40 x 24 x 14 inches publishes its footprint, while the 55-gallon RV28W and the 55-gallon RV32W carry theirs on their drawings. All of them live under RV water tanks.
OneSource Plastics is an authorized Ronco Plastics dealer.

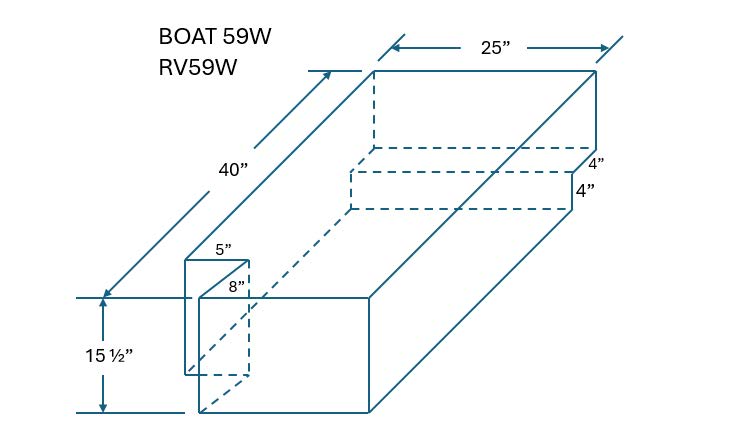

Technical drawing: download the Ronco Plastics RV59W dimensional drawing - print it to plan your install and mark exactly where you want fittings located; Ronco installs spin-weld or threaded fittings to your marked spec.
Specifications
| Capacity | 55 Gallons |
|---|---|
| Material | Low Density Linear Polyethylene |
| Certifications | FDA Approved |
| Ship Weight | 74 lb |
| Ship Dimensions | 45" L x 20" W x 16" H (crated) |
Freight
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
