Snyder Industries 130 Gallon Heavy Duty Vertical Storage Tank

1009500 against 1007300: same circle, two inches, a lid and a plant

Put the two 130s side by side and the difference is small and decisive. The 1007300C26 is the same natural white 130 on the same 29 inch circle at 51 inches, molded in Merced, California, with no lid field on its sheet; this 1009500C26 is 49 inches tall, four feet one inch, with an 8 inch lid on its sheet, molded in Lincoln. A site east of the Rockies gets a shorter freight lane from Lincoln; a stand under a shelf gains two inches; and a specification that wants a stated lid opening gets one. The 1007300 family also carries the black 1007300C34 for a liquid that light spoils and the cross-linked 1007300N42 by its name, each rated as its own sheet says; when the black wall or the cross-linked resin is the requirement, the taller shell is where it lives. When it is not, this tank is the one. Full at the rating it puts 2,060 pounds, a ton, on a 29 inch circle, so a slab or a rated steel stand carries it, flat and level so the tank does not rock on its fitting, with a tray or berm sized to the tank where the liquid is regulated; the concrete pad sizing guide is written for tanks that weigh tons, and its full-contact rule is what carries over. Four feet of tank on a 29 inch base is strapped to the wall before the first fill. Natural polyethylene passes light, so the level reads by eye and the liquid sees the sun. Check 130 gallons against the dose rate and the refill interval in the tank sizing calculator, and take the reserve and the warm-weather headspace from the tank sizing guide.

Both 130 shells, the low 120 and the 150

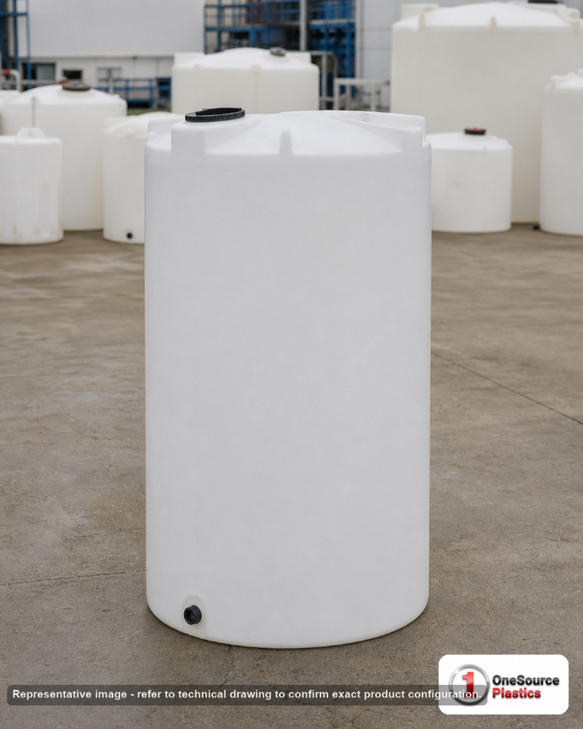

The three 1007300 rows are the other 130 in three walls, each rated on its own page. The 1540200N51 lays 120 gallons down to 39 inches on a 32 inch circle in a black wall at this tank's own 45 pounds, which the sheet gives and we print, for a bench with a shelf close above. The 1012800C26 stands 150 gallons at 59 inches on a 30 inch circle, the next step up when 130 gallons runs out between refills.

Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.

An 8 inch lid on a four foot tank

• Vent and fill: the 8 inch lid is the fill opening and the vent. A 130 gallon tank fills from a drum pump, a tote or a hose, and the lid opening passes the air a fill at that rate displaces; on draw-down the lid must breathe or the pump pulls a vacuum, so it sits loose enough to pass air and tight enough to keep dust and rain out. Put the hose end below the rim so a dense liquid does not fall four feet and beat the headspace band.
• Headspace: stop at the shoulder. The band above the liquid line is the one vapor works on; through a natural wall it can be seen from outside, and it gets a look every time the lid comes off.
• Outlet: 1 inch polypropylene female NPT bulkhead fitting at the base. Name the liquid at order and the fitting, gasket and bolting are matched to it, with a flexible connector to hard pipe and the valve supported on the stand.
• Service limit: 120 F / 48 C.

Four feet of head over a 1 inch outlet gravity-feeds a metering pump or a transfer line; set the pump inlet below the outlet so it runs flooded to the last inch, and fit a low-level float so it never pumps air. A rigid line bolted straight to the bulkhead puts every bit of pipe movement into the wall, so the connector is flexible and the valve sits on the stand. Keep the lid on, the chemical's name on the wall, and the strap tight. A tank this size freezes through in a cold night outdoors, so it lives indoors, or the valve and line are traced and the tank is drained before a hard cold.

Feed tanks under a low shelf

A chemical feed tank beside a metering pump in a water plant's chemical room, a fertilizer stock tank at a greenhouse, a rinse or process tank in a shop, and the dose tank a reuse system keeps between its storage stages; the industrial water reuse tank topology article shows where a tank of this size sits in that train. It holds water without complaint, but a fire reserve is a different tank at a different size; the fire-water reservoir design guide explains what that reserve needs.

Palletized from Lincoln at class 300

The 1009500C26 ships from Lincoln, Nebraska as freight at class 300 as the sheet lists it; at 29 inches across and 49 inches tall it rides on a pallet inside the trailer, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. Two people carry 45 pounds by the body, never by the fitting, and it goes through a standard door standing up. Fill it with water to the shoulder once and hold it, watching the base fitting for a weep, then drain and dry it before the chemical goes in. Measure the shelf before the tank ships, not after; the two inches this shell saves are the whole reason to have chosen it. A photo of the tank on its pad, full, on day one is worth keeping; it is the baseline every later inspection is compared against.
