6,900 gallons in black, the 1.9 specific gravity one

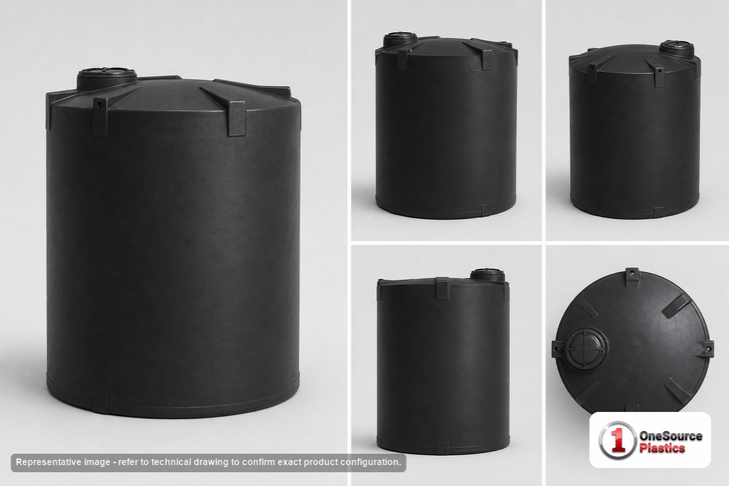

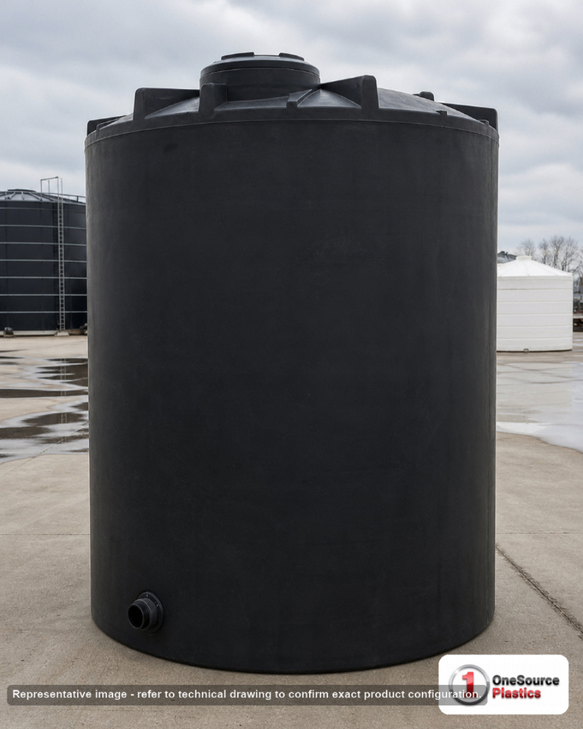

The Snyder 7140000C34 is a black polyethylene vertical storage tank, 120 inches across and 153 inches tall, holding 6,900 gallons at 1,300 pounds. Snyder lists two black tanks in this shell, and the difference is the wall: this one is rated on its sheet for a specific gravity of 1.9, or 109,337 pounds of contents against 57,546 for water, the wall for concentrated acid, ferric and the heavy brines at strength, where the C37-BLACK beside it carries the general-grade rating on its own sheet. A tanker and a third under a black wall that keeps light off it, with the 18 inch threaded, vented manway at nearly thirteen feet. A 3 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Lincoln, Nebraska or Philippi, West Virginia.
Engineer on the job? Request a written quote with the spec attached, or get freight to your ZIP and add to cart above; 866-418-1777 answers the technical questions.
Two black 6,900s, one wall to pick
A water wall is for water; the heaviest wall is for concentrated acid; and when a black tank is bought for a chemical rather than for water in the sun, this is the one, because the 1.9 rating is what the dense liquids need. Full at the rating it puts 109,337 pounds on a 120 inch circle: a slab engineered to the concrete pad sizing guide and in full contact with the floor, with a berm sized to the tank around it, with the empty tank strapped against wind before the first fill, because thirteen feet of empty polyethylene on a ten foot base is a sail. Black runs warmer in the sun than white, which argues for shade if the chemical must stay cool, and it hides the level, so a sender read at the ground is the gauge.Use the tank sizing calculator to confirm the volume against feed rate and delivery interval, then the tank sizing guide for the reserve and the freeboard a heavy liquid needs when it warms.
The 120 x 153 inch tank in its grades, and the 6,600 and 7,000 beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 7140000C34 (this tank, black, 1.9 SG) | 6,900 | 120 x 153 in | 1,300 lb |
| 7140000C37-BLACK (black) | 6,900 | 120 x 153 in | 1,300 lb |
| 7140000C26 (white) | 6,900 | 120 x 153 in | 1,300 lb |
| 5300400N40 (tall) | 6,600 | 120 x 158 in | 1,900 lb |
| 5300700N40 (low) | 7,000 | 142 x 122 in | 1,400 lb |
The 5300400N40 stands 6,600 gallons on this base five inches taller in the other chemical wall, and the 5300700N40 lays 7,000 gallons down to 122 inches on a 142 inch base for a lower roof.
Height or floor the limit? The table has both shapes; freight to your ZIP is quoted on each row, or call 866-418-1777 with the site.
Bulkhead, vent and manway
- Outlet: 3 inch polypropylene female NPT bulkhead fitting, at the base; tell us the liquid when ordering and the fitting is matched to it, with a flanged transition, a flexible connector to hard pipe, and the valve supported off the pad in the material the chemical calls for.
- Access: 18 inch threaded, vented manway, 153 inches up; a platform with a rail for anyone who opens it. Fill down a dip tube, not over the rim; run the vent outside on a chemical that fumes; and size that vent to the truck's pump.
- Service limit: 120 F / 48 C.
Nearly thirteen feet of liquid above a 3 inch outlet is a strong flooded suction, and the outlet drains a full tank in a working shift; mount the pump below the outlet so it primes by gravity, and a low-level float shuts it off before it runs dry. Keep the manway closed against vapor loss, label the one chemical the tank holds, and inspect the headspace wall from the manway with a light. Cold climates: heat-trace or insulate the outlet valve and the first pipe run, and stop worrying about the body, which ices from the top down without harm.
Chemical duty at 6,900
Ferric and other dense coagulants at a water plant, caustic or acid at an industrial plant, brine at a food plant, and a fertilizer solution tank at a co-op where the liquid stands in the sun. This is a chemical wall, not the tank the fire-water reservoir design guide describes for a fire reserve, even though water is well within its rating. Reuse systems dose chemical between storage stages; the industrial water reuse tank topology article maps where this size sits.
From Lincoln or Philippi
The 7140000C34 ships from Lincoln, Nebraska or Philippi, West Virginia, whichever is nearer, as freight at class 300 as the sheet lists it; at 120 inches across and 153 long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 1,300 pounds up with straps under the body, never through the manway. Fill it with water to the manway once and hold it, watching the pad edge and the outlet fitting, then drain and dry before the chemical goes in, and the log takes the date and strength of every load after that. The vent screen is the cheapest part on the tank and the one that saves it; look at it every time the manway opens.
Freight and documents
Ships from: Lincoln, NE; Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 7140000C34.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
